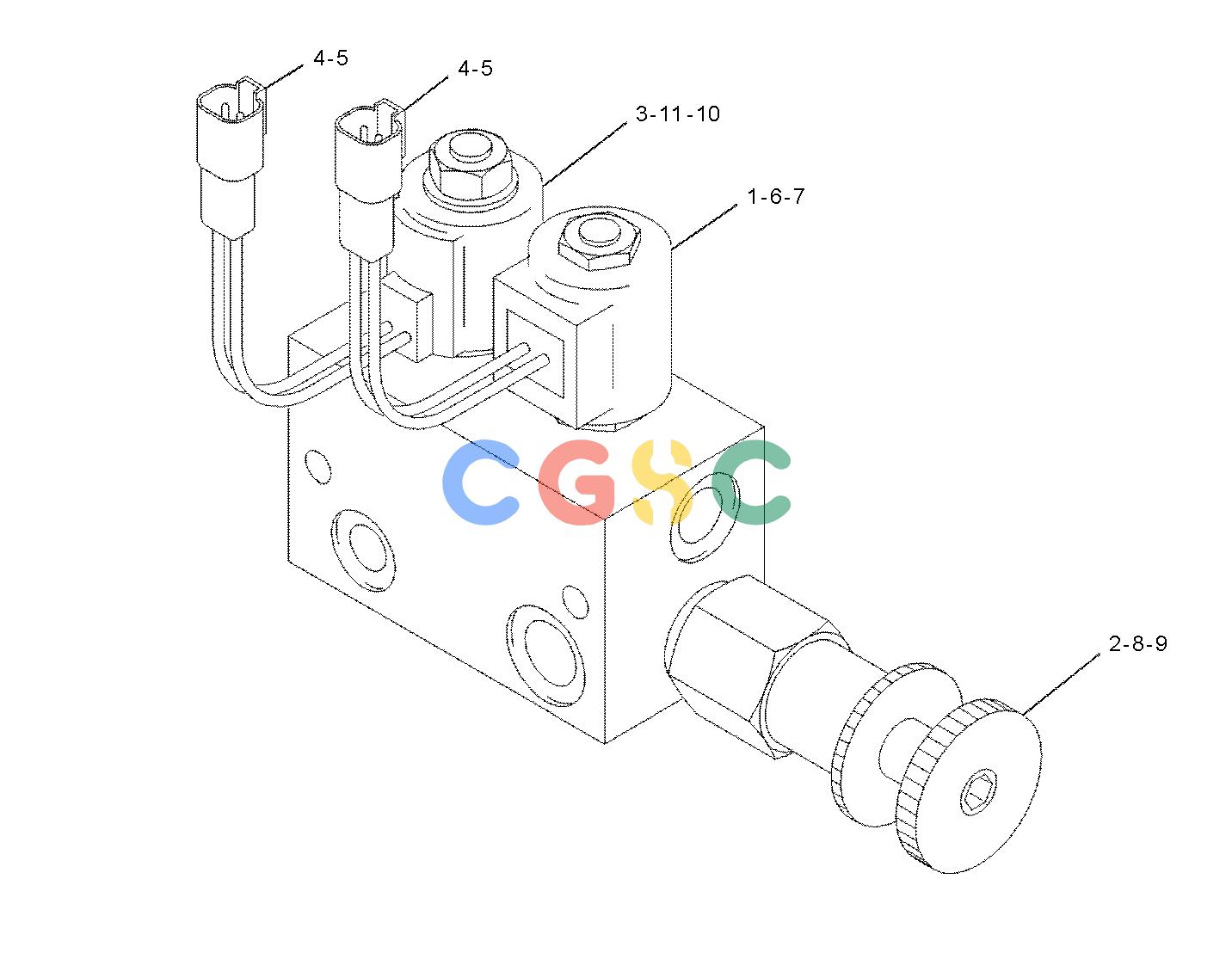

卡特零件查询（BG-225C） 132-7429: VALVE GP-MANIFOLD
广数供应链运营团队, 16 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 135-2492 | [1] | VALVE-SOLENOID | |
| 2. | 135-2493 | [1] | VALVE-RELIEF(SCREED COUNTERBALANCE) | |
| 3. | 135-2494 | [1] | VALVE-SOLENOID | |
| 4. | 102-8802 | [4] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 164-5763 | [1] | COIL | |
| 7. | 165-4570 | [1] | KIT-SEAL | |
| 8. | 165-4571 | [1] | KIT-SEAL | |
| 9. | 165-4573 | [1] | KIT-KNOB | |
| | | | (INCLUDES KNOBS) |
| 10. | 168-2511 | [1] | KIT-SEAL | |
| | | | (INCLUDES BACKUP RINGS & O-RING SEALS) |
| 11. | 165-4575 | [1] | COIL | |
