卡特零件查询（BG-225C） 152-7576: VALVE GP-PUMP CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
411 次

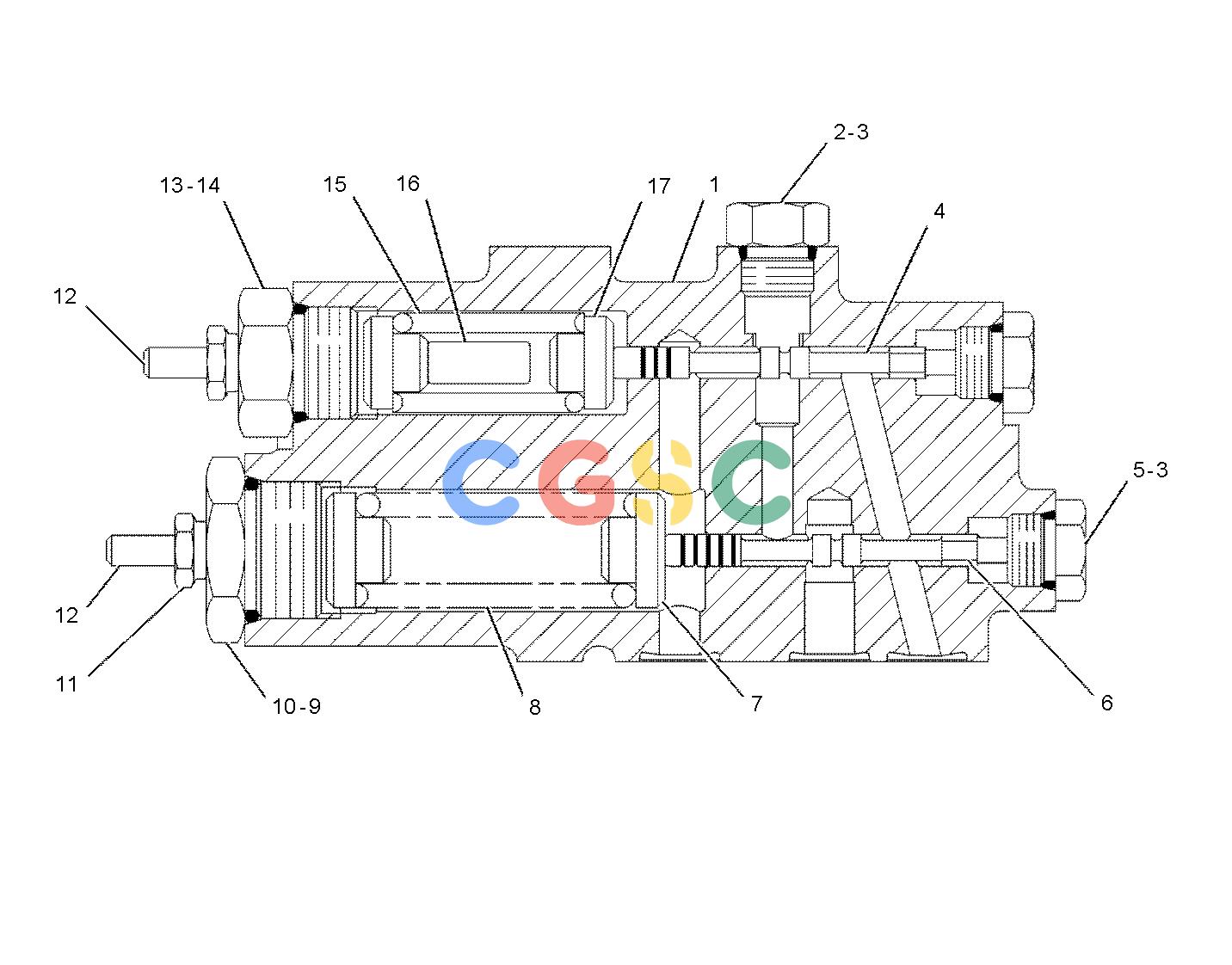

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6E-4229 | [1] | BODY-COMPENSATOR | |
| 2. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 3. | 3J-1907 | [3] | SEAL-O-RING | |
| 4. | 6E-4241 | [1] | SPOOL-MARGIN | |
| 5. | 9T-2186 | [2] | PLUG | |
| 6. | 6E-4239 | [1] | SPOOL-CUTOFF | |
| 7. | 6E-4230 | [2] | GUIDE-SPRING | |
| 8. | 6E-4228 | [1] | SPRING | |
| 9. | 6E-6140 | [1] | PLUG-COMPENSATOR | |
| 10. | 033-6036 | [1] | SEAL-O-RING | |
| 11. | 6E-6141 | [2] | LOCKNUT-SEALING | |
| 12. | 129-7632M | [2] | SETSCREW-SOCKET(M8X1.25X45-MM) | |
| 13. | 6E-6142 | [1] | PLUG-MARGIN | |
| 14. | 033-6027 | [1] | SEAL-O-RING | |
| 15. | 165-1743 | [1] | SPRING | |
| 16. | 6E-4318 | [1] | PIN-SPRING STOP | |
| 17. | 6E-4242 | [2] | GUIDE-SPRING | |
| | M | | METRIC PART |
