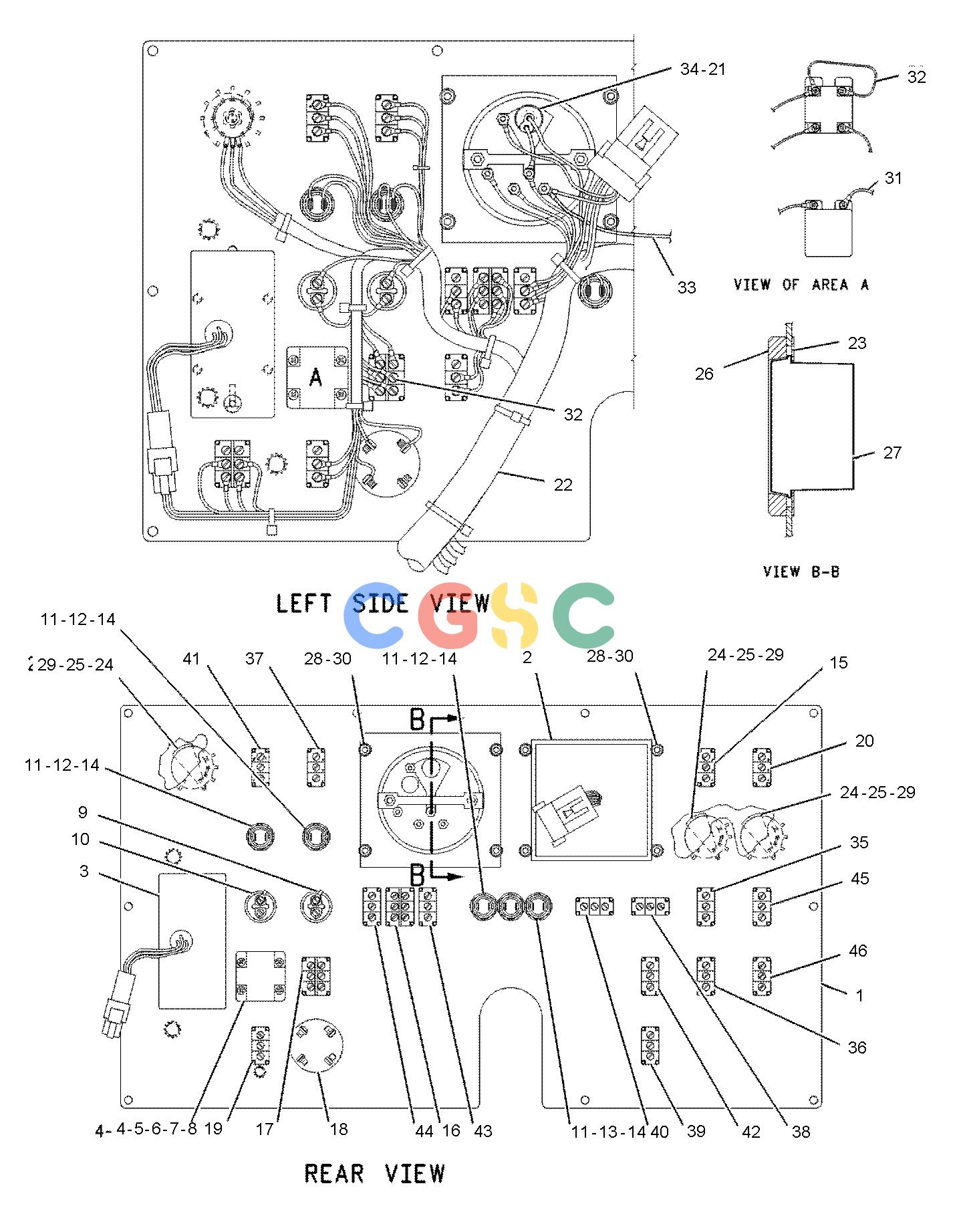

| 1. | 143-9004 | [1] | PANEL-OPERATOR | |
| 2. | 114-0322Y | [1] | GAUGE GP-CLUSTER | |
| 3. | 132-3090Y | [1] | LEVER GP-PROPEL | |
| 4. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(PARK BRAKE) | |
| 5. | 116-5274 | [1] | KNOB(PARKING BRAKE) | |
| 6. | 116-5277 | [2] | BLOCK(CONTACT) | |
| 7. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| 8. | 116-5270 | [1] | LAMP(24-VOLT) | |
| 9. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HEAT) | |
| 10. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | | | (EACH AS INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 11. | 9D-3127 | [5] | BASE AS-INDICATOR LIGHT | |
| | 6V-8367M | [1] | LOCKWASHER(17.88X29.62X1.17-MM THK) | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 12. | 9D-2868 | [4] | LENS-RED | |
| 13. | 9D-2867 | [1] | LENS-AMBER | |
| 14. | 7N-5876 | [5] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 15. | 4D-1836 | [1] | SWITCH-TOGGLE(SCREED CBAL ON/OFF) | |
| 16. | 077-8200 | [1] | SWITCH AS-TOGGLE(ENG RPM/TRACK SPD FPM) | |
| 17. | 077-8200 | [1] | SWITCH AS-TOGGLE(THROTTLE HI/LOW) | |
| 18. | 9G-7641Y | [1] | SWITCH GP-START(ENGINE, KEY) | |
| 19. | 077-4701 | [1] | SWITCH(TRAVEL/PAVE/MANUVER) | |
| 20. | 109-7187 | [1] | SWITCH AS-TOGGLE(SCREED HOIST) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 21. | 141-9182 | [1] | WIRE AS-TACHOMETER | |
| 22. | 138-7087 | [1] | HARNESS AS-OPERATOR CONTROLS | |
| 23. | 118-5832 | [1] | PLATE | |
| 24. | 1P-6509 | [3] | KNOB | |
| 25. | 7C-4550 | [3] | SEAL(ROTATING SHAFT) | |
| 26. | 112-0834 | [1] | PLATE | |
| 27. | 136-8340 | [1] | METER AS | |
| | 3L-8187 | [5] | LOCKWASHER | |
| | 4B-5324 | [5] | WASHER(3.9X9.6X1.2-MM THK) | |
| | 6V-8368 | [5] | NUT(6-32-THD) | |
| | 6V-8377 | [2] | NUT(8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 28. | 9X-8486 | [8] | SCREW-MACHINE(8-32X0.75-IN) | |
| 29. | 145-7883 | [3] | HARNESS AS-PANEL(POTENTIOMETER) | |
| 30. | 6D-5801 | [8] | LOCKNUT(8-32-THD) | |
| 31. | 128-2610 | [1] | WIRE AS | |
| 32. | 117-5983 | [2] | WIRE AS | |
| 33. | 128-2864 | [1] | WIRE AS | |
| 34. | 123-9294 | [1] | LAMP(24-VOLT) | |
| 35. | 8C-9812 | [1] | SWITCH AS-TOGGLE(RH FEED AUTO/MAN OFF) | |
| 36. | 8C-9812 | [1] | SWITCH AS-TOGGLE(RH AUGER AUTO/MAN OFF) | |
| | | | (EACH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 37. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TRUCK HITCH) | |
| 38. | 9G-0011 | [1] | SWITCH AS-TOGGLE(SCREED WIDTH LH IN/OUT) | |
| 39. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER RAISE/LOWER) | |
| 40. | 9G-0011 | [1] | SWITCH AS-TOGGLE(SCREED WIDTH RH IN/OUT) | |
| 41. | 9G-0011 | [1] | SWITCH AS-TOGGLE(HOPPER HOIST) | |
| | | | (EACH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 42. | 4D-1836 | [1] | SWITCH-TOGGLE(SCREED VIB ON/OFF) | |
| 43. | 4D-1836 | [1] | SWITCH-TOGGLE(WORK LIGHTS ON/OFF) | |
| 44. | 4D-1836 | [1] | SWITCH-TOGGLE(HAZARD BEACON ON/OFF) | |
| 45. | 8C-9812 | [1] | SWITCH AS-TOGGLE(LH AUGER AUTO/MAN OFF) | |
| 46. | 8C-9812 | [1] | SWITCH AS-TOGGLE(LH FEED AUTO/MAN OFF) | |
| | | | (EACH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
