卡特零件查询（BG-225C） 140-8379: PLATFORM GP
广数供应链运营团队, 16 02月, 2025，浏览：
943 次

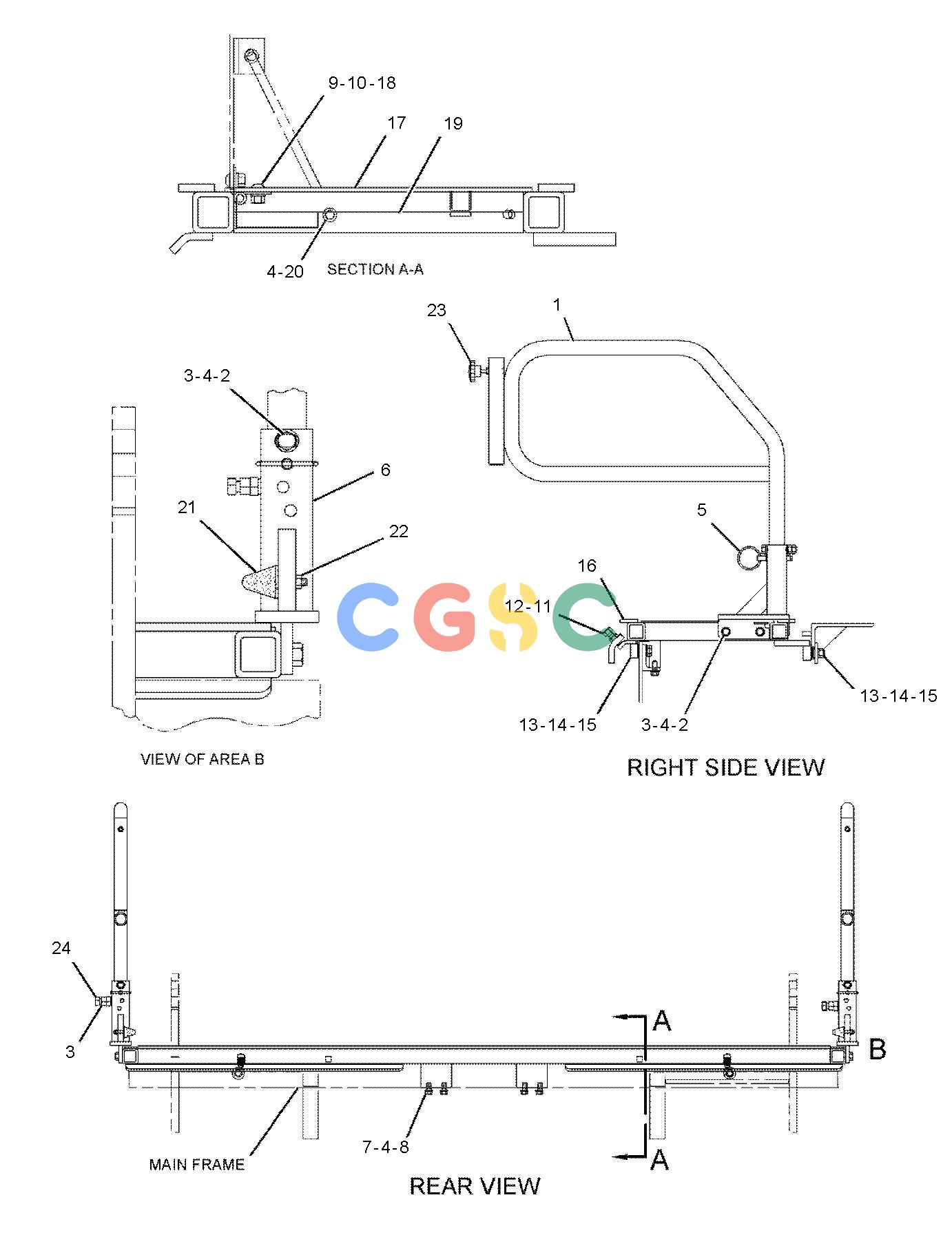

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 112-9211 | [2] | ARMREST AS | |
| | | | (EACH INCLUDES) |
| | 5P-8248 | [1] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 2. | 7X-0328 | [6] | BOLT(1/2-13X3.5-IN) | |
| 3. | 6V-8188 | [10] | NUT(1/2-13-THD) | |
| 4. | 8T-4223 | [13] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 108-2847 | [2] | PIN | |
| 6. | 141-0948 | [2] | SUPPORT AS | |
| 7. | 140-8376 | [2] | BLOCK-STOP | |
| 8. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 9. | 6V-8801 | [6] | NUT(3/8-16-THD) | |
| 10. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 4B-3596 | [2] | SETSCREW-SQUARE HEAD(5/8-11X2-IN) | |
| 12. | 1D-5118 | [2] | NUT-JAM(5/8-11-THD) | |
| 13. | 8T-4122 | [14] | WASHER-HARD(17X32X3.5-MM THK) | |
| 14. | 170-3495 | [4] | BEARING AS | |
| 15. | 6B-6683 | [4] | NUT(5/8-18-THD) | |
| 16. | 141-0895 | [1] | SLIDE AS | |
| | 9G-9154 | [1] | CLIP | |
| 17. | 108-3289 | [1] | PLATE AS | |
| 18. | 6J-0488 | [6] | SCREW-BUTTON HEAD(3/8-16X0.875-IN) | |
| 19. | 108-7756 | [1] | ROD | |
| 20. | 3B-4618 | [1] | PIN-COTTER | |
| 21. | 3W-7412 | [2] | BUMPER-CONICAL | |
| 22. | 6V-8189 | [2] | NUT(5/16-18-THD) | |
| 23. | 1V-5044 | [2] | KNOB | |
| 24. | 4B-3583 | [2] | SETSCREW-SQUARE HEAD(1/2-13X1.25-IN) | |
