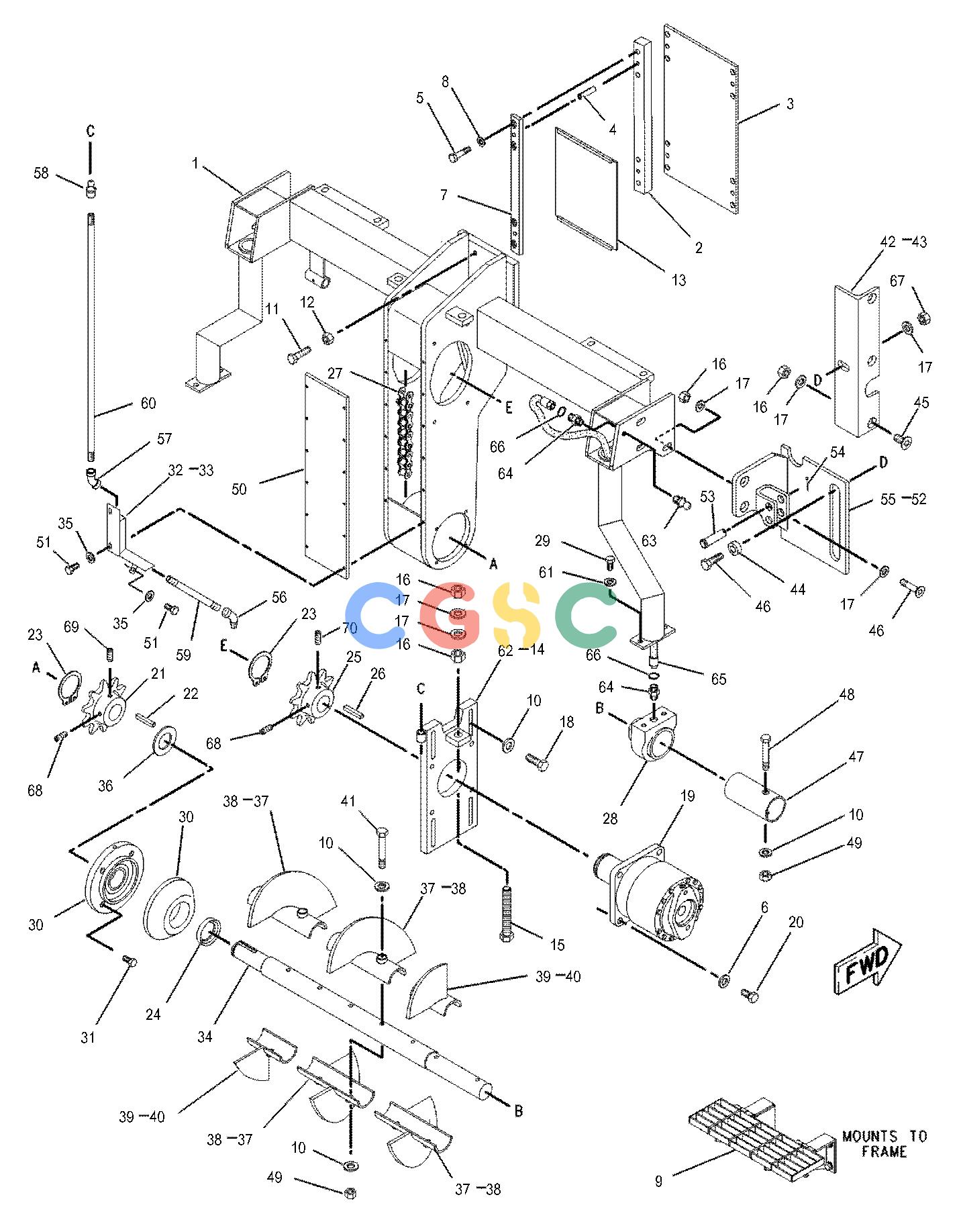

卡特零件查询（BG-225C） 186-3636: CONVEYOR GP-AUGER
广数供应链运营团队, 16 02月, 2025，浏览：
249 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 117-8337 | [1] | SUPPORT AS | |
| 2. | 170-1224 | [2] | BAR | |
| 3. | 103-0155 | [1] | PLATE | |
| 4. | 2K-9062 | [4] | PIN-SPRING | |
| 5. | 8T-9396 | [4] | BOLT(5/8-11X3.25-IN) | |
| 6. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 7. | 170-1225 | [2] | BAR | |
| 8. | 9U-9510 | [4] | PLATE | |
| 9. | 118-7295Y | [1] | STEP GP | |
| 10. | 8T-4223 | [30] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 4B-3596 | [4] | SETSCREW-SQUARE HEAD(5/8-11X2-IN) | |
| 12. | 1D-5118 | [4] | NUT-JAM(5/8-11-THD) | |
| 13. | 103-0157 | [1] | SLIDE AS | |
| 14. | 103-0160 | [1] | SUPPORT AS | |
| | 7E-5639 | [1] | SPACER(13.88X21.34X25-MM THK) | |
| 15. | 103-3579 | [2] | BOLT(3/4-10X6-IN) | |
| 16. | 6V-8182 | [16] | NUT(3/4-10-THD) | |
| 17. | 8T-4994 | [24] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 18. | 8T-8919 | [8] | BOLT(1/2-13X1.75-IN) | |
| 19. | 8I-0866Y | [2] | DRIVE GP-CONVEYOR | |
| 20. | 2P-8454 | [8] | BOLT(5/8-11X1.5-IN) | |
| 21. | 103-3599 | [2] | SPROCKET AS(12-TEETH) | |
| 22. | 136-9390 | [2] | KEY | |
| 23. | 077-9687 | [4] | RING-RETAINING | |
| 24. | 103-3585 | [2] | PLATE | |
| 25. | 103-3582 | [2] | SPROCKET AS(13-TEETH) | |
| 26. | 136-9389 | [2] | KEY | |
| 27. | 8I-0991 | [2] | CHAIN AS-CONVEYOR | |
| | | | (EACH INCLUDES) |
| | 5B-6388 | [1] | LINK-CONNECTING | |
| 28. | 106-9718Y | [2] | BEARING GP-AUGER | |
| 29. | 7J-8902 | [4] | BOLT-12 POINT HEAD(5/8-11X1.5-IN) | |
| 30. | 106-9717Y | [2] | BEARING GP-AUGER | |
| 31. | 3F-7147 | [8] | BOLT(1/2-13X1.5-IN) | |
| 32. | 111-0322 | [1] | GUARD AS | |
| 33. | 111-0323 | [1] | GUARD AS | |
| 34. | 103-3583 | [2] | SHAFT-AUGER | |
| 35. | 5P-1075 | [14] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 36. | 141-5059 | [2] | SPACER(52.6X80X9.5-MM THK) | |
| 37. | 8T-8005 | [4] | SEGMENT-HALF AUGER | |
| 38. | 8T-8006 | [4] | SEGMENT-HALF AUGER | |
| 39. | 8T-8007 | [2] | SEGMENT-QUARTER AUGER | |
| 40. | 8T-8008 | [2] | SEGMENT-QUARTER AUGER | |
| 41. | 7X-0334 | [10] | BOLT(1/2-13X5-IN) | |
| 42. | 120-9511 | [1] | ANGLE(RH) | |
| 43. | 120-9512 | [1] | ANGLE(LH) | |
| 44. | 4F-6568 | [2] | SPACER(0.813X1.5X0.625-IN THK) | |
| 45. | 061-6666 | [6] | BOLT(3/4-10X1.642-IN) | |
| 46. | 8T-8924 | [8] | BOLT(3/4-10X2.5-IN) | |
| 47. | 103-3591 | [2] | PIPE | |
| 48. | 7X-0328 | [2] | BOLT(1/2-13X3.5-IN) | |
| 49. | 6V-8188 | [12] | NUT(1/2-13-THD) | |
| 50. | 103-3596 | [1] | PLATE | |
| 51. | 5M-3062 | [14] | BOLT(3/8-16X0.75-IN) | |
| 52. | 177-9591 | [1] | PLATE AS(LH) | |
| 53. | 173-3651 | [2] | PIN-CLEVIS | |
| 54. | 3B-4629 | [2] | PIN-COTTER | |
| 55. | 177-9590 | [1] | PLATE AS(RH) | |
| 56. | 8L-5008 | [2] | ELBOW-PIPE | |
| 57. | 3B-6493 | [2] | ELBOW | |
| 58. | 5P-9982 | [2] | FITTING-GREASE | |
| 59. | 112-9271 | [2] | NIPPLE-PIPE | |
| 60. | 105-7204 | [2] | NIPPLE-PIPE | |
| 61. | 7X-0588 | [4] | WASHER-HARD(17X27X3.5-MM THK) | |
| 62. | 105-5169 | [1] | SUPPORT AS | |
| | 7E-5639 | [1] | SPACER(13.88X21.34X25-MM THK) | |
| 63. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 64. | 8C-6865 | [4] | ADAPTER | |
| 65. | 9R-4113I | [2] | HOSE AS | |
| 66. | 4J-5477 | [4] | SEAL-O-RING | |
| 67. | 1K-6870 | [2] | LOCKNUT(3/4-10-THD) | |
| 68. | 2H-3906 | [4] | SETSCREW-SOCKET(1/2-13X1-IN) | |
| 69. | 4B-1771 | [2] | SETSCREW(1/2-13X0.75-IN) | |
| 70. | 031-8610 | [2] | SETSCREW-SOCKET(1/2-13X1.25-IN) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
