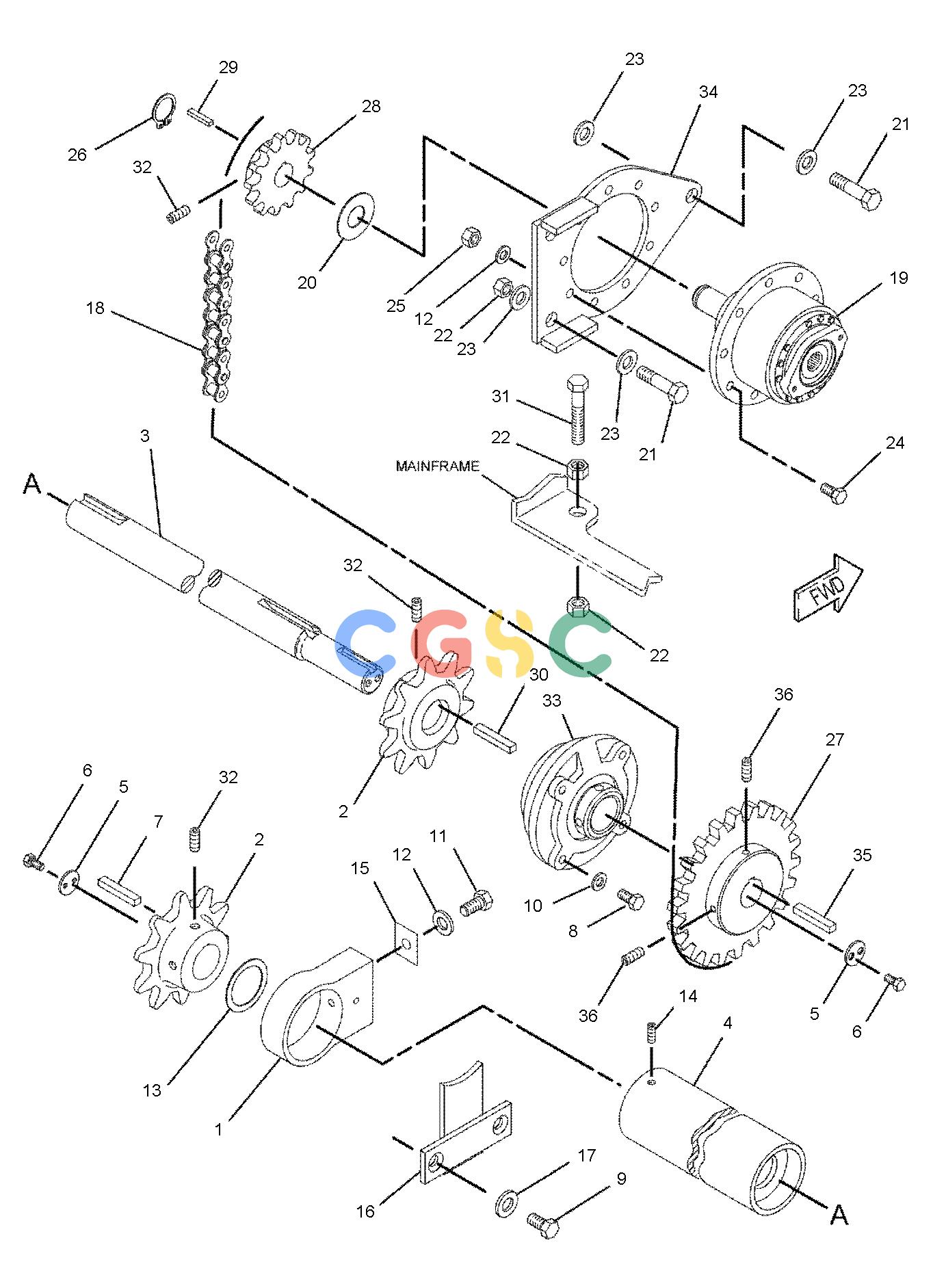

卡特零件查询（BG-225C） 228-5756: SHAFT GP-FEEDER DRIVE
广数供应链运营团队, 16 02月, 2025，浏览：
646 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-0326 | [1] | BEARING | |
| 2. | 8I-0798 | [2] | SPROCKET(10-TEETH) | |
| 3. | 8I-0791 | [1] | SHAFT | |
| 4. | 128-5977 | [1] | SPACER AS | |
| | | [2] | TUBE |
| 5. | 8I-0797 | [2] | CAP | |
| 6. | 030-9621 | [4] | BOLT(3/8-16X1-IN) | |
| 7. | 1D-2328 | [1] | KEY-SQUARE | |
| 8. | 8T-8916 | [4] | BOLT(7/16-14X1.5-IN) | |
| 9. | 8T-9380 | [1] | BOLT(7/16-14X1-IN) | |
| 10. | 8T-5360 | [4] | WASHER(12X22.5X2.5-MM THK) | |
| 11. | 7X-0345 | [2] | BOLT(5/8-11X1.75-IN) | |
| 12. | 8T-4122 | [11] | WASHER-HARD(17X32X3.5-MM THK) | |
| 13. | 129-4543 | [2] | WASHER(65X85.7X1.6-MM THK) | |
| 14. | 9F-9748 | [1] | SETSCREW(3/8-16X1.25-IN)(3/8-16 NC THD) | |
| 15. | 122-6058B | [2] | SHIM(1.2-MM THK) | |
| 16. | 8I-0862 | [1] | COVER AS | |
| 17. | 7X-0546 | [1] | WASHER-HARD(12X25.5X2-MM THK) | |
| 18. | 227-8947 | [1] | CHAIN-ROLLER | |
| | 5B-6410 | [1] | LINK-OFFSET | |
| | 5B-6377 | [1] | LINK-ROLLER | |
| | 5B-6388 | [1] | LINK-CONNECTING | |
| 19. | 8I-0852Y | [1] | DRIVE GP-CONVEYOR(DRAG CONVEYOR) | |
| 20. | 3R-6274 | [1] | COLLAR | |
| 21. | 7X-0405 | [3] | BOLT(1-8X2.75-IN) | |
| 22. | 6V-8190 | [4] | NUT(1-8-THD) | |
| 23. | 8T-5361B | [6] | WASHER-HARD(28X49X5-MM THK) | |
| 24. | 8T-6871 | [9] | BOLT(5/8-11X2.5-IN) | |
| 25. | 7X-0448 | [9] | NUT(5/8-11-THD) | |
| 26. | 8L-9811 | [1] | RING-RETAINING | |
| 27. | 230-3415 | [1] | SPROCKET(22-TEETH) | |
| 28. | 128-4153 | [1] | SPROCKET(13-TEETH) | |
| 29. | 136-9393 | [1] | KEY-SQUARE | |
| 30. | 104-5370 | [1] | KEY-SQUARE | |
| 31. | 3E-8047 | [1] | BOLT(1-8X6-IN) | |
| 32. | 2H-3906 | [6] | SETSCREW-SOCKET(1/2-13X1-IN) | |
| 33. | 101-9030 | [1] | BEARING-FLANGE | |
| 34. | 129-4546 | [1] | PLATE AS-ADJUSTMENT | |
| 35. | 136-9392 | [1] | KEY-SQUARE | |
| 36. | 136-4186 | [2] | SETSCREW(1/2-13X1.5-IN) | |
| | B | | USE AS REQUIRED |
| | Y | | SEPARATE ILLUSTRATION |
