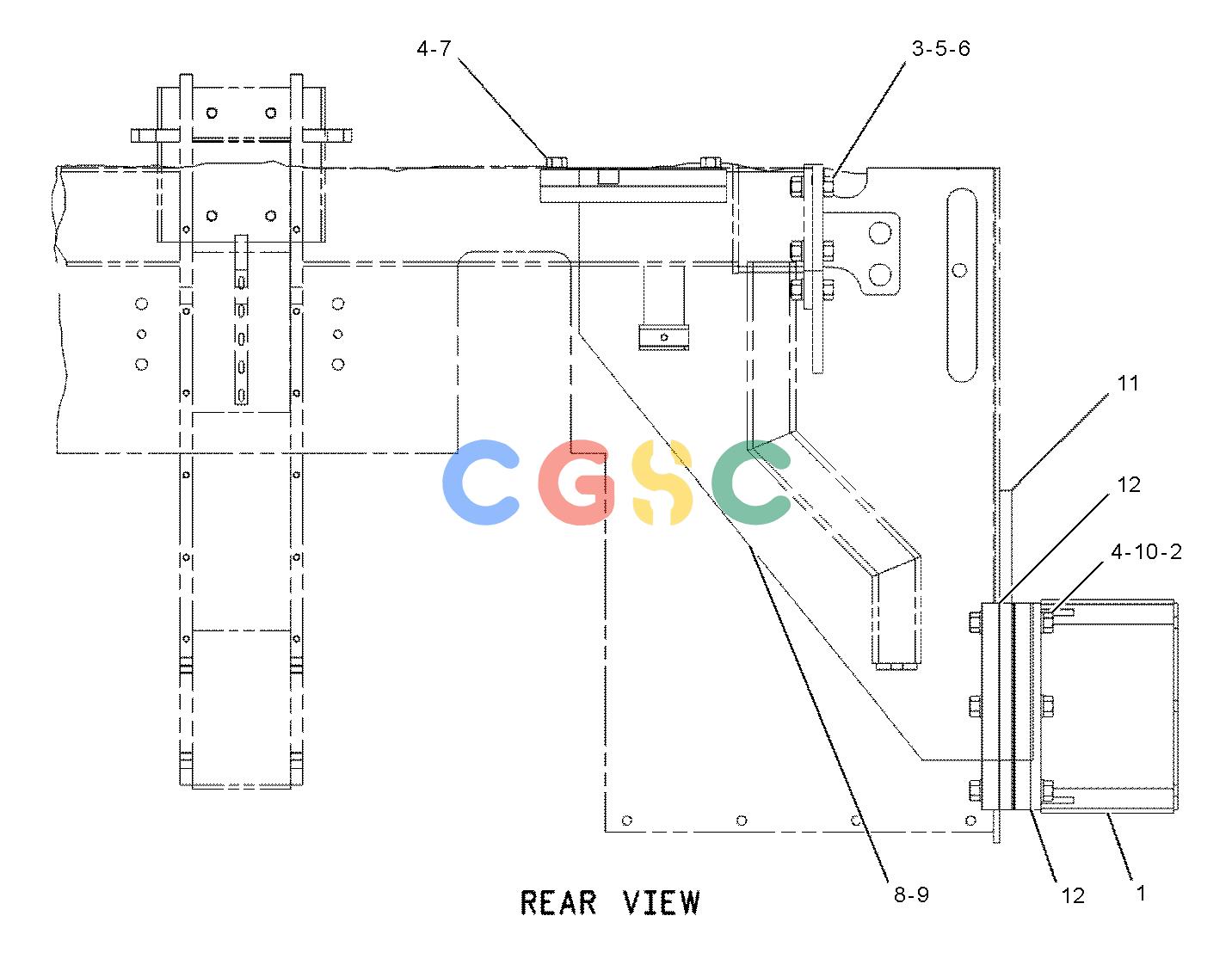

卡特零件查询（BG-225C） 186-3637: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 16 02月, 2025，浏览：
883 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 121-4263 | [2] | EXTENSION AS-MAIN FRAME | |
| 2. | 7X-0345 | [6] | BOLT(5/8-11X1.75-IN) | |
| 3. | 6V-8182 | [6] | NUT(3/4-10-THD) | |
| 4. | 8T-4122 | [16] | WASHER-HARD(17X32X3.5-MM THK) | |
| 5. | 8T-8924 | [6] | BOLT(3/4-10X2.5-IN) | |
| 6. | 8T-4994 | [6] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 7. | 7X-0346 | [4] | BOLT(5/8-11X2-IN) | |
| 8. | 177-9592 | [1] | SUPPORT AS(RH) | |
| 9. | 177-9593 | [1] | SUPPORT AS(LH) | |
| 10. | 7X-0343 | [6] | BOLT(5/8-11X1.25-IN) | |
| 11. | 120-7678 | [2] | BAR | |
| 12. | 121-3920B | [4] | SHIM(1.65-MM THK) | |
| | B | | USE AS REQUIRED |
