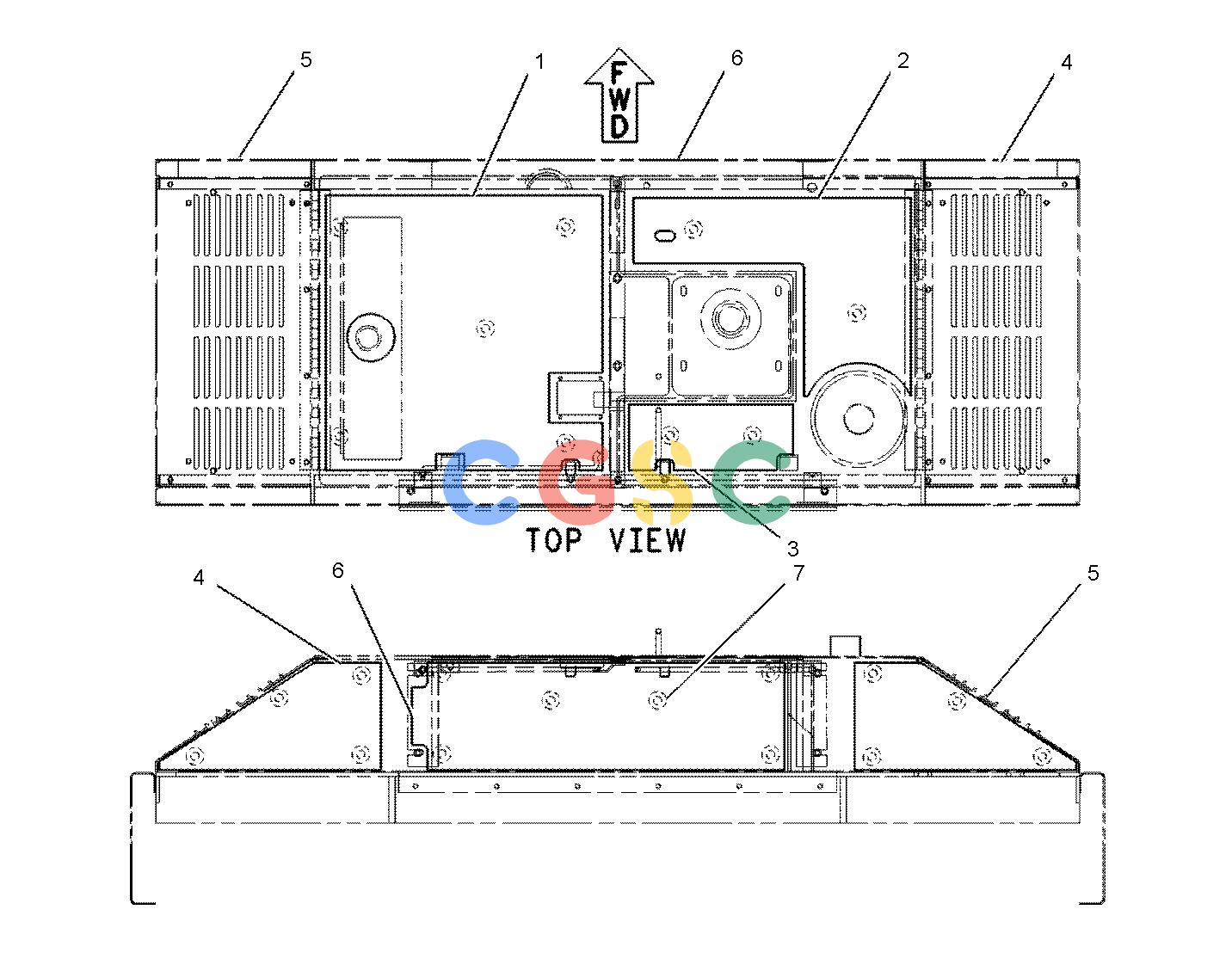

卡特零件查询（BG-225C） 121-6173: SUPPORT GP-TOW ARM
广数供应链运营团队, 16 02月, 2025，浏览：
950 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 188-9862 | [1] | LEVER AS | |
| 2. | 8I-0950 | [1] | LEVER AS | |
| 3. | 121-7384 | [1] | LEVER AS | |
| 4. | 121-6695 | [1] | ROD | |
| 5. | 108-9442 | [1] | BAR | |
| 6. | 6F-7010 | [2] | ROD END | |
| 7. | 6B-6684 | [2] | NUT-FULL(1/2-20-THD) | |
| 8. | 9C-7035 | [2] | WASHER(19.8X38X1.5-MM THK) | |
| 9. | 8T-2501 | [2] | BOLT(3/8-16X2-IN) | |
| 10. | 2K-4973 | [2] | LOCKNUT(3/8-16-THD) | |
| 11. | 3B-4617 | [8] | PIN-COTTER | |
| 12. | 8T-2183 | [2] | PIN | |
| 13. | 121-7002 | [1] | LEVER AS | |
| 14. | 188-9863 | [1] | LEVER AS | |
| 15. | 8I-0957 | [2] | BAR | |
| 16. | 067-4435 | [2] | LOCK PIN | |
