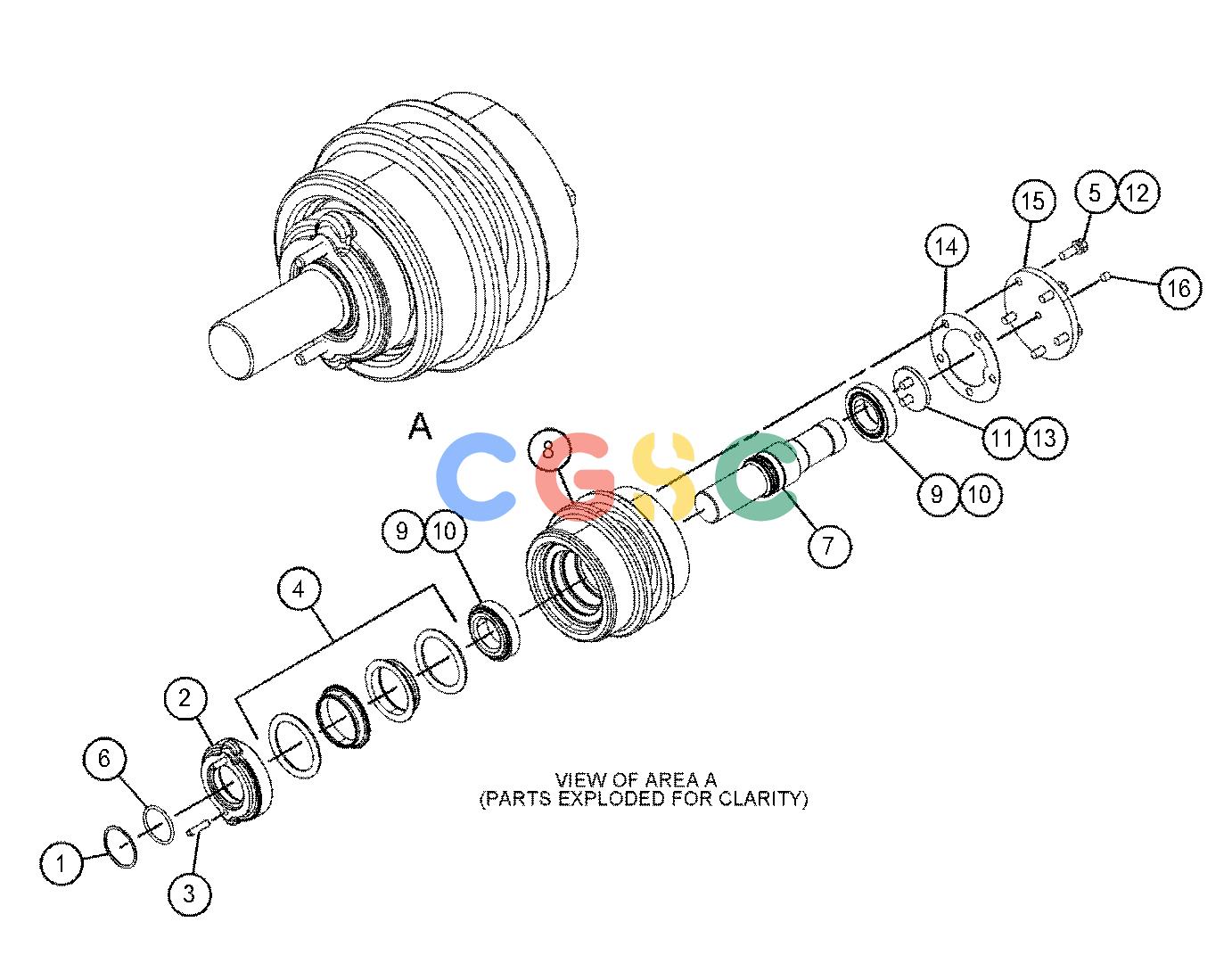

卡特零件查询（BG-225C） 6S-3609: ROLLER GP-TRACK CARRIER
广数供应链运营团队, 16 02月, 2025，浏览：
227 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1M-7914 | [1] | RING-RETAINING | |
| 2. | 1M-7918 | [1] | COLLAR AS-END | |
| 3. | 1M-4291 | [2] | DOWEL | |
| 4. | 9W-5224 | [1] | SEAL GP-DUO-CONE | |
| 5. | 3B-4506 | [5] | LOCKWASHER | |
| 6. | 1H-9696 | [1] | SEAL-O-RING | |
| 7. | 6K-9861 | [1] | SHAFT-ROLLER | |
| 8. | 172-0160 | [1] | ROLLER AS | |
| 9. | 1M-8736 | [2] | CUP-BEARING | |
| 10. | 1M-8735 | [2] | CONE-BEARING | |
| 11. | 6K-9860 | [1] | PLATE-RETAINER | |
| 12. | 8T-2502 | [5] | BOLT(3/8-16X1.125-IN) | |
| 13. | 6V-4791C | [2] | BOLT(3/8-24X0.75-IN) | |
| 14. | 4H-9628 | [1] | GASKET | |
| 15. | 435-7832 | [1] | COVER | |
| 16. | 9F-2247 | [1] | PLUG-PIPE | |
| | C | | CHANGE FROM PREVIOUS TYPE |
