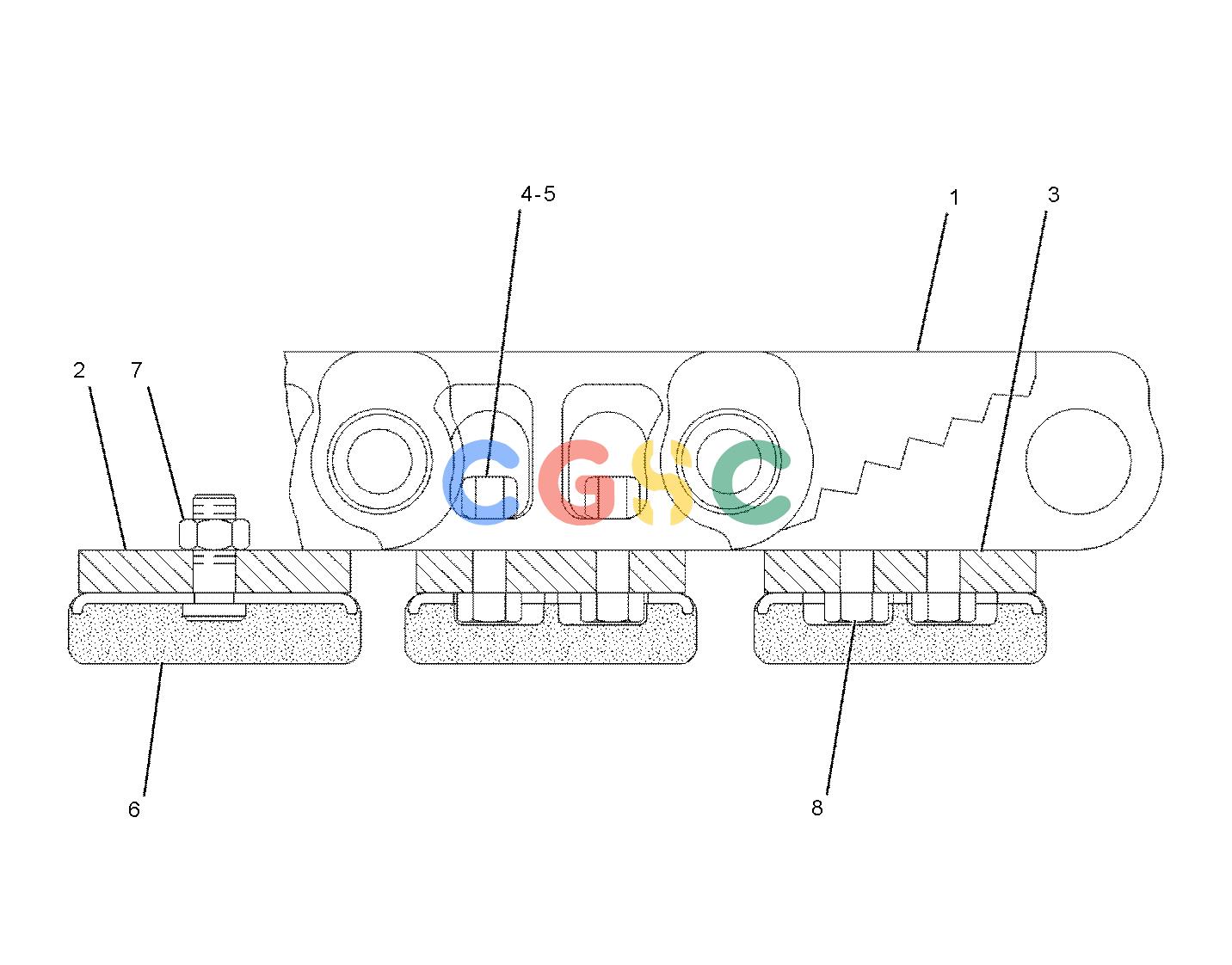

卡特零件查询（BG-225C） 115-2297: TRACK GP
广数供应链运营团队, 16 02月, 2025，浏览：
176 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 116-2226 | [1] | LINK AS-TRACK | |
| | 5A-3187 | [4] | BOLT-TRACK(9/16-18X3-IN) | |
| | 6B-5278 | [46] | PIN-TRACK | |
| | 6S-3146 | [184] | WASHER-SEALING | |
| | 6Y-0935 | [45] | LINK-TRACK(RH) | |
| | 6Y-0936 | [45] | LINK-TRACK(LH) | |
| | 6Y-0937 | [1] | LINK-MASTER(PIN END, RH) | |
| | 6Y-0938 | [1] | LINK-MASTER(PIN END, LH) | |
| | 6Y-0939 | [1] | LINK-MASTER(BUSHING END, RH)(RH) | |
| | 6Y-0940 | [1] | LINK-MASTER(BUSHING END, LH)(LH) | |
| | 6Y-1717 | [46] | BUSHING-TRACK | |
| 2. | 136-1090 | [45] | PLATE-BACKING | |
| 3. | 136-1135 | [1] | PLATE-BACKING | |
| 4. | 8S-4745 | [184] | BOLT(9/16-18X2-IN) | |
| 5. | 7K-2017 | [184] | NUT-SQUARE(9/16-18-THD) | |
| 6. | 132-1998 | [46] | PAD AS-TRACK | |
| 7. | 2K-4821 | [92] | LOCKNUT(5/8-18-THD) | |
| 8. | 8S-4747 | [4] | BOLT(9/16-18X3.5-IN) | |
