卡特零件查询（BG-225C） 106-3482: EXTENSION AR
广数供应链运营团队, 16 02月, 2025，浏览：
215 次

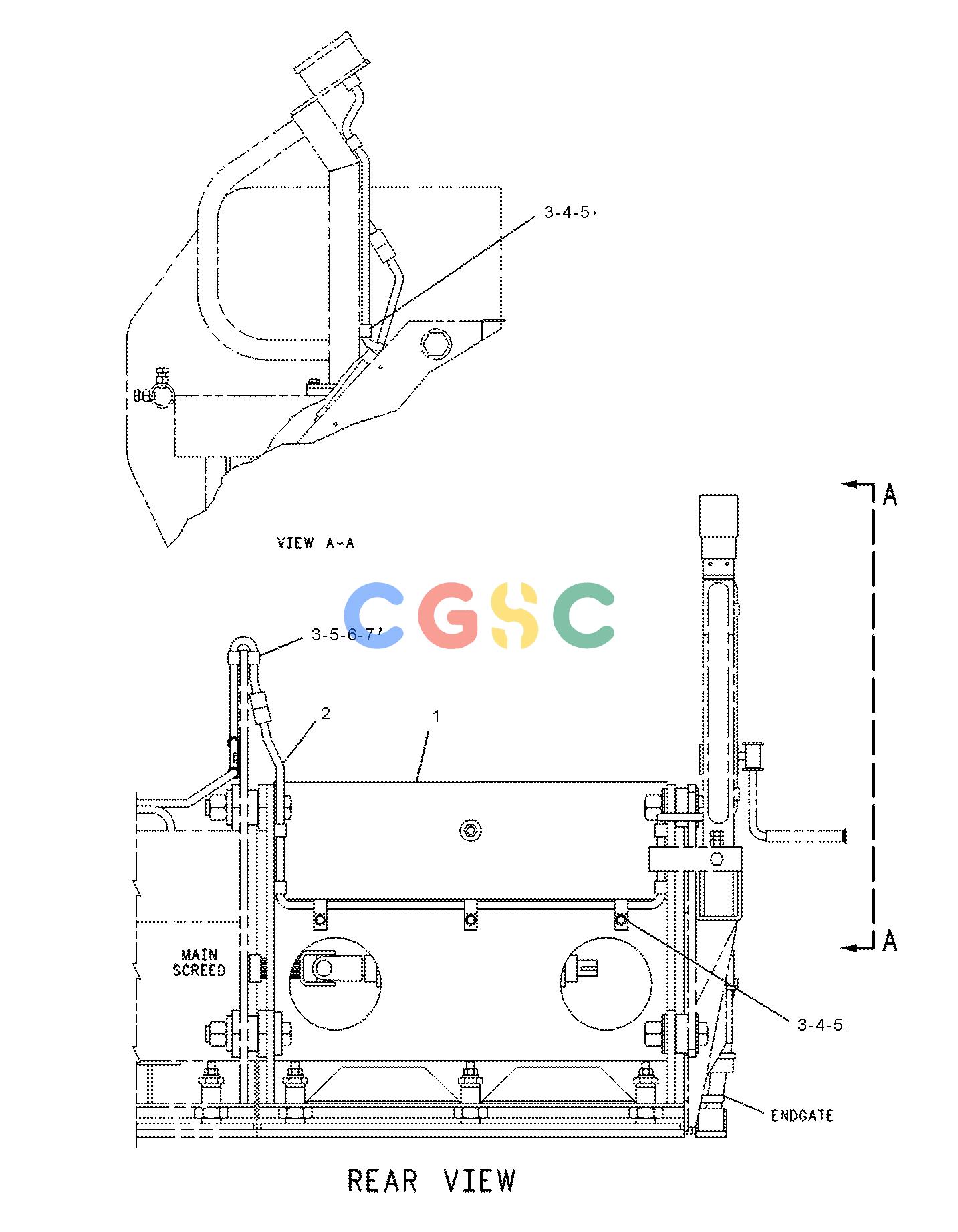

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0520Y | [1] | EXTENSION GP-SCREED(DIESEL HEAT, 12-IN) | |
| 2. | 106-3451 | [1] | HARNESS AS-SCREED(EXTENSION) | |
| | 7T-3272 | [1] | RECEPTACLE-CONNECTOR(6-PIN) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [6] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8C-3654 | [1] | PLUG-CONNECTOR(6-PIN) | |
| 3. | 8J-1256 | [6] | CLIP | |
| 4. | 4M-5281 | [5] | BOLT(1/4-20X0.75-IN) | |
| 5. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 6. | 7X-2501 | [1] | BOLT(1/4-20X1.25-IN) | |
| 7. | 6V-8185 | [1] | NUT(1/4-20-THD) | |
| | Y | | SEPARATE ILLUSTRATION |
