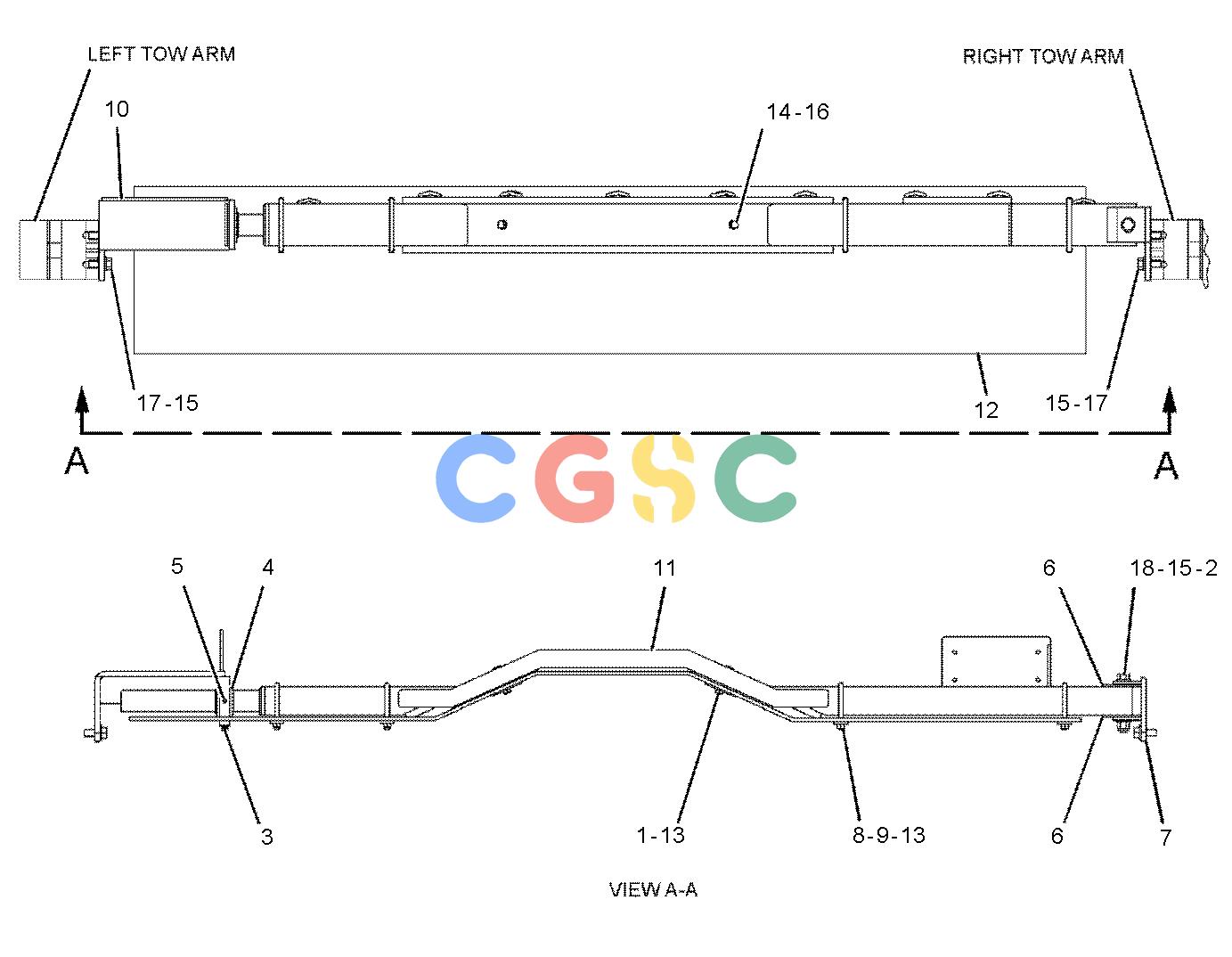

卡特零件查询（BG-225C） 119-1765: BEAM GP-TRANSVERSE
广数供应链运营团队, 16 02月, 2025，浏览：
264 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2G-8767 | [2] | WASHER(10.5X60X3-MM THK) | |
| 2. | 2H-3788 | [1] | LOCKNUT(1/2-13-THD) | |
| 3. | 120-5880 | [1] | MOUNT AS | |
| 4. | 4D-0298 | [1] | BEARING | |
| 5. | 8B-7179 | [1] | SETSCREW-SOCKET(5/16-18X0.375-IN) | |
| 6. | 081-7215 | [2] | CUSHION-RUBBER | |
| 7. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 8. | 168-8665 | [4] | U-BOLT | |
| 9. | 169-7329 | [4] | PLATE | |
| 10. | 188-6021 | [1] | MOUNT AS | |
| 11. | 189-1538 | [1] | BEAM AS | |
| | 7T-1099 | [9] | LINK | |
| | 132-6645 | [1] | PLATE | |
| | 189-1574 | [1] | PLATE | |
| 12. | 189-1737 | [1] | DEFLECTOR | |
| 13. | 031-4155 | [10] | LOCKNUT(5/16-18-THD) | |
| 14. | 7X-0440 | [2] | BOLT(5/16-18X1.75-IN) | |
| 15. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 18. | 8T-9391 | [1] | BOLT(1/2-13X3.75-IN) | |
