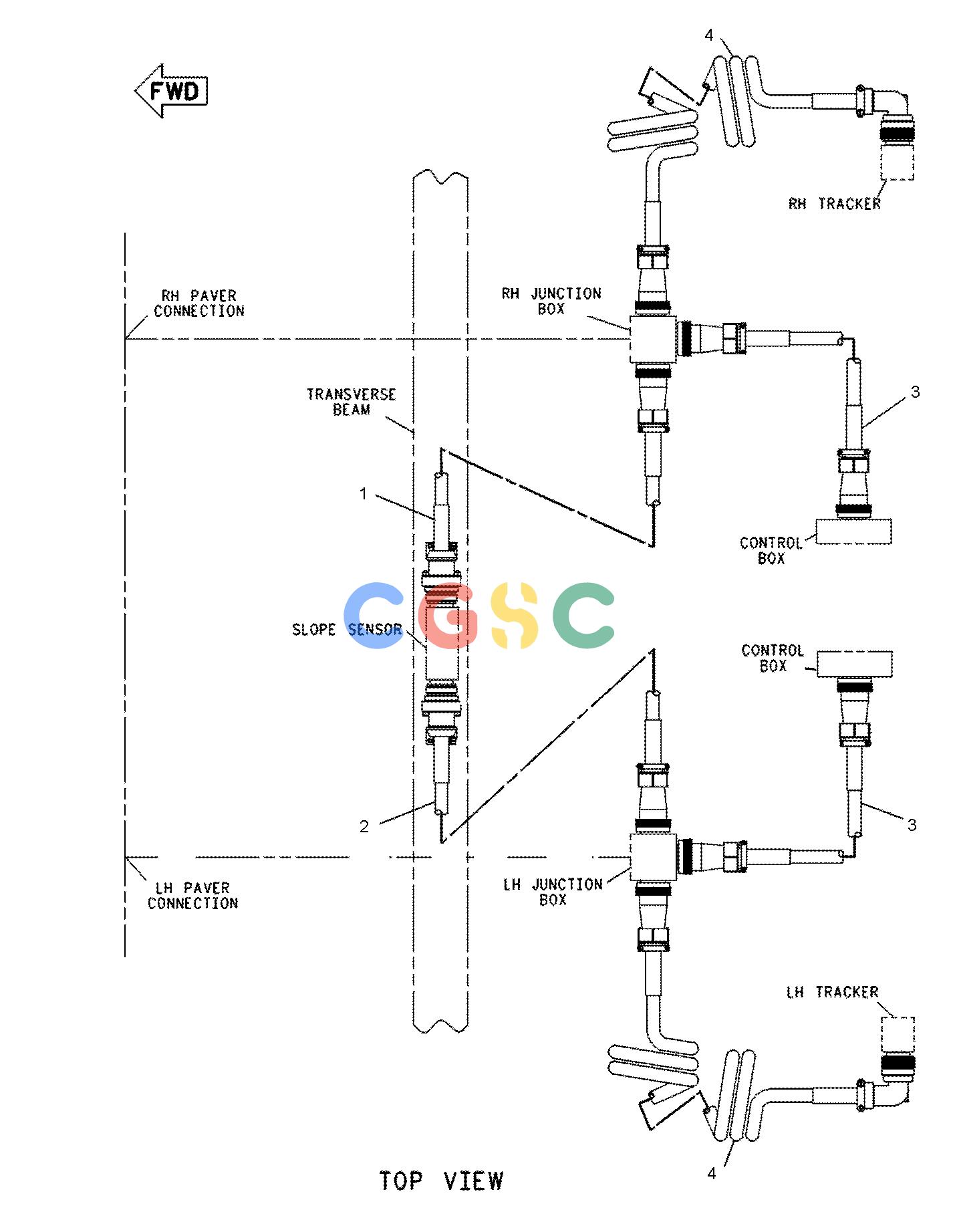

卡特零件查询（BG-225C） 110-2420: CABLE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
925 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 108-2420 | [1] | CABLE AS | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 110-4297 | [1] | PLUG | |
| | 110-6864E | | CABLE(256-CM) | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| 2. | 108-2421 | [1] | CABLE AS | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 110-4297 | [1] | PLUG | |
| | 110-6864E | | CABLE(102-CM) | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| 3. | 108-2422 | [2] | CABLE AS | |
| | | | (EACH INCLUDES) |
| | 104-6863 | [1] | CLAMP | |
| | 110-4298 | [1] | PLUG | |
| | 110-6864E | | CABLE(70-CM) | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8204 | [1] | HOUSING | |
| | 111-8627 | [1] | PLUG | |
| 4. | 108-2423 | [2] | CABLE AS | |
| | | | (EACH INCLUDES) |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 110-4295 | [1] | PLUG | |
| | 110-6863E | [1] | CABLE | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-3263 | [4] | NUT(8-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| | E | | ORDER BY THE CENTIMETER |
