卡特零件查询（BG-225C） 130-7054: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
289 次

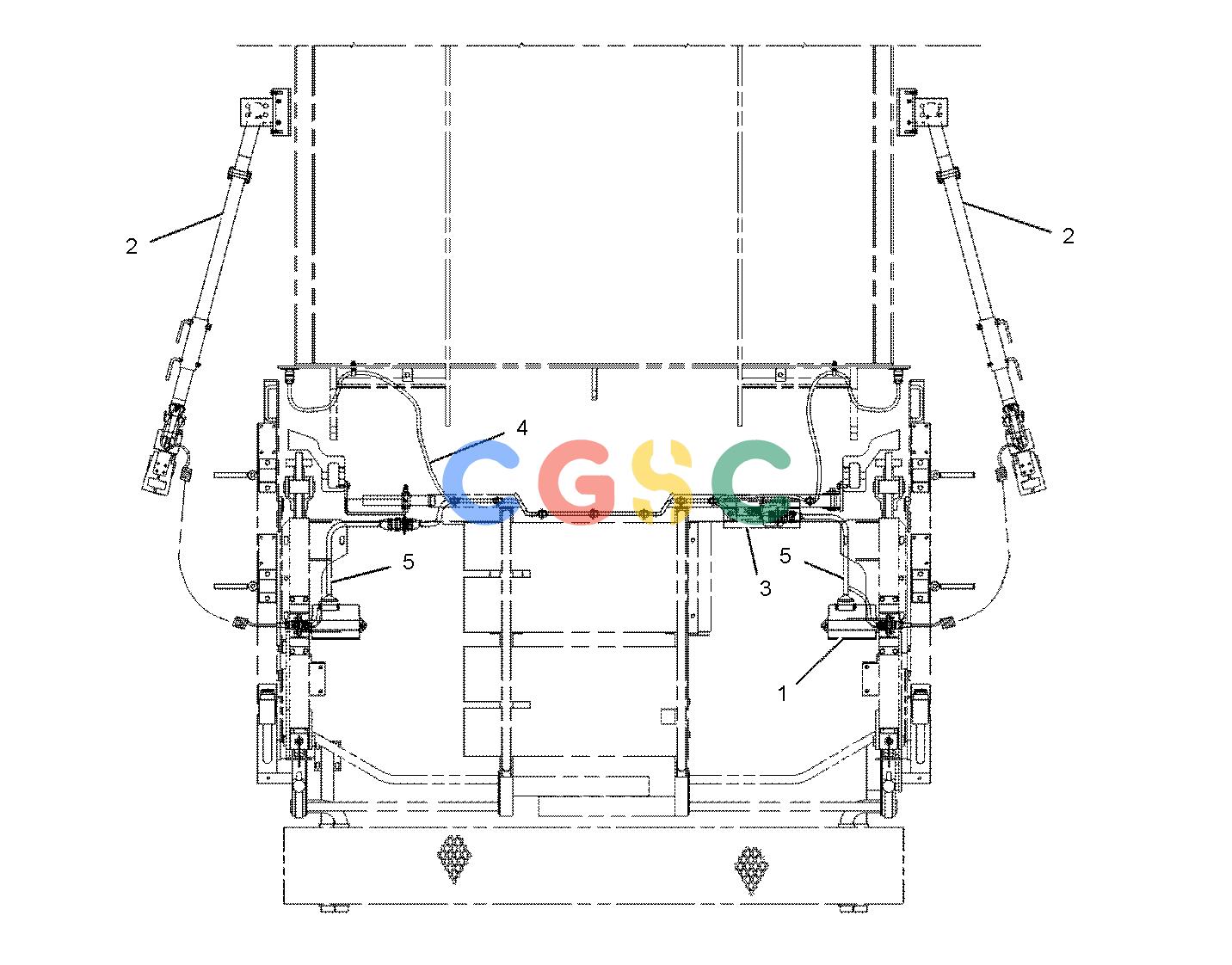

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 130-7053Y | [1] | CONTROL GP-GRADE & SLOPE | |
| 2. | 106-9676Y | [2] | MOUNTING GP-CONTROL | |
| 3. | 122-0348Y | [1] | MOUNTING GP-CONTROL | |
| 4. | 130-7052 | [1] | HARNESS AS-CONTROL(GRADE, SLOPE) | |
| | 3T-0204 | [1] | RECEPTACLE AS-CONNECTOR(20-PIN) | |
| | 8N-1536 | [1] | NUT(1-5/8-18-THD) | |
| | 8N-1535 | [1] | BELL AS-END | |
| | 9X-4385 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| | 9G-3695 | [16] | PLUG-SEAL | |
| 5. | 161-6254 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 3T-0204 | [1] | RECEPTACLE AS-CONNECTOR(20-PIN) | |
| | 8N-1536 | [1] | NUT(1-5/8-18-THD) | |
| | 8N-1535 | [1] | BELL AS-END | |
| | 7G-7917 | [12] | PLUG-SEAL | |
| | Y | | SEPARATE ILLUSTRATION |
