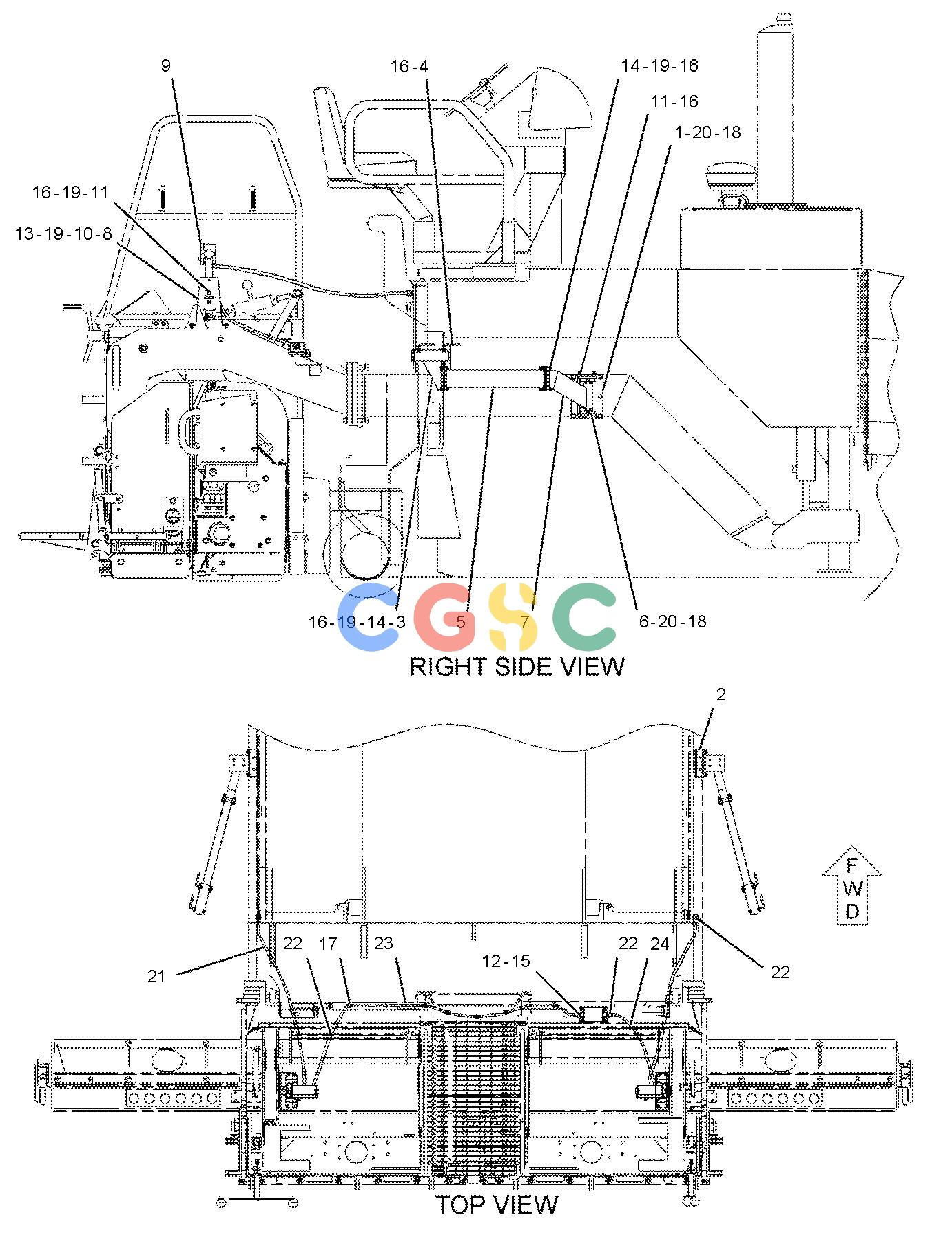

卡特零件查询（BG-225C） 209-3128: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-8270 | [2] | BRACKET AS | |
| 2. | 8C-8271 | [2] | CLAMP | |
| 3. | 8C-8272 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| | 8T-5912 | [4] | NUT-WELD(3/8-16-THD) | |
| 4. | 8C-8273 | [4] | BOLT-SPECIAL | |
| 5. | 8C-8288 | [2] | EXTENSION | |
| 6. | 8T-4571 | [8] | FLANGE-HALF | |
| 7. | 133-6089 | [2] | SUPPORT AS | |
| 8. | 192-3287 | [2] | BRACKET | |
| 9. | 209-3130Y | [1] | CONTROL GP-GRADE & SLOPE | |
| 10. | 4L-6454 | [8] | BOLT(3/8-16X1-IN) | |
| 11. | 4L-9337 | [8] | BOLT(3/8-16X1.5-IN) | |
| 12. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 5P-8167 | [8] | BOLT(3/8-16X0.625-IN) | |
| 14. | 5S-7383 | [16] | BOLT(3/8-16X1.75-IN) | |
| 15. | 6V-5782 | [4] | BOLT(5/16-18X1.125-IN) | |
| 16. | 6V-8801 | [28] | NUT(3/8-16-THD) | |
| 17. | 7K-1181 | [6] | STRAP-CABLE | |
| 18. | 8T-4223 | [24] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-4896 | [48] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 20. | 8T-8917 | [24] | BOLT(1/2-13X1.25-IN) | |
| 21. | 168-6500Y | [2] | CABLE GP-CONTROL(GRADE) | |
| 22. | 3S-2093 | [6] | STRAP-CABLE | |
| 23. | 226-4881 | [1] | CABLE AS(RH) | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 110-4297 | [1] | PLUG | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| 24. | 226-4892 | [1] | CABLE AS | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 110-4297 | [1] | PLUG | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| | Y | | SEPARATE ILLUSTRATION |
