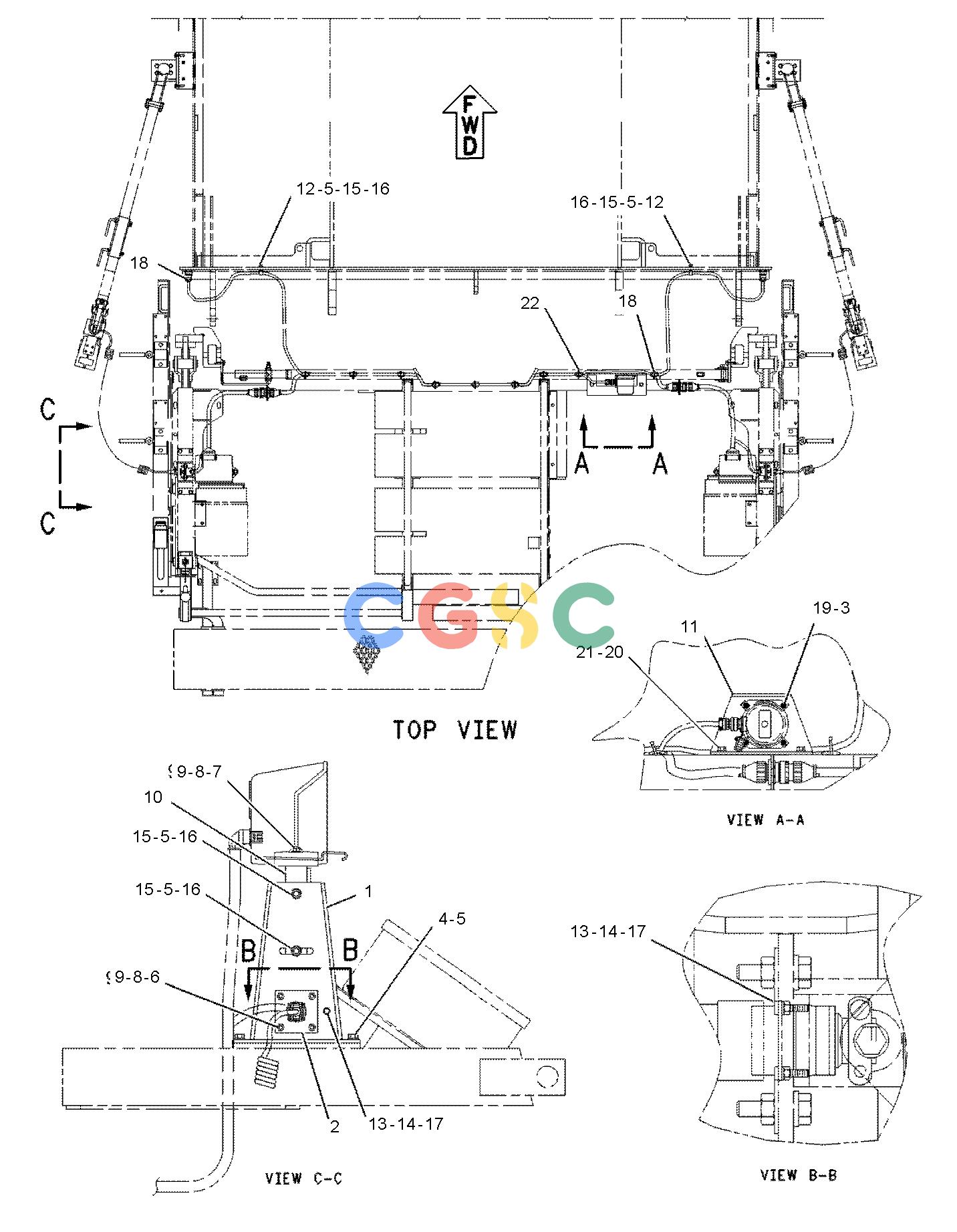

卡特零件查询（BG-225C） 122-0348: MOUNTING GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
673 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 130-2984 | [2] | PLATE AS | |
| 2. | 130-2987 | [2] | PLATE | |
| 3. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 4. | 5P-8167 | [8] | BOLT(3/8-16X0.625-IN) | |
| 5. | 8T-4896 | [18] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 6. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 7. | 5P-2675 | [4] | BOLT(1/4-20X1.75-IN) | |
| 8. | 8T-4205 | [16] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 9. | 6V-8185 | [12] | NUT(1/4-20-THD) | |
| 10. | 130-2985 | [2] | MOUNT AS | |
| 11. | 189-5761 | [1] | BRACKET | |
| 12. | 6D-3479 | [2] | CLIP | |
| 13. | 6V-2480 | [10] | SCREW(4-40X0.5-IN) | |
| 14. | 9B-1117 | [10] | LOCKWASHER | |
| 15. | 6V-8801 | [6] | NUT(3/8-16-THD) | |
| 16. | 9B-7237 | [6] | BOLT(3/8-16X1.25-IN) | |
| 17. | 6B-4540 | [10] | NUT(4-40-THD) | |
| 18. | 3S-2093 | [5] | STRAP-CABLE | |
| 19. | 9X-8486 | [4] | SCREW-MACHINE(8-32X0.75-IN) | |
| 20. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 21. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 7K-1181 | [10] | STRAP-CABLE | |
