卡特零件查询（BG-225C） 185-4061: SENSOR AR-GRADE
广数供应链运营团队, 16 02月, 2025，浏览：
477 次

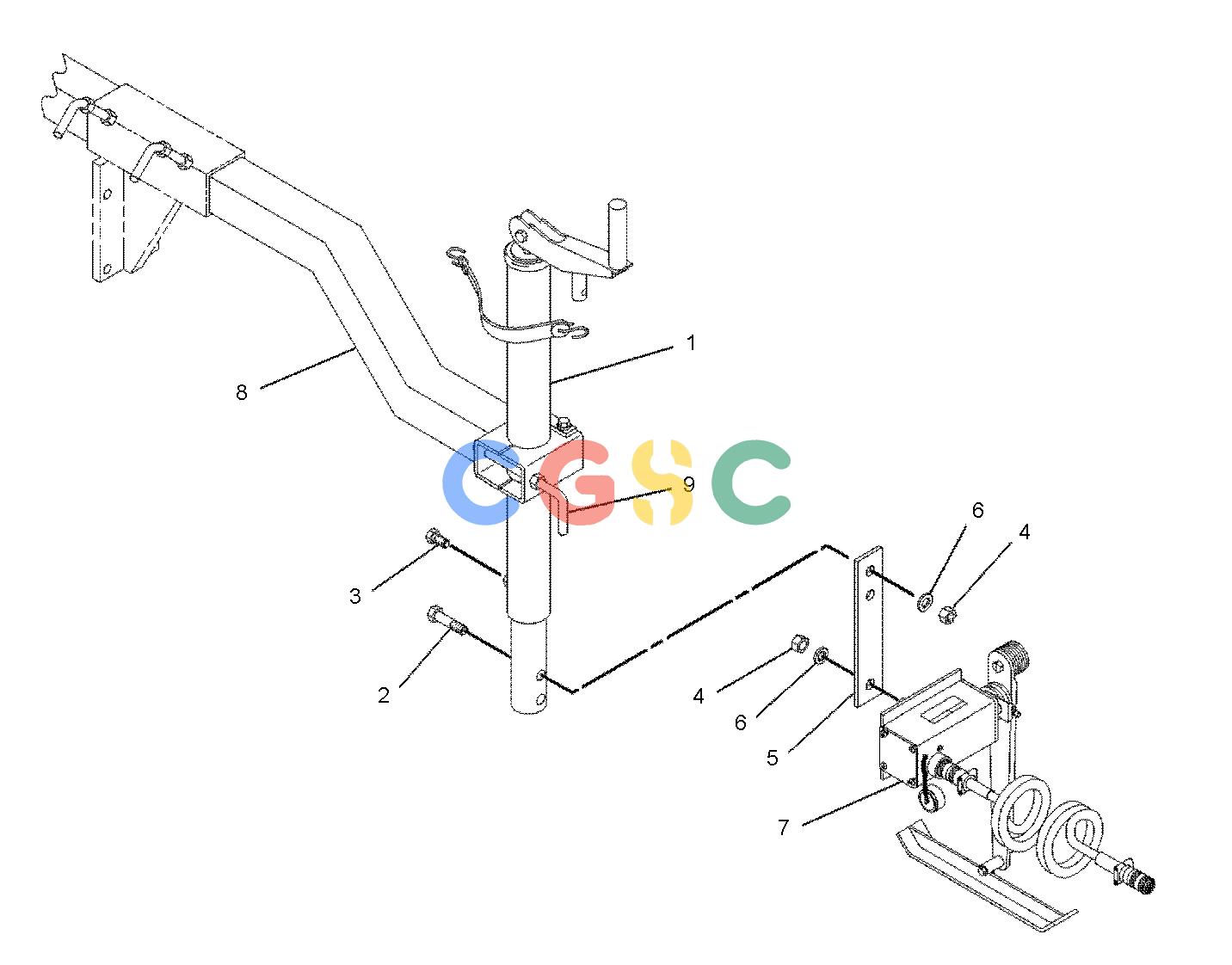

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 185-4044Y | [1] | JACK GP-HEIGHT ADJUSTER | |
| 2. | 8T-9389 | [2] | BOLT(1/2-13X2.75-IN) | |
| 3. | 8C-7935 | [1] | BOLT | |
| 4. | 6V-8188 | [3] | NUT(1/2-13-THD) | |
| 5. | 119-4093 | [1] | BRACKET | |
| 6. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 122-0090Y | [1] | SENSOR GP-GRADE(AVERAGING SKI) | |
| 8. | 185-4047 | [1] | SUPPORT AS | |
| | 1B-2714 | [2] | BOLT(1/4-20X2.5-IN) | |
| | 9S-8750 | [2] | NUT-FULL(1/4-20-THD) | |
| | 9S-8752 | [1] | NUT-FULL(3/8-16-THD) | |
| 9. | 8C-7919 | [1] | BOLT(3/8-16X3.75-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
