卡特零件查询（BG-225C） 133-8682: HITCH GP-TRUCK
广数供应链运营团队, 16 02月, 2025，浏览：
446 次

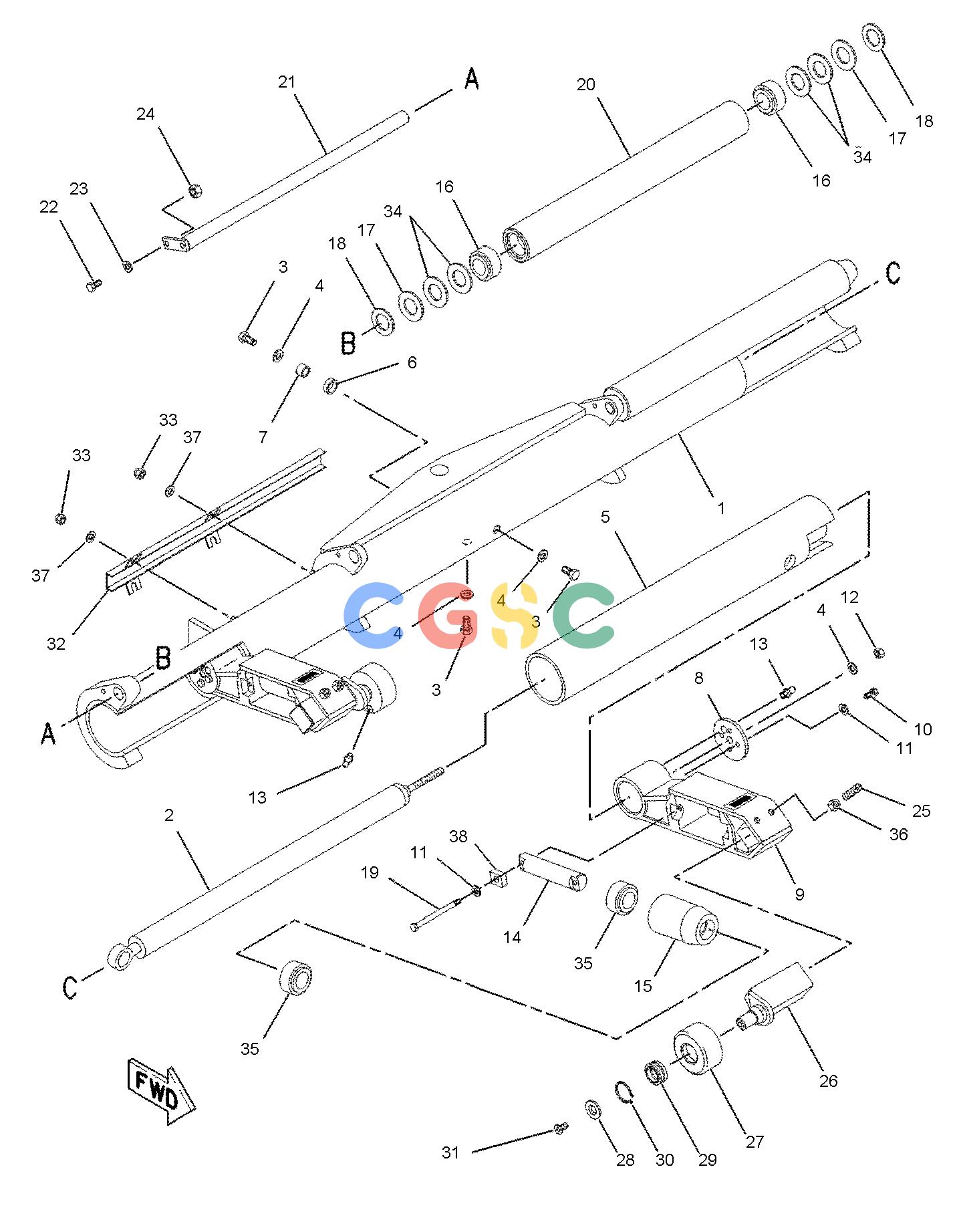

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0640 | [1] | HOUSING AS-HITCH | |
| 2. | 133-8683J | [1] | CYLINDER GP-HYDRAULIC(TRUCK HITCH) | |
| 3. | 8T-9398 | [4] | BOLT(3/4-10X1.75-IN) | |
| 4. | 8T-4994 | [6] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 5. | 8I-0565 | [2] | TUBE AS-EXTENSION | |
| 6. | 118-1288 | [2] | GUIDE(31.9X43.5X9.65-MM THK) | |
| 7. | 118-1289 | [2] | SPACER(19.23X31.67X18.5-MM THK) | |
| 8. | 8I-0373 | [2] | PLATE-ARM | |
| 9. | 171-3758 | [2] | ARM | |
| 10. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| 11. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 6V-8182 | [2] | NUT(3/4-10-THD) | |
| 13. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 14. | 132-8869 | [2] | PIN | |
| 15. | 166-4654 | [2] | ROLLER-SIDE | |
| 16. | 6I-9487 | [4] | BALL BEARING | |
| 17. | 8I-0625B | [4] | WASHER(38.9X81X4.8-MM THK) | |
| 18. | 8I-0626B | [4] | WASHER(1.53X2.38X.25-IN THK) | |
| 19. | 7X-0328 | [4] | BOLT(1/2-13X3.5-IN) | |
| 20. | 8I-0627 | [2] | ROLLER | |
| 21. | 8I-0566 | [2] | SHAFT AS-ROLLER | |
| 22. | 8T-9396 | [2] | BOLT(5/8-11X3.25-IN) | |
| 23. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 24. | 7X-0448 | [2] | NUT(5/8-11-THD) | |
| 25. | 8T-8919 | [4] | BOLT(1/2-13X1.75-IN) | |
| 26. | 8I-0563 | [2] | SUPPORT AS-ROLLER | |
| 27. | 8I-0371 | [2] | ROLLER-RIM | |
| 28. | 8I-0372 | [2] | WASHER-RETAINING | |
| 29. | 4D-0298 | [2] | BEARING | |
| 30. | 052-0512 | [2] | RING-RETAINING | |
| 31. | 4K-1493 | [2] | SCREW-HOLLOW(1/2-13X1-IN) | |
| 32. | 8I-0570 | [2] | COVER AS-ROLLER | |
| 33. | 1K-6872 | [8] | LOCKNUT(1/2-13-THD) | |
| 34. | 092-2555B | [8] | WASHER(39X72X1.5-MM THK) | |
| 35. | 132-8870 | [4] | BEARING | |
| 36. | 3H-3680 | [4] | NUT-JAM(1/2-13-THD) | |
| 37. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 38. | 166-4660 | [4] | SPACER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 8I-0653J | [1] | KIT-SEAL | |
| | | | (INCLUDES U-CUPS, WIPERS, O-RING SEALS, SEALS & BACKUP RINGS) |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
