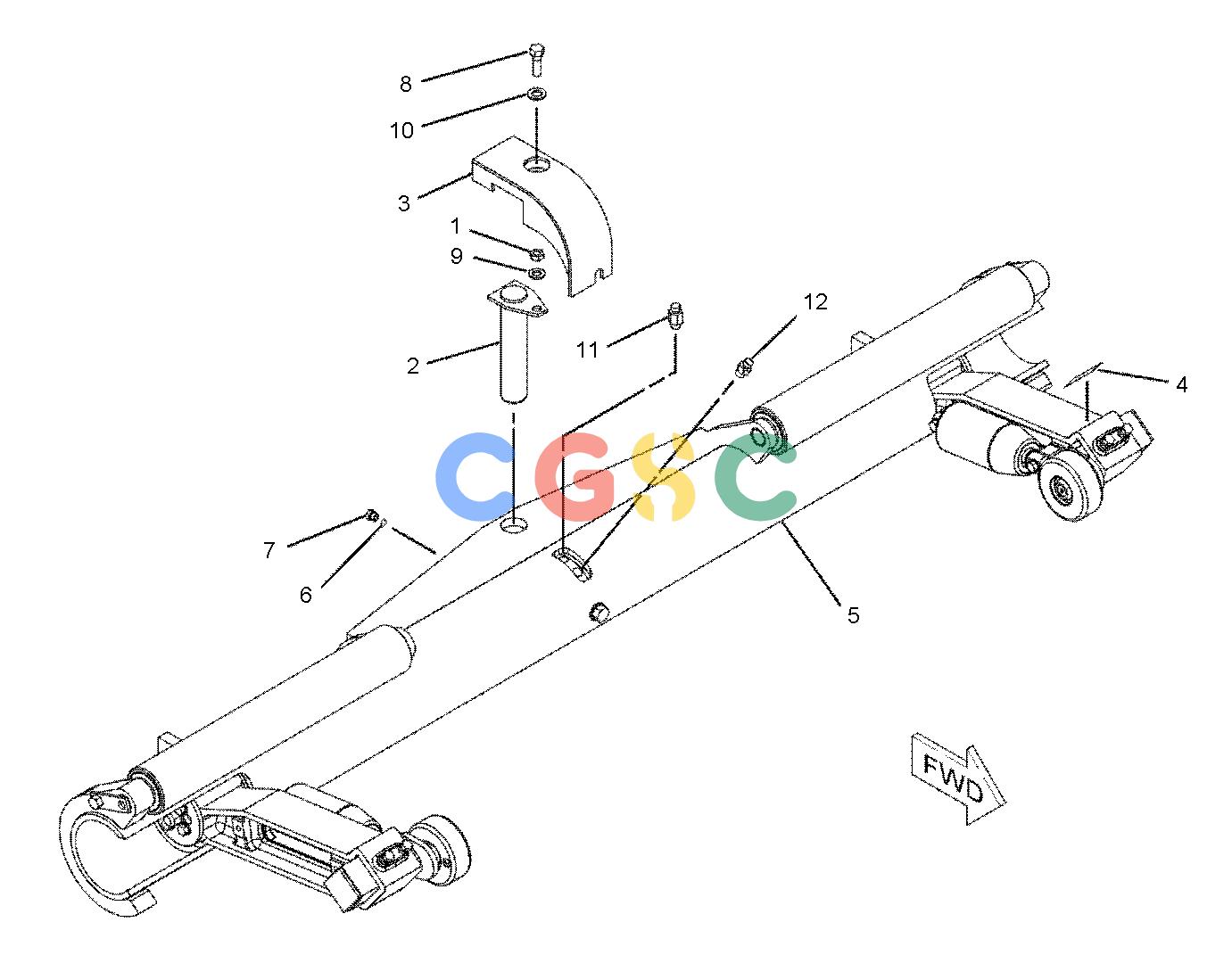

卡特零件查询（BG-225C） 166-7677: HITCH GP-TRUCK
广数供应链运营团队, 16 02月, 2025，浏览：
448 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1D-5118 | [1] | NUT-JAM(5/8-11-THD) | |
| 2. | 8I-0567 | [1] | PIN AS-PIVOT | |
| 3. | 8I-0571 | [1] | GUARD AS-HOSE | |
| 4. | 8I-0724 | [2] | FILM-INFORMATION(DAILY LUBRICATION POINT) | |
| 5. | 166-7676Y | [1] | HITCH GP-TRUCK | |
| 6. | 3J-1907 | [2] | SEAL-O-RING | |
| 7. | 9S-4191 | [2] | PLUG(9/16-18-THD) | |
| 8. | 7X-0346 | [1] | BOLT(5/8-11X2-IN) | |
| 9. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 10. | 8T-4994 | [1] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 11. | 164-5605 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-0076 | [1] | CONNECTOR | |
| 12. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| | Y | | SEPARATE ILLUSTRATION |
