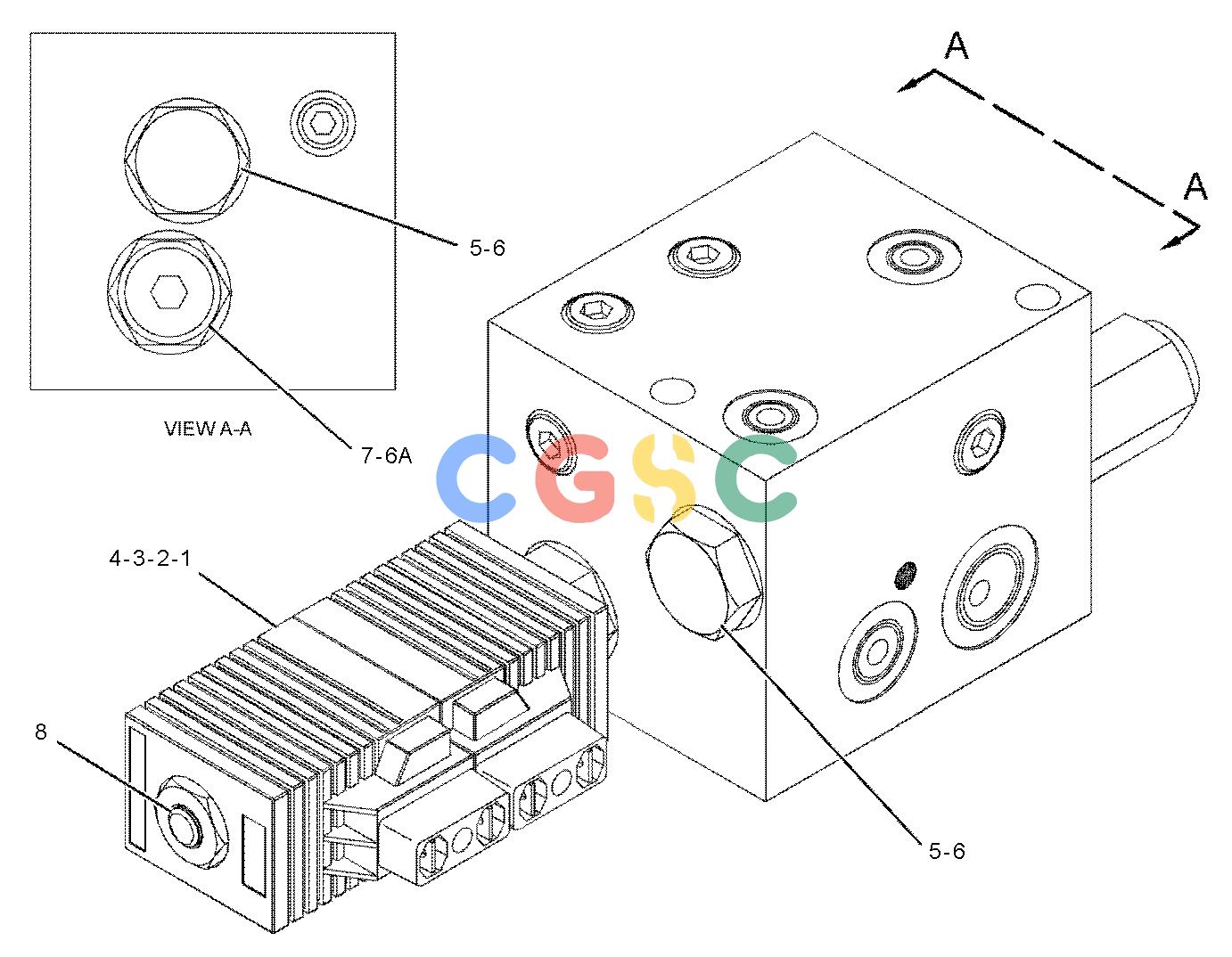

卡特零件查询（AP-655C） 190-8794: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
393 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 234-0374 | [1] | KIT-SOLENOID VALVE | |
| | | | (INCLUDES VALVE, SEAL-O-RINGS, RING BACKUPS, COIL, NUT & SPACER) |
| 2. | 230-4084 | [2] | COIL | |
| 3. | 234-0377 | [1] | SPACER(16X21.6X5-MM THK) | |
| 4. | 234-0375 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES SEAL-O-RINGS & RING BACKUPS) |
| 5. | 230-4077 | [2] | KIT-VALVE(CHECK) | |
| | | | (INCLUDES VALVE, SEAL-O-RINGS & RING BACKUPS) |
| 6. | 230-4078 | [2] | KIT-SEAL(CHECK VALVE) | |
| 6A. | 230-4078 | [1] | KIT-SEAL(PRESSURE REDUCING VALVE) | |
| | | | (EACH SEAL KIT INCLUDES SEAL-O-RINGS & RING BACKUPS) |
| 7. | 234-0373 | [1] | KIT-VALVE(PRESSURE REDUCING) | |
| | | | (INCLUDES VALVE, SEAL-O-RINGS & RING BACKUPS) |
| 8. | 225-6982 | [1] | NUT(1/2-20-THD) | |
