卡特零件查询（AP-655C） 204-5351: VALVE & MTG GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
947 次

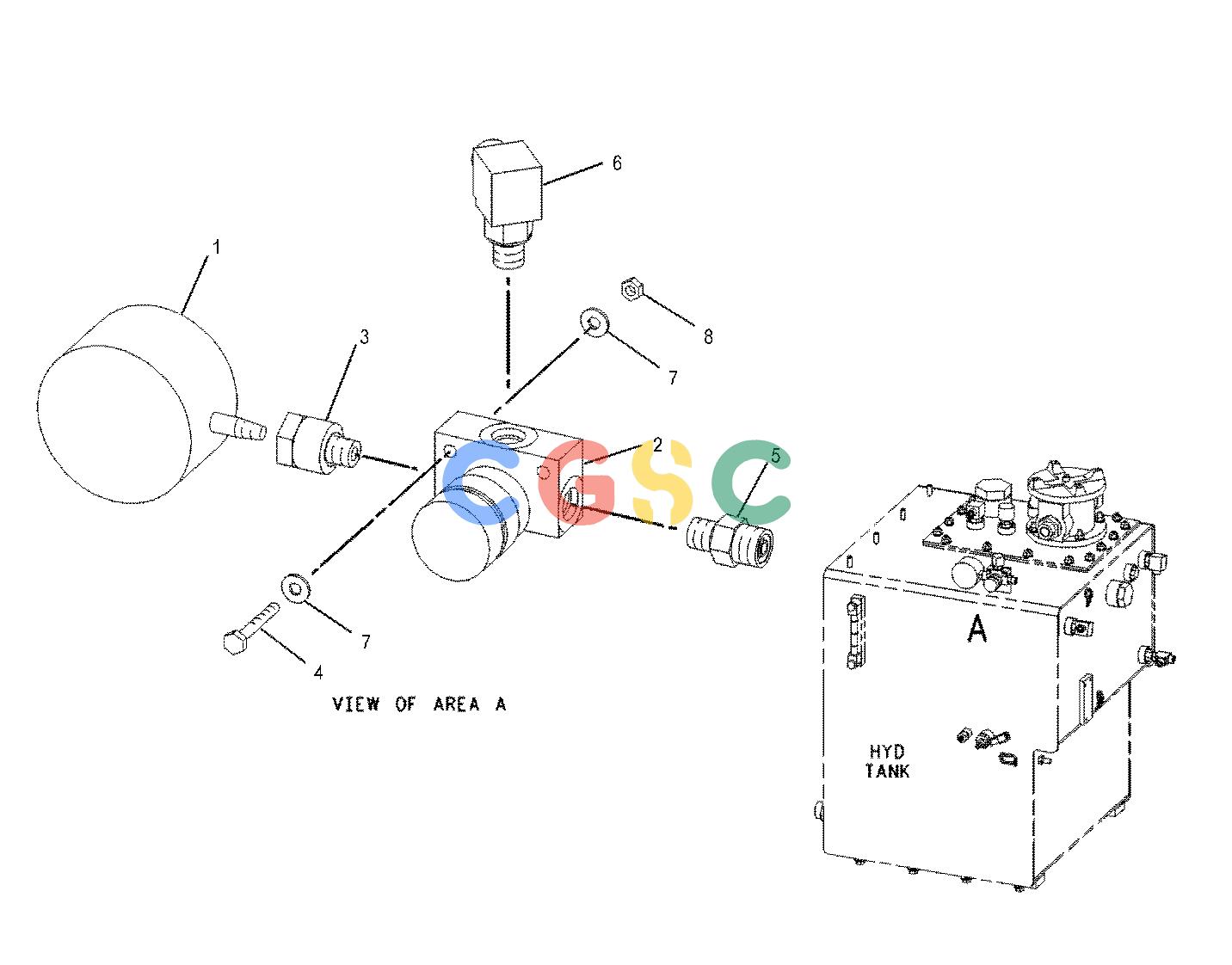

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-0855 | [1] | GAUGE GP-PRESSURE(HYDRAULIC OIL TANK) | |
| 2. | 203-8517 | [1] | VALVE GP-CONTROL(GAUGE ISOLATOR) | |
| 3. | 207-4862 | [1] | ADAPTER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 5P-2937 | [1] | ADAPTER-O-RING | |
| 4. | 112-8370M | [2] | BOLT | |
| 5. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 6. | 148-8369 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 7. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 8. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| | M | | METRIC PART |
