卡特零件查询（AP-655C） 164-8501: EXHAUST GP
广数供应链运营团队, 16 02月, 2025，浏览：
389 次

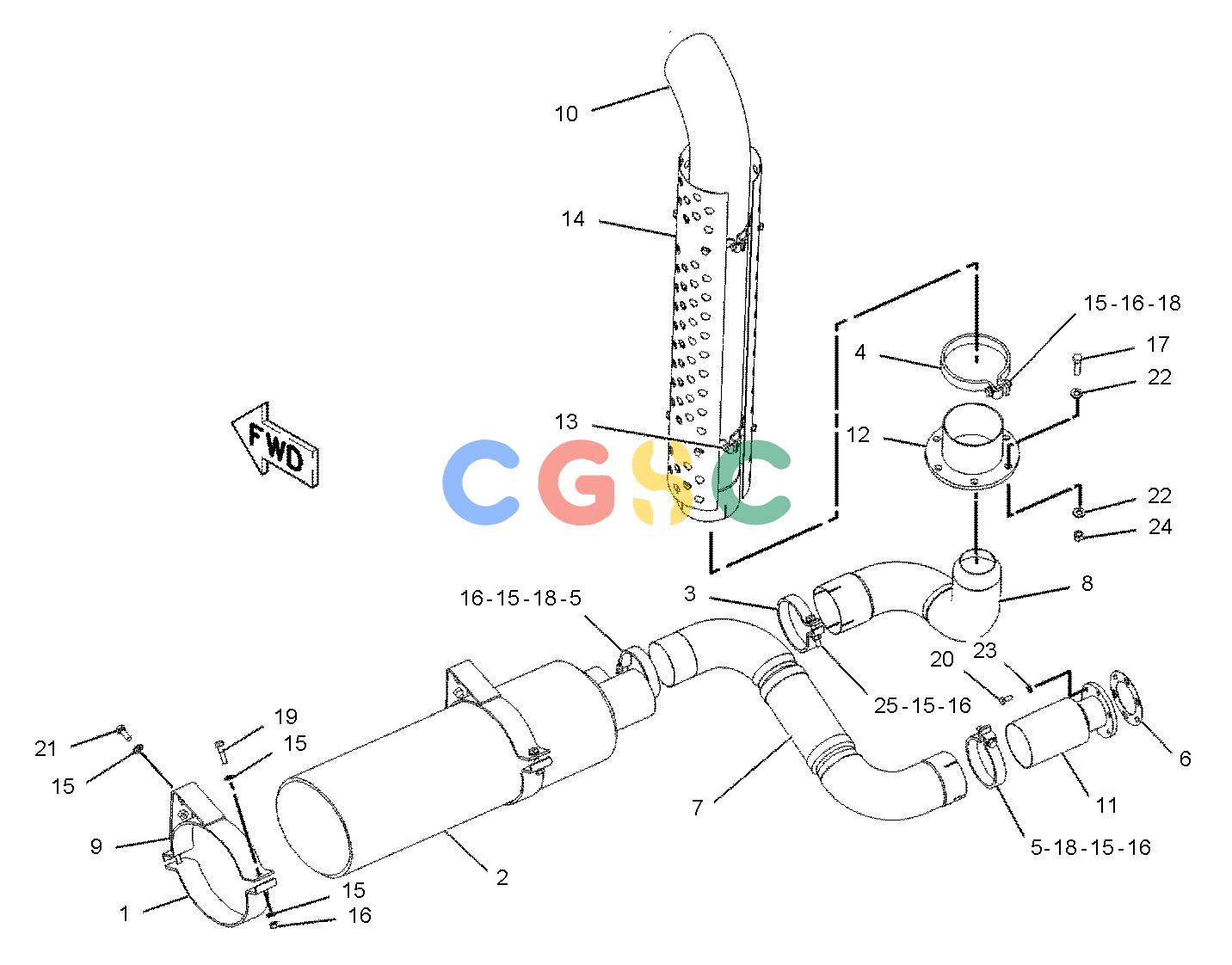

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5C-3885 | [2] | STRAP-MUFFLER | |
| 2. | 7E-5663 | [1] | MUFFLER AS | |
| 3. | 7S-8735 | [1] | CLAMP(TUBE-EXHAUST) | |
| 4. | 8H-2758 | [1] | CLAMP(SHIELD) | |
| 5. | 134-3203 | [2] | CLAMP-MUFFLER | |
| 6. | 141-8597 | [1] | GASKET(ADAPTER-TURBO) | |
| 7. | 195-0265 | [1] | TUBE-FLEXIBLE | |
| 8. | 195-0266 | [1] | TUBE-EXHAUST | |
| 9. | 195-0269 | [2] | BRACKET AS | |
| 10. | 195-7427 | [1] | PIPE-EXHAUST | |
| 11. | 196-2340 | [1] | ADAPTER | |
| 12. | 196-2341 | [1] | SUPPORT | |
| 13. | 196-2342 | [2] | CLAMP(STACK-EXHAUST) | |
| 14. | 196-2357 | [1] | SHIELD-HEAT | |
| 15. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 17. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 18. | 8T-4185M | [3] | BOLT(M10X1.5X50-MM) | |
| 19. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 20. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 21. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 22. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 25. | 8T-6466M | [1] | BOLT(M10X1.5X60-MM) | |
| | M | | METRIC PART |
