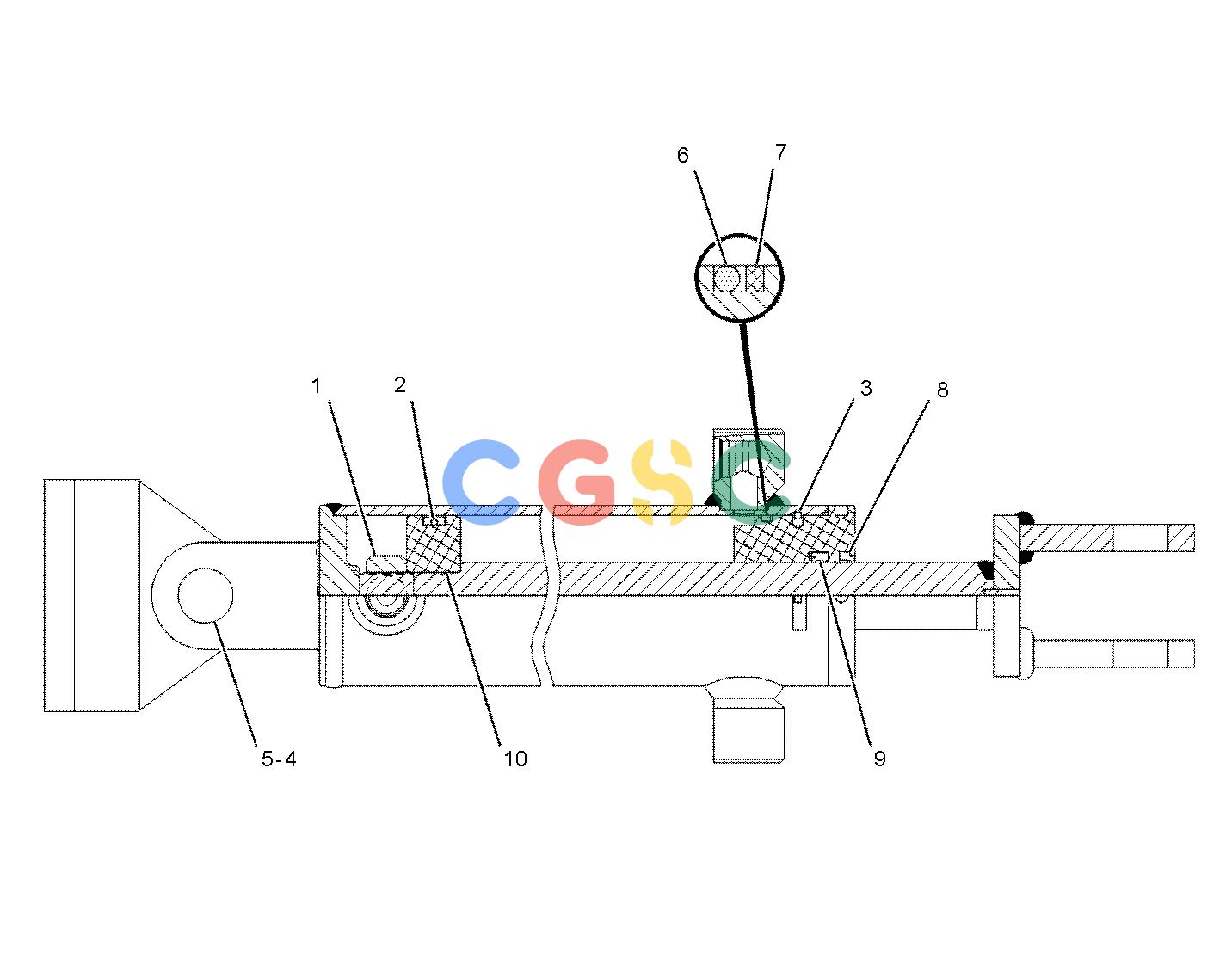

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5D-1986 | [1] | LOCKNUT(7/8-14-THD) | |
| 2. | JZ | [1] | SEAL | |
| 3. | 5E-8580 | [1] | RING-RETAINING | |
| 4. | 8S-6377 | [1] | PIN-LOCK | |
| 5. | 5E-8583 | [1] | PIN | |
| 6. | JZ | [1] | SEAL-O-RING | |
| 7. | JZ | [1] | RING-BACKUP | |
| 8. | JZ | [1] | WIPER | |
| 9. | JZ | [1] | LIP SEAL | |
| 10. | JZ | [1] | SEAL-O-RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 231-3255J | [1] | KIT-SEAL(TOW POINT CYLINDER) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| Z | NOT SERVICED SEPARATELY | |||
