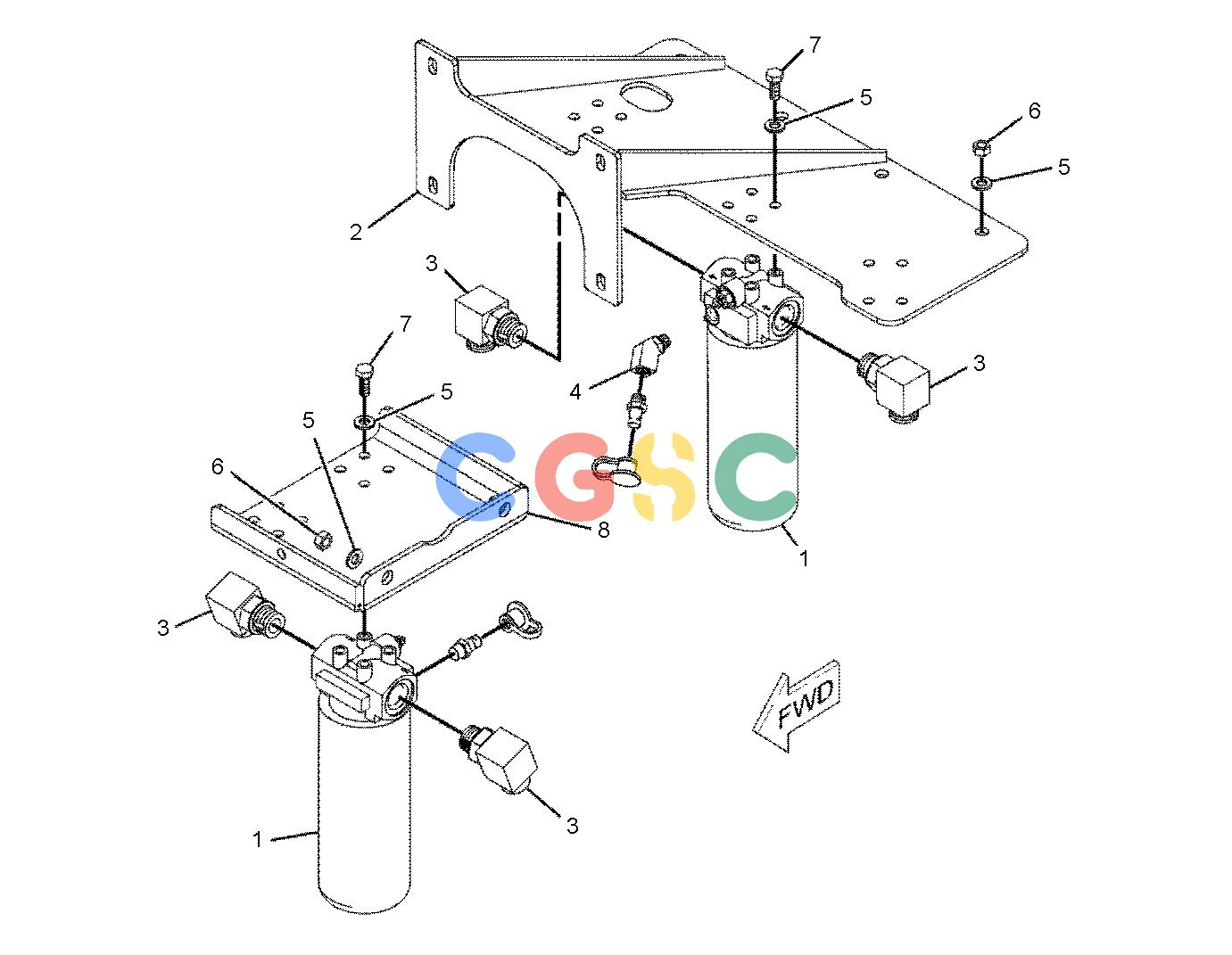

卡特零件查询（AP-655C） 196-7617: FILTER & MTG GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 196-7614Y | [2] | FILTER GP-OIL(HYDRAULIC) | |
| 2. | 201-9188 | [1] | SUPPORT AS | |
| 3. | 148-8347 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9007 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 165-4931 | [1] | ELBOW AS | |
| | 6V-8077 | [1] | ELBOW | |
| 4. | 3J-1907 | [1] | SEAL-O-RING | |
| 5. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 7. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 8. | 237-0682 | [1] | PLATE | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
