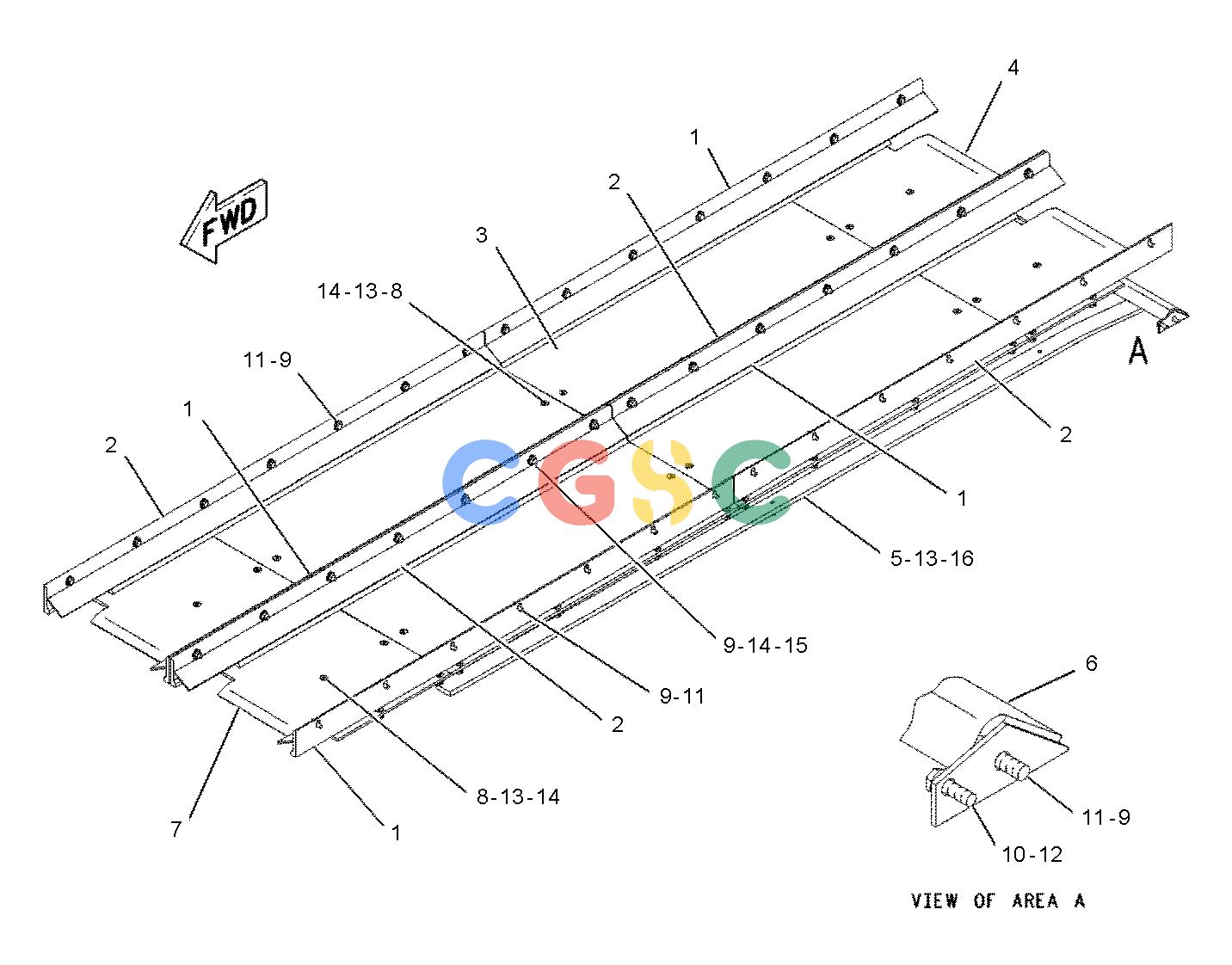

卡特零件查询（AP-655C） 192-5445: GUARD GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
572 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 192-5432 | [4] | GUARD AS | |
| 2. | 192-5433 | [4] | GUARD AS | |
| 3. | 192-5439 | [4] | PLATE | |
| 4. | 192-5440 | [2] | PLATE | |
| 5. | 192-5447 | [4] | BAR | |
| 6. | 198-2653 | [1] | PLATE AS | |
| 7. | 215-2733 | [2] | PLATE | |
| 8. | 123-0354M | [64] | SCREW-FLAT HEAD(M12X1.75X35-MM) | |
| 9. | 5P-1076 | [58] | WASHER-HARD(13.5X30X4-MM THK) | |
| 10. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4139M | [30] | BOLT(M12X1.75X30-MM) | |
| 12. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 13. | 8T-4223 | [76] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4244M | [78] | NUT(M12X1.75-THD) | |
| 15. | 8T-4910M | [14] | BOLT(M12X1.75X60-MM) | |
| 16. | 8T-4956M | [12] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
