卡特零件查询（AP-655C） 190-6479: MOTOR GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
630 次

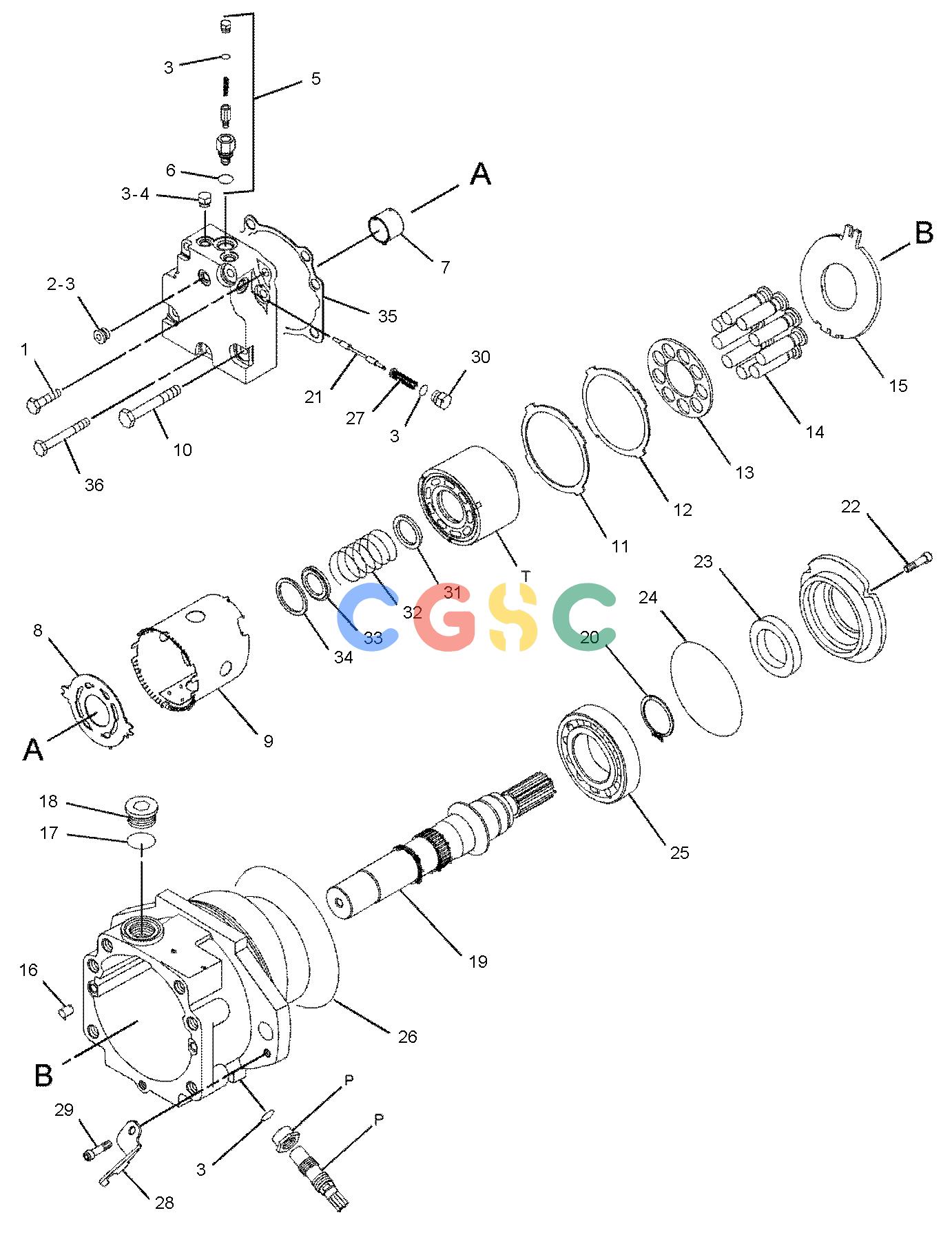

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4154M | [2] | BOLT(M8X1.25X35-MM) | |
| 2. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 3. | 3J-1907P | [7] | SEAL-O-RING | |
| 4. | 9S-4191 | [2] | PLUG(9/16-18-THD) | |
| 5. | 192-4905 | [1] | VALVE-RELIEF(PROPEL MOTOR) | |
| 6. | 033-6027H | [1] | SEAL-O-RING | |
| 7. | 1G-5764 | [1] | BEARING | |
| 8. | 1G-5740 | [1] | PLATE | |
| 9. | 145-4916 | [1] | TUBE | |
| 10. | 113-1034 | [4] | BOLT | |
| 11. | 1G-5742L | [1] | SHIM | |
| 12. | 1G-5743L | [1] | RETAINER | |
| 13. | 1G-5750L | [1] | GUIDE | |
| 14. | 1G-5773L | [9] | PISTON | |
| 15. | 1G-5739 | [1] | PLATE | |
| 16. | 077-8353 | [2] | PIN(SPRING) | |
| 17. | 3D-2824 | [2] | SEAL-O-RING | |
| 18. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 19. | 229-5025 | [1] | SHAFT | |
| 20. | 2L-6965 | [1] | RING-RETAINING | |
| 21. | 1G-5735 | [1] | SPOOL | |
| 22. | 8T-0269JM | [3] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 23. | 1G-5736HJ | [1] | SEAL-LIP TYPE | |
| 24. | 5P-3863HJ | [1] | SEAL-O-RING | |
| 25. | 1G-5737 | [1] | BEARING | |
| 26. | 192-5168H | [1] | SEAL-O-RING | |
| 27. | 211-4401 | [2] | SEAT | |
| 28. | 229-5028 | [1] | BRACKET | |
| 29. | 9X-6153M | [1] | BOLT(M6X1X10-MM) | |
| 30. | 161-6563 | [2] | PLUG-SPECIAL | |
| 31. | 1G-5746LT | [1] | SEAT | |
| 32. | 1G-5747LT | [1] | SPRING | |
| 33. | 1G-5748LT | [1] | RETAINER | |
| 34. | 1G-5749LT | [1] | RING | |
| 35. | 229-5030H | [1] | GASKET | |
| 36. | 6V-5815M | [1] | BOLT(M10X1.5X75-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 229-5026J | [1] | KIT-COVER(PROPEL MOTOR) | |
| | | | (ALSO INCLUDES SEAL-O-RING, LIP SEAL, COVER & PART(S) MARKED "J") |
| | 224-0769T | [1] | KIT-BLOCK(PROPEL MOTOR) | |
| | | | (ALSO INCLUDES CYLINDER BLOCK, SEAT, SPRING, RETAINER, RING RETAINER & PART(S) MARKED "T") |
| | 229-5029L | [1] | KIT-PUMP REPAIR(PROPEL MOTOR) | |
| | | | (ALSO INCLUDES BLOCK KIT) |
| | 1G-5727H | [1] | KIT-REPAIR(PROPEL MOTOR) | |
| | 229-5027P | [1] | KIT-SPEED SENSOR(PROPEL) | |
| | | | (ALSO INCLUDES PART(S) MARKED "P") |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
