卡特零件查询（AP-655C） 190-8790: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
580 次

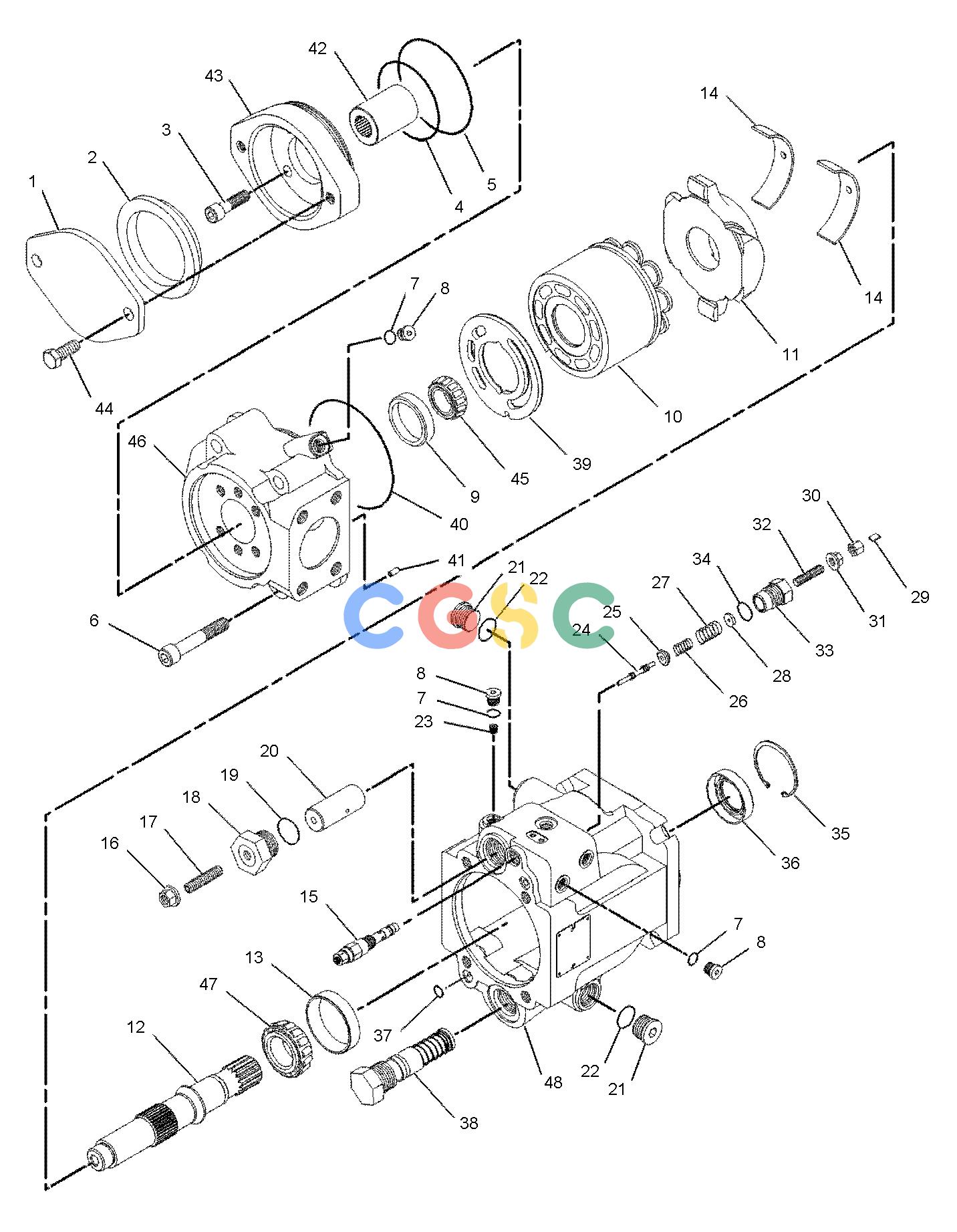

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 231-7224 | [1] | COVER | |
| 2. | 5E-8769J | [1] | SEAL-O-RING | |
| 3. | 232-3593 | [4] | BOLT-SOCKET HEAD | |
| 4. | 5P-2931J | [1] | SEAL-O-RING | |
| 5. | 3K-0715J | [1] | SEAL-O-RING | |
| 6. | 3E-6910M | [4] | BOLT-SOCKET HEAD(M12X1.75X70-MM) | |
| 7. | 3J-7354J | [7] | SEAL-O-RING | |
| 8. | 9S-8002 | [7] | PLUG(7/16-20-THD) | |
| 9. | HZ | [1] | CUP |
| 10. | 231-7227Y | [1] | ROTATING GP-PUMP | |
| 11. | 231-7229 | [1] | SWASHPLATE | |
| 12. | 231-7231 | [1] | SHAFT | |
| 13. | LZ | [1] | CUP |
| 14. | 231-7232 | [2] | BEARING-SPECIAL | |
| 15. | 231-7233Y | [1] | VALVE GP-PUMP CONTROL(PRESSURE COMPENSATOR) | |
| 16. | 3E-9851JM | [1] | NUT-SEALING(M12X1.75-THD) | |
| 17. | 9X-2403M | [1] | SETSCREW-HEX SOCKET(M12X1.75X50-MM) | |
| 18. | 231-7256 | [1] | PLUG-SPECIAL | |
| 19. | 3D-2824J | [1] | SEAL-O-RING | |
| 20. | 231-7234 | [1] | PISTON | |
| 21. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 22. | 2M-9780J | [2] | SEAL-O-RING | |
| 23. | 231-7235 | [1] | ORIFICE | |
| 24. | 231-7236 | [1] | SPOOL | |
| 25. | 231-7237 | [1] | GUIDE-SPRING | |
| 26. | 231-7239 | [1] | SPRING | |
| 27. | 231-7240 | [1] | SPRING | |
| 28. | 231-7241 | [1] | SEAT-SPRING | |
| 29. | 231-7242J | [1] | WEDGE | |
| 30. | 232-3589 | [1] | NUT(M8X1X6H THD) | |
| 31. | 116-3883J | [1] | NUT-SEAL | |
| 32. | 232-3588 | [1] | SETSCREW(M8X1-33.5MM THD) | |
| 33. | 231-7243 | [1] | PLUG-SPECIAL | |
| 34. | 3K-0360J | [1] | SEAL-O-RING | |
| 35. | 6J-7855 | [1] | RING-RETAINING | |
| 36. | 232-3591J | [1] | SEAL-LIP TYPE | |
| 37. | 033-6039J | [2] | SEAL-O-RING | |
| 38. | 231-7244Y | [1] | PISTON GP-ACTUATOR | |
| 39. | 231-7245 | [1] | PLATE-VALVE | |
| 40. | 6D-7146J | [1] | SEAL-O-RING | |
| 41. | 231-7260 | [1] | PIN-SLOTTED | |
| 42. | 231-7247 | [1] | COUPLER | |
| 43. | 231-7248 | [1] | FLANGE-ADAPTER | |
| 44. | 6H-1717 | [2] | BOLT(1/2-13X1.125-IN) | |
| 45. | HZ | [1] | CONE |
| 46. | Z | [1] | COVER |
| 47. | Z | [1] | CONE |
| 48. | Z | [1] | HOUSING |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 232-3842J | [1] | KIT-SEAL(AUXILIARY PUMP) | |
| | 232-3586H | [1] | KIT-BEARING(AUXILIARY PUMP) | |
| | 232-3587L | [1] | KIT-BEARING(AUXILIARY PUMP) | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
| | Z | | NOT SERVICED SEPARATELY |
