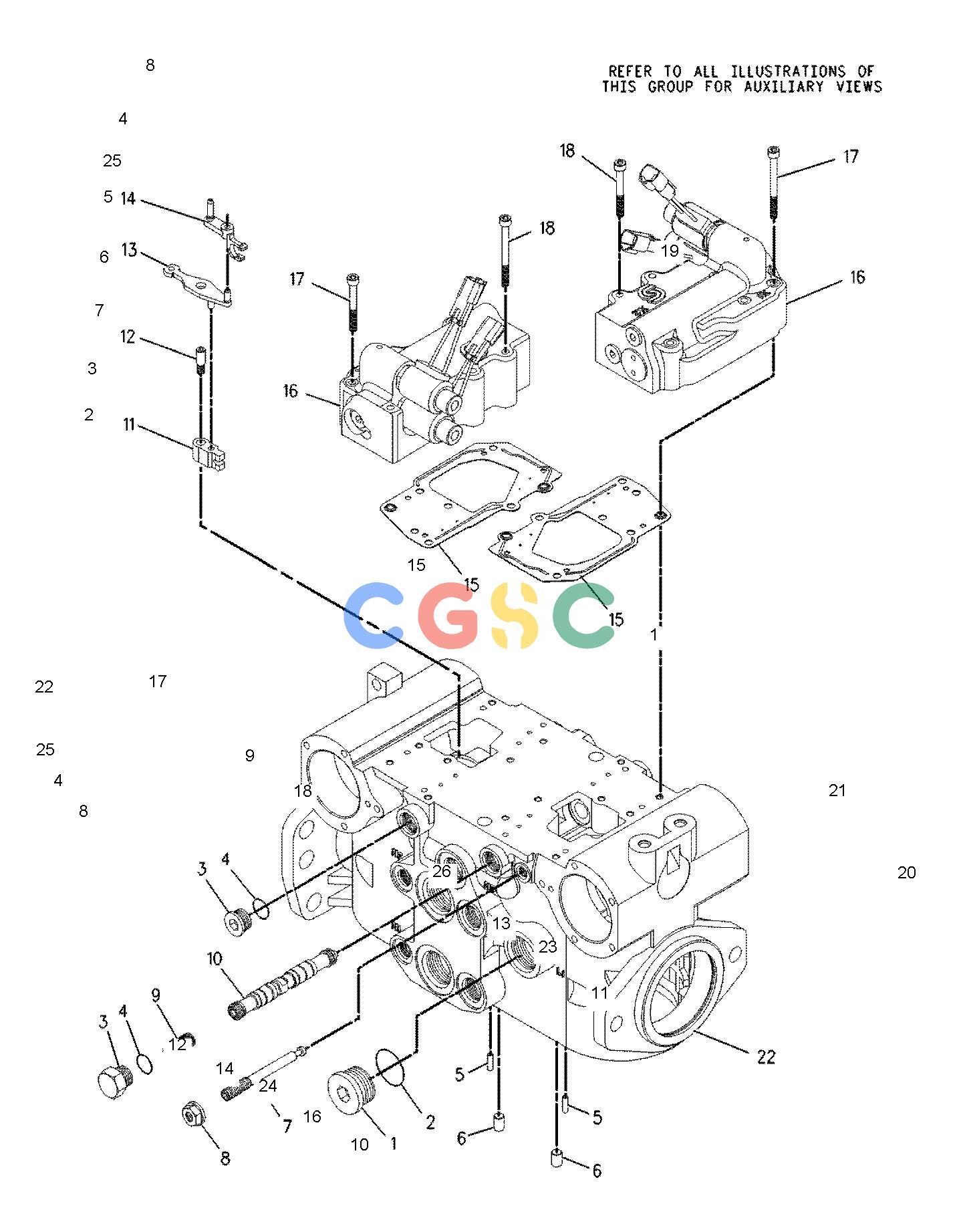

卡特零件查询（AP-655C） 199-5718: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-9334 | [2] | PLUG-O-RING | |
| 2. | 7M-8485J | [2] | SEAL-O-RING | |
| 3. | 9S-8005 | [4] | PLUG(3/4-16-THD) | |
| 4. | 3K-0360J | [4] | SEAL-O-RING | |
| 5. | 169-8595 | [2] | PIN | |
| 6. | 077-8353 | [2] | PIN(SPRING) | |
| 7. | 164-6665 | [2] | SCREW | |
| 8. | 116-3871J | [4] | NUT-SEAL | |
| 9. | 116-1323 | [2] | SPRING | |
| 10. | 165-9130 | [2] | SPOOL | |
| 11. | 116-1330 | [2] | LINK | |
| 12. | 116-1333 | [2] | SCREW-MOUNTING | |
| 13. | 116-1331 | [2] | LINK-FEEDBACK | |
| 14. | 116-1332 | [2] | LINKAGE-CONTROL | |
| 15. | 219-3301 | [2] | GASKET | |
| 16. | 232-1528 | [2] | VALVE GP-SOLENOID(CONVEYOR PUMP) | |
| | | | (EACH INCLUDES) |
| | 266-9945 | [2] | NUT(1/2-32-THD) | |
| | 276-6044 | [2] | COIL-SOLENOID | |
| | 266-3051 | [2] | KIT-SEAL(SOLENOID VALVE)(SOLENOID VALVE) | |
| | 276-6043 | [2] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (EACH SEAL KIT INCLUDES SEAL-O-RINGS) |
| 17. | 116-3878 | [6] | SCREW(M8X1.25X30-MM) | |
| 18. | 116-3877 | [8] | SCREW | |
| 19. | 132-6697M | [12] | BOLT(M8X1.25X20-MM) | |
| 20. | 220-0553J | [2] | GASKET | |
| 21. | 188-2921 | [2] | SWASHPLATE | |
| 22. | Z | [1] | HOUSING |
| 23. | 165-9760 | [2] | COVER-SERVO | |
| 24. | 3J-1907J | [8] | SEAL-O-RING | |
| 25. | 9S-8004 | [8] | PLUG(9/16-18-THD) | |
| 26. | 165-5560 | [20] | SCREW(M6X1X30-MM) | |
| 27. | 164-6956J | [4] | GASKET-COVER | |
| 28. | 165-9140 | [2] | COVER-SERVO | |
| 29. | 6R-1703 | [1] | POPPET | |
| 30. | 1G-5730 | [1] | SPRING | |
| 31. | 161-6565 | [1] | PLUG | |
| 32. | 033-6027J | [1] | SEAL-O-RING | |
| 33. | 6R-1702 | [1] | NUT-SPECIAL(7/8-14-THD) | |
| 34. | 232-1533UY | [1] | PUMP GP-GEAR(CHARGE, CONVEYOR) | |
| 35. | 165-9766 | [1] | PLATE | |
| 36. | 165-9765N | [9] | PISTON | |
| 37. | 7X-9372J | [1] | SEAL-O-RING | |
| 38. | 3J-0695P | [2] | BEARING AS-NEEDLE | |
| 39. | 231-5214Q | [9] | PISTON | |
| 40. | 169-8602NQ | [2] | RETAINER | |
| 41. | 169-8600NQ | [2] | GUIDE-RETAINER | |
| 42. | 165-9762NQ | [6] | PIN | |
| 43. | 1G-7363NQ | [2] | RETAINER | |
| 44. | 1G-7359NQ | [2] | WASHER(25.4X38.18X6.5-MM THK) | |
| 45. | 1G-7360NQ | [2] | SPRING | |
| 46. | 7X-5470NQ | [2] | WASHER-SPECIAL | |
| 47. | 7X-5469NQ | [2] | RING-RETAINING | |
| 48. | 220-0555 | [1] | PLATE | |
| 49. | 222-3086 | [1] | RING-RETAINING | |
| 50. | 8T-7811M | [2] | BOLT-SOCKET HEAD(M12X1.75X50-MM) | |
| 51. | 232-1530 | [1] | COUPLING | |
| 52. | 222-3043 | [1] | BEARING AS-BALL | |
| 53. | 1G-7368 | [2] | BEARING AS-NEEDLE | |
| 54. | 129-3180M | [2] | LOCKNUT(M12X1.75-THD) | |
| 55. | 165-9139 | [4] | VALVE GP-CHECK & RELIEF(CONVEYOR PUMP) | |
| | | | (EACH INCLUDES) |
| 55A. | 217-3617 | [1] | SPRING | |
| 56. | 6V-5142JT | [4] | SEAL-O-RING | |
| 57. | 7X-5453JT | [4] | RING-BACKUP | |
| 58. | 2M-9780JT | [6] | SEAL-O-RING | |
| 59. | 232-1532 | [1] | SHAFT | |
| 60. | PZ | [2] | CAM |
| 61. | 220-0551 | [1] | COUPLING | |
| 62. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 63. | 5E-8789 | [1] | SEAL-LIP TYPE | |
| 64. | 171-9784 | [1] | SEAL-SHAFT | |
| 65. | 116-3873 | [1] | RING-RETAINING | |
| 66. | 6V-1196J | [1] | SEAL-O-RING | |
| 67. | 1J-6474L | [1] | RING-RETAINING(EXTERNAL) | |
| 68. | 171-9783L | [1] | BEARING-ROLLER | |
| 69. | 171-9797L | [2] | SHAFT | |
| 70. | QZ | [1] | CYLINDER BLOCK |
| 71. | NZ | [1] | CYLINDER BLOCK |
| 72. | Z | [4] | BEARING |
| 73. | Z | [2] | COVER |
| 74. | WZ | [2] | PISTON-SERVO |
| 75. | SZ | [2] | VALVE |
| 76. | SZ | [2] | SPRING |
| 77. | TZ | [4] | VALVE |
| 78. | HJWZ | [4] | SEAL-O-RING |
| 79. | HJWZ | [4] | RING-PISTON |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 165-9137W | [2] | KIT-SERVO PISTON(CONVEYOR PUMP) | |
| | 165-9761N | [1] | KIT-PUMP ROTATING GROUP(CONVEYOR PUMP) | |
| | 232-1529Q | [1] | KIT-PUMP ROTATING GROUP(CONVEYOR PUMP) | |
| | 116-2005T | [4] | KIT-VALVE PLUG(CONVEYOR PUMP) | |
| | 171-9785L | [1] | KIT-SHAFT(CONVEYOR PUMP) | |
| | 232-1531S | [2] | KIT-VALVE(CONVEYOR PUMP) | |
| | 232-1566J | [1] | KIT-SEAL(CONVEYOR PUMP) | |
| | 165-9123P | [2] | KIT-BEARING(CONVEYOR PUMP) | |
| | 165-9138H | [2] | KIT-PISTON RING(CONVEYOR PUMP) | |
| | 232-2603U | [1] | KIT-SEAL(GEAR PUMP)(CHARGE, CONVEYOR) | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Q | | KIT MARKED Q SERVICES PART(S) MARKED Q |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | W | | KIT MARKED W SERVICES PART(S) MARKED W |
| | Y | | SEPARATE ILLUSTRATION |
| | Z | | NOT SERVICED SEPARATELY |
