卡特零件查询（AP-655C） 198-6173: VALVE & MTG GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
277 次

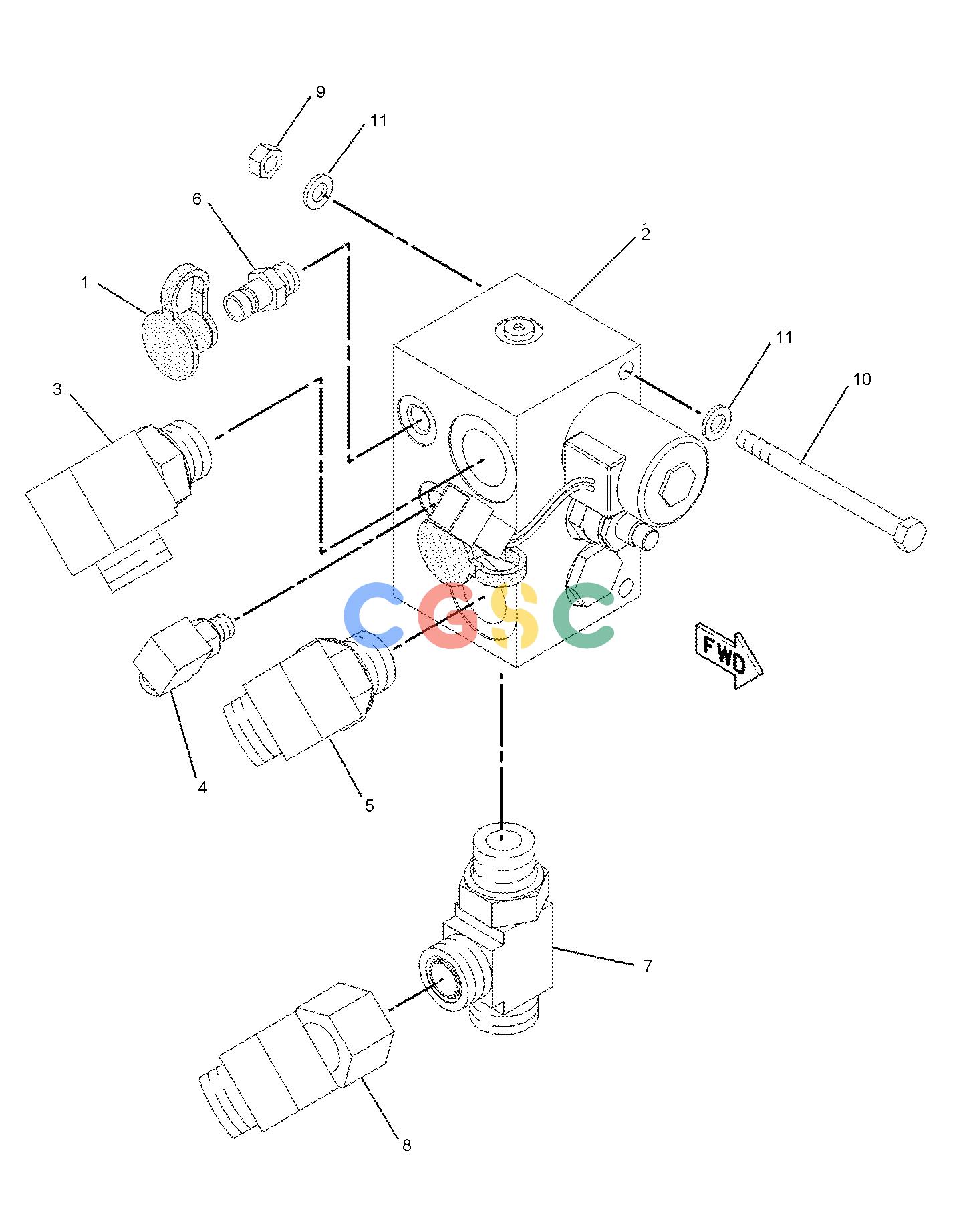

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 160-2451Y | [1] | VALVE GP-CONTROL(HYDRAULIC GENERATOR) | |
| 3. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 148-8369 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 5. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 7. | 164-5574 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8784 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 8. | 171-6723 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 9. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 10. | 7X-2538M | [2] | BOLT(M8X1.25X100-MM) | |
| 11. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
