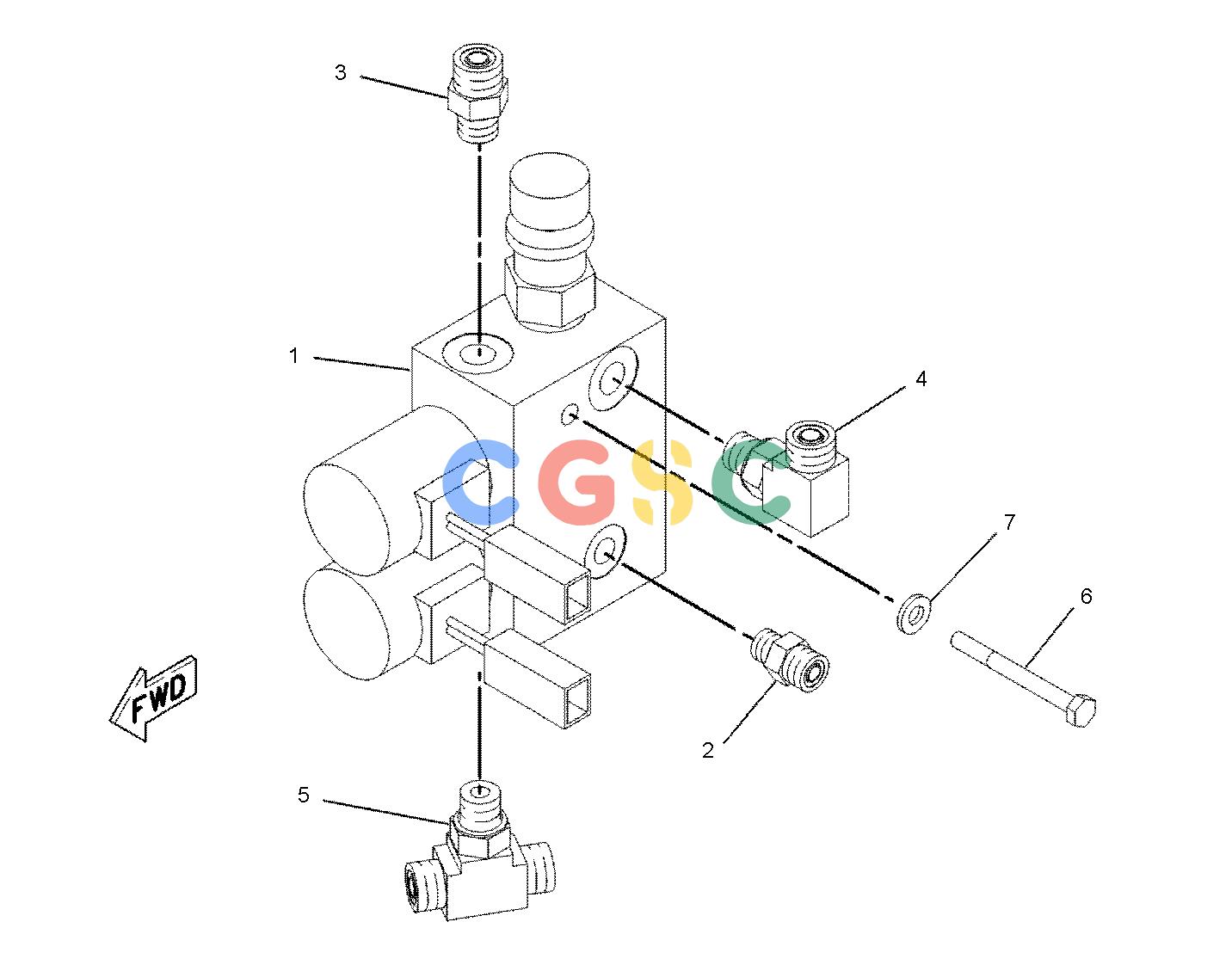

卡特零件查询（AP-655C） 194-2566: VALVE GP-COUNTERBALANCE
广数供应链运营团队, 16 02月, 2025，浏览：
350 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 169-0166Y | [1] | VALVE GP-COUNTERBALANCE(SCREED) | |
| 2. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 5. | 148-8439 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8774 | [1] | TEE | |
| 6. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 7. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
