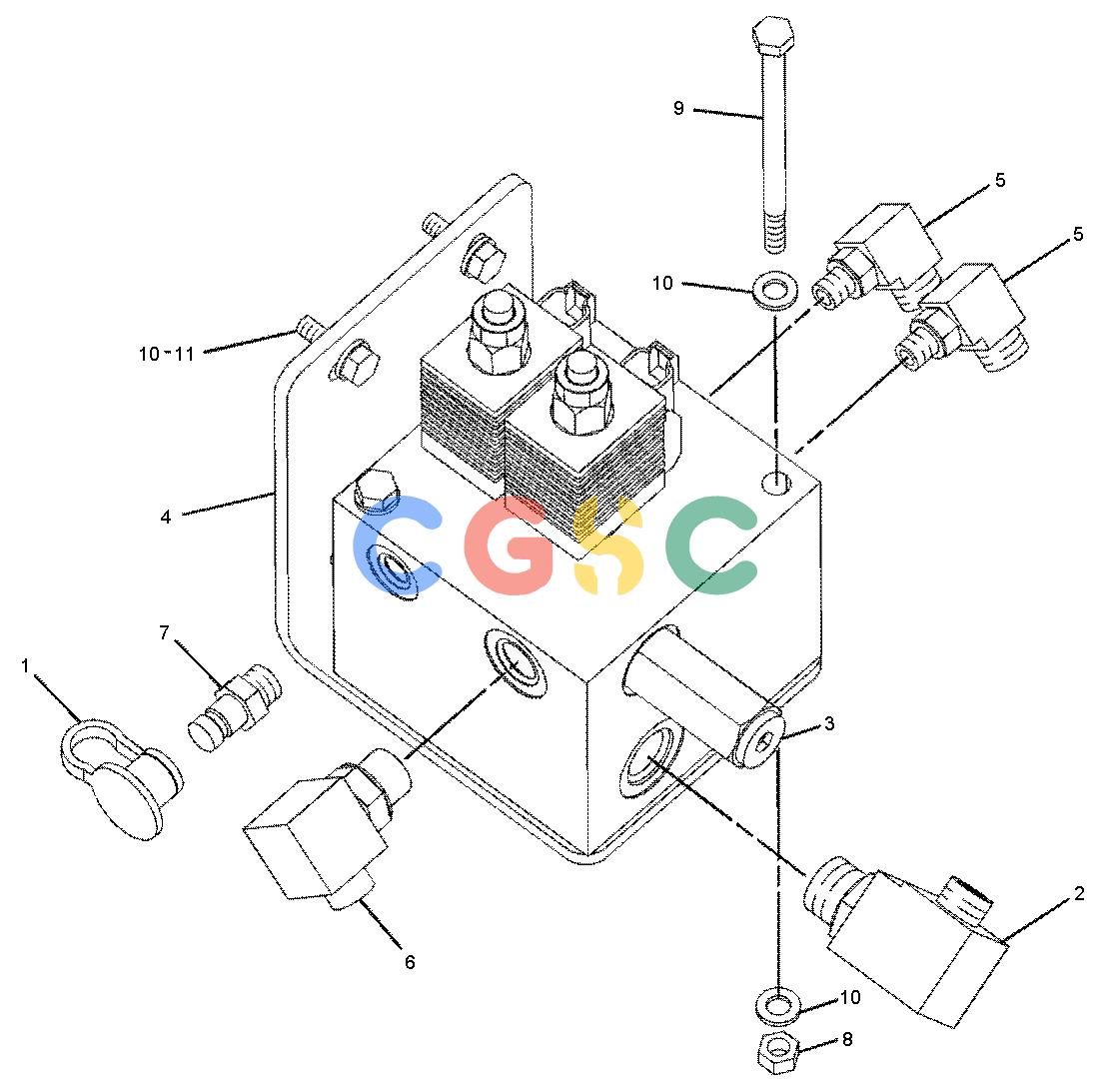

卡特零件查询（AP-655C） 247-1386: VALVE & MTG GP-TRUCK HITCH
广数供应链运营团队, 16 02月, 2025，浏览：
380 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 205-3692 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 3. | 230-9160Y | [1] | VALVE GP-CONTROL(TRUCK HITCH) | |
| 4. | 274-1505 | [1] | BRACKET | |
| 5. | 148-8361 | [2] | ELBOW AS(90-DEG) | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 6. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 7. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 8. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 9. | 7X-2540M | [2] | BOLT(M8X1.25X120-MM) | |
| 10. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
