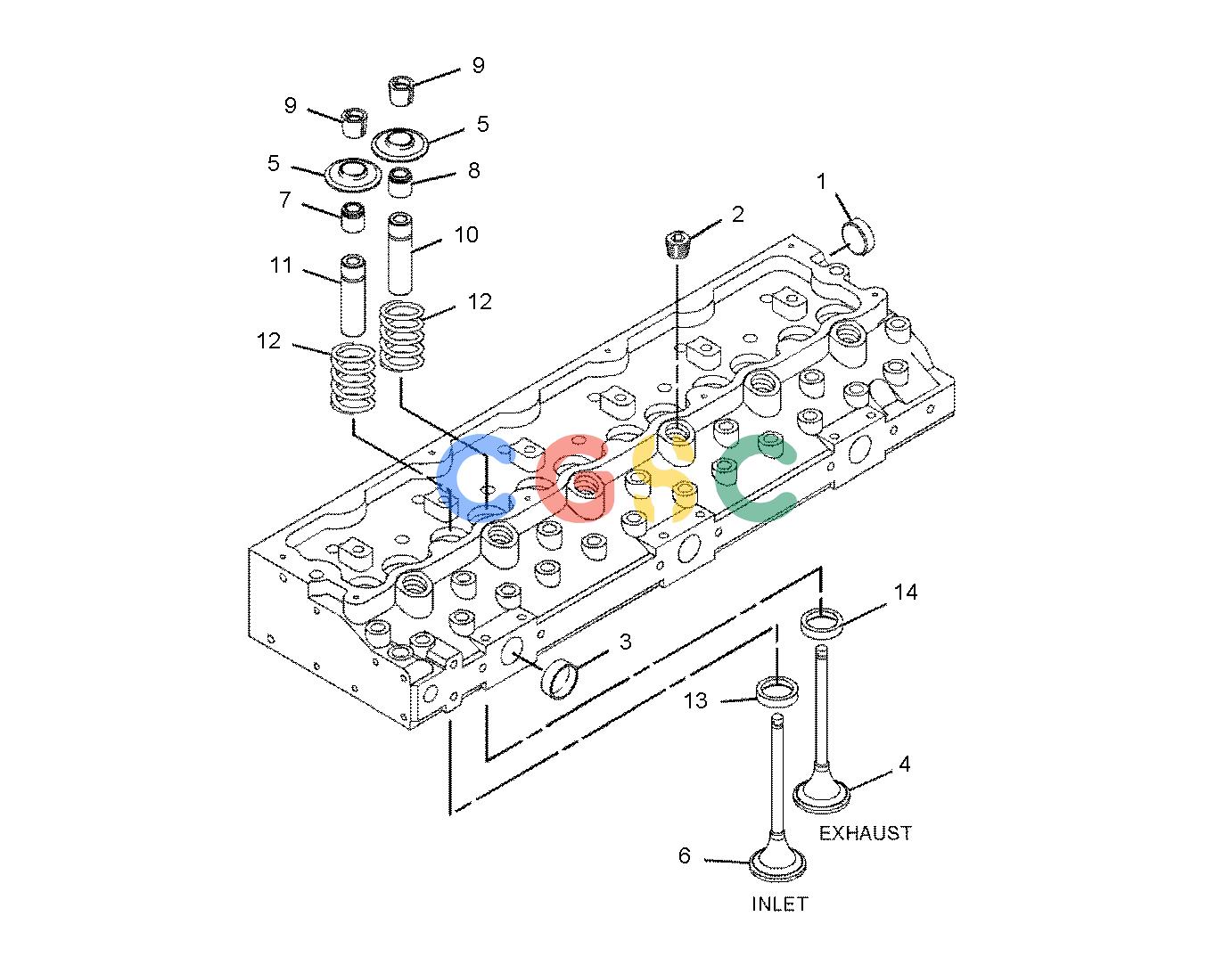

卡特零件查询（AP-655C） 216-8335: CYLINDER HEAD GP
广数供应链运营团队, 16 02月, 2025，浏览：
328 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 343-4295 | [1] | PLUG | |
| 2. | 7M-7410 | [6] | PLUG-PIPE | |
| 3. | 067-6043 | [3] | PLUG-SIDE | |
| 4. | 138-2050 | [6] | VALVE-EXHAUST | |
| 5. | 138-2060 | [12] | CAP | |
| 6. | 145-6855 | [6] | VALVE-INLET | |
| 7. | 145-6856 | [6] | SEAL(INLET) | |
| 8. | 145-6858 | [6] | SEAL(EXHAUST) | |
| 9. | 147-1979 | [24] | RETAINER-VALVE SPRING | |
| 10. | 163-9256 | [6] | GUIDE-VALVE(EXHAUST) | |
| 11. | 185-0882 | [6] | GUIDE-VALVE(INTAKE) | |
| 12. | 206-4127 | [12] | SPRING-VALVE | |
| 13. | 216-8332 | [6] | INSERT-VALVE SEAT(INLET) | |
| 14. | 216-8333 | [6] | INSERT-VALVE SEAT(EXHAUST) | |
