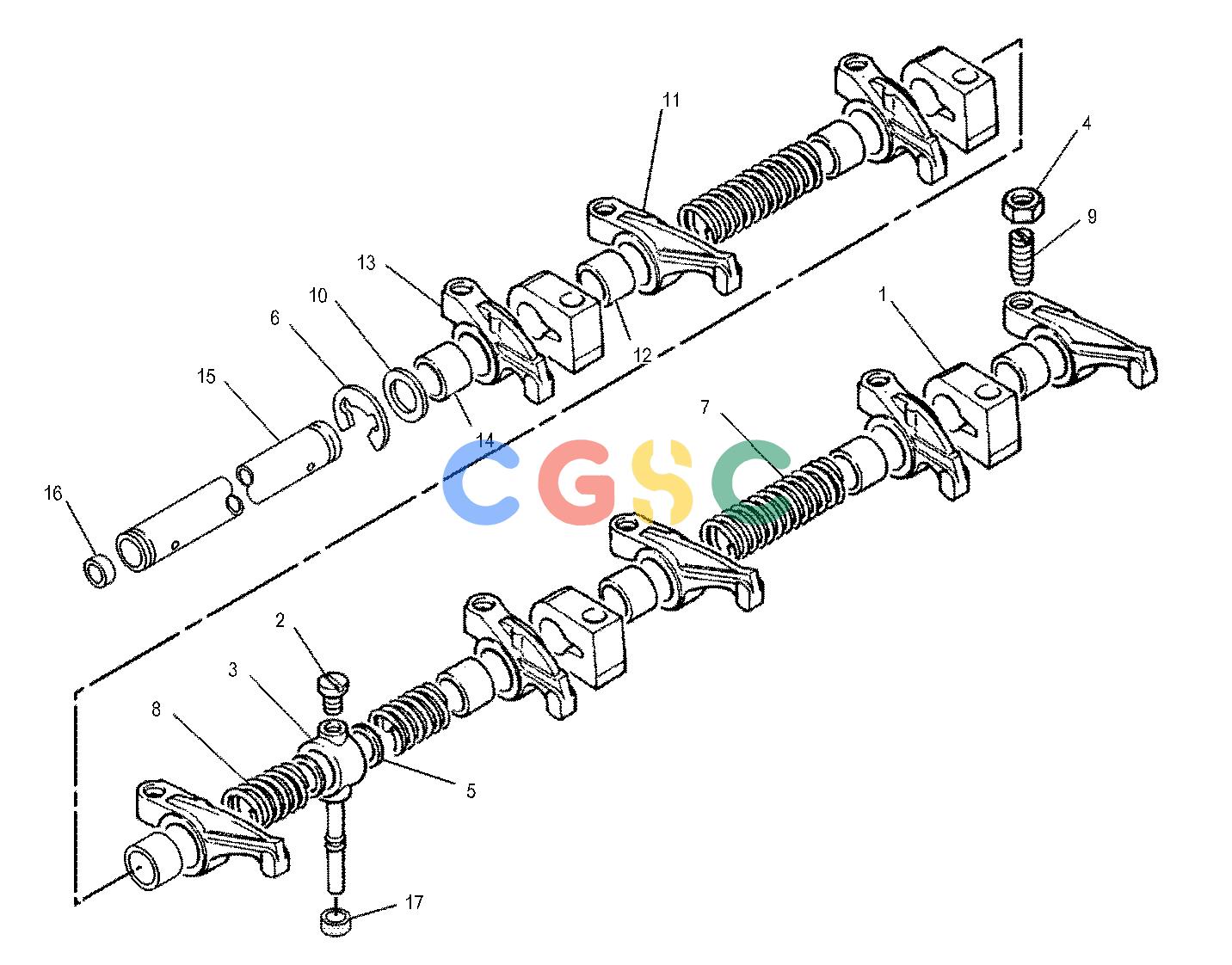

卡特零件查询（AP-655C） 146-8956: ROCKER ARM GP
广数供应链运营团队, 16 02月, 2025，浏览：
164 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-1206 | [6] | BRACKET-SHAFT | |
| 2. | 6I-3717 | [1] | BOLT(10X0.5-IN) | |
| 3. | 6I-3718 | [1] | CONNECTION-FEED | |
| 4. | 6V-8183 | [12] | NUT-FULL(3/8-24-THD) | |
| 5. | 195-7004B | [2] | SHIM | |
| 6. | 006-8606 | [2] | RING-RETAINING | |
| 7. | 067-6087 | [4] | SPRING-SHAFT | |
| 8. | 067-6088 | [2] | SPRING-SHAFT | |
| 9. | 185-1546 | [8] | SCREW | |
| 10. | 138-2054 | [2] | WASHER | |
| 11. | 209-0091 | [6] | LEVER AS(LH)(EXHAUST) | |
| | | | (EACH INCLUDES) |
| 12. | 209-0093 | [1] | BUSHING | |
| 13. | 209-0092 | [6] | LEVER AS(RH)(INTAKE) | |
| | | | (EACH INCLUDES) |
| 14. | 209-0093 | [1] | BUSHING | |
| 15. | 146-8957 | [1] | SHAFT AS(ROCKER ARM) | |
| 16. | 067-6083 | [2] | PLUG-SHAFT END | |
| 17. | 129-3493 | [1] | FERRULE | |
| | B | | USE AS REQUIRED |
