卡特零件查询（AP-655C） 221-5369: PUMP GP-WATER
广数供应链运营团队, 16 02月, 2025，浏览：
814 次

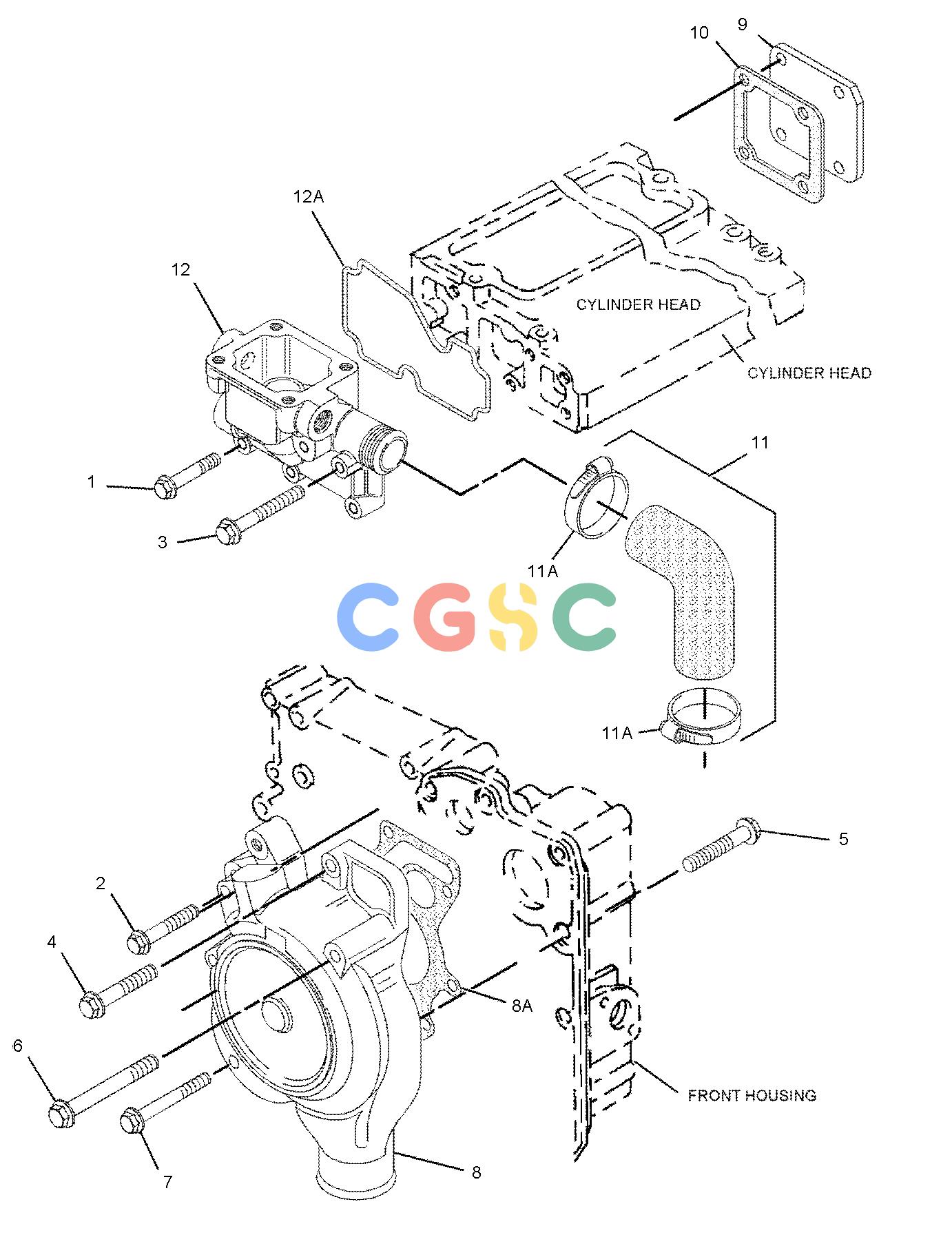

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0456M | [3] | BOLT(M8X1.25X45-MM) | |
| 2. | 6I-0645M | [3] | BOLT(M8X1.25X25-MM) | |
| 3. | 6I-4374M | [3] | BOLT(M8X1.25X60-MM) | |
| 4. | 6I-4793M | [1] | BOLT(M8X1.25X50-MM) | |
| 5. | 6I-0839M | [2] | BOLT(M8X1.25X70-MM) | |
| 6. | 101-3771M | [1] | BOLT(M8X1.25X85-MM) | |
| 7. | 101-3805M | [3] | BOLT(M8X1.25X90-MM) | |
| 8. | 234-6110 | [1] | PUMP GP-WATER | |
| 8A. | 201-8745 | [1] | GASKET(WATER PUMP) | |
| 9. | 140-7505 | [1] | COVER | |
| 10. | 140-7506 | [1] | GASKET-COVER | |
| 11. | 140-7512 | [1] | KIT-HOSE(WATER)(REGULATOR HOUSING) | |
| 11A. | 2S-3440 | [2] | CLAMP-HOSE | |
| 12. | 234-6862 | [1] | HOUSING AS | |
| 12A. | 234-6861 | [1] | GASKET-HOUSING(HOUSING) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 234-0636 | [1] | KIT-WATER PUMP | |
| | M | | METRIC PART |
