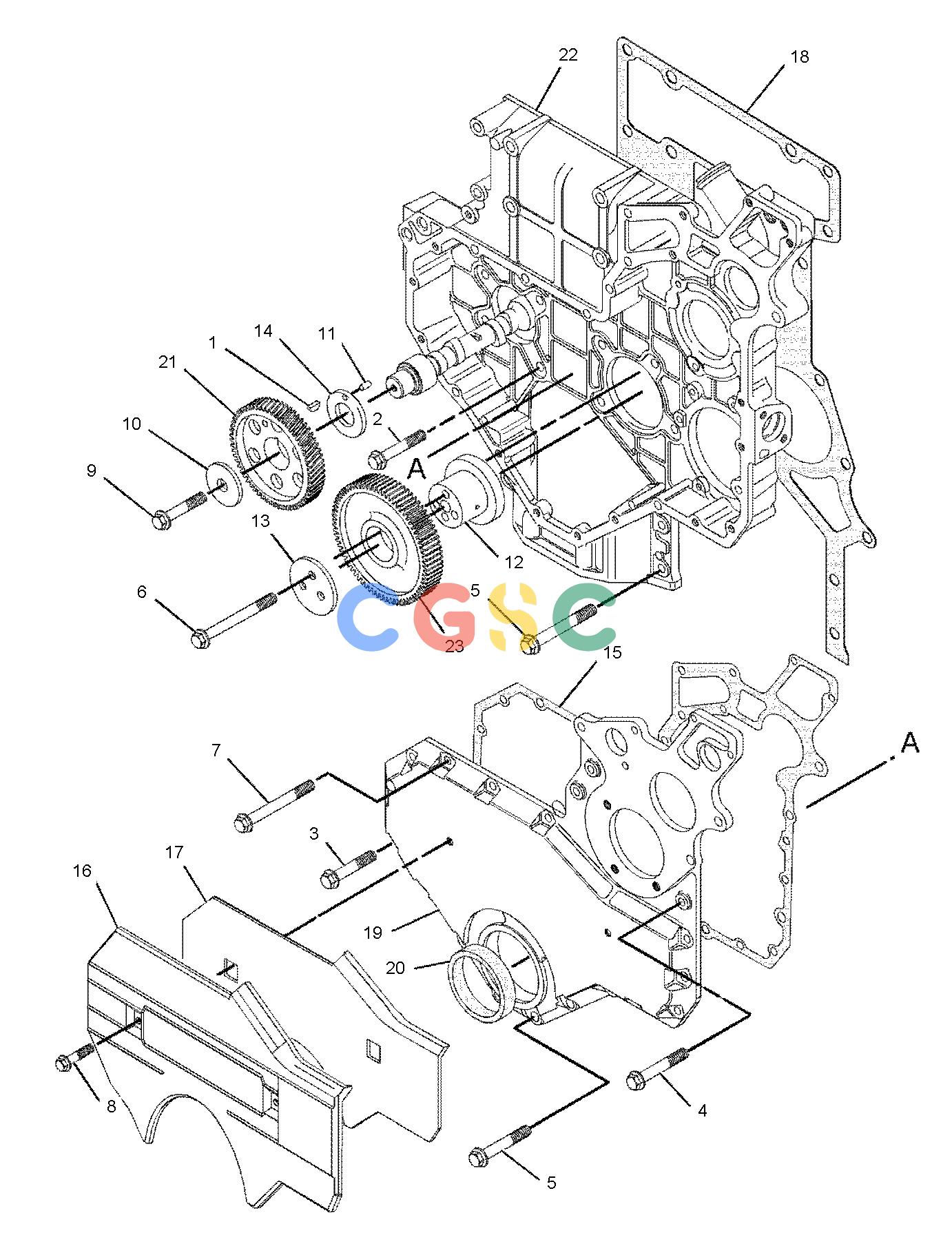

卡特零件查询（AP-655C） 221-6835: HOUSING GP-FRONT
广数供应链运营团队, 16 02月, 2025，浏览：
449 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-8736 | [1] | KEY-WOODRUFF | |
| 2. | 6I-0217M | [8] | BOLT(M8X1.25X20-MM) | |
| 3. | 6I-0254M | [6] | BOLT(M8X1.25X30-MM) | |
| 4. | 6I-0260M | [1] | BOLT(M8X1.25X25-MM) | |
| 5. | 6I-0645M | [3] | BOLT(M8X1.25X25-MM) | |
| 6. | 6I-0789M | [3] | BOLT(M10X1.5X60-MM) | |
| 7. | 6I-0839M | [6] | BOLT(M8X1.25X70-MM) | |
| 8. | 6I-0846M | [2] | BOLT(M6X1X14-MM) | |
| 9. | 7C-4616M | [1] | BOLT(M12X1.75X45-MM) | |
| 10. | 133-1011 | [1] | WASHER | |
| 11. | 067-6179 | [1] | DOWEL | |
| 12. | 067-6897 | [1] | HUB-IDLER GEAR | |
| 13. | 067-6900 | [1] | PLATE-RETAINING | |
| 14. | 067-6178 | [1] | WASHER-THRUST | |
| 15. | 140-7443 | [1] | GASKET-COVER | |
| 16. | 140-7444 | [1] | SHIELD | |
| 17. | 140-7445 | [1] | DAMPER | |
| 18. | | [1] | GASKET |
| 19. | 183-6317 | [1] | COVER AS-FRONT | |
| 20. | 288-0422 | [1] | SEAL-OIL | |
| 21. | 216-8634 | [1] | GEAR-CAMSHAFT(68-TEETH) | |
| 22. | 216-8632 | [1] | HOUSING-FRONT | |
| 23. | 251-4336 | [1] | GEAR AS-IDLER(73-TEETH) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 252-8739 | [1] | KIT-REPAIR(FRONT COVER, TIMING GEAR) | |
| | | | (INCLUDES FRONT SEAL, IDLER GEAR, HUB, PLATE, FRONT HOUSING COVER GASKET & WATER PUMP GASKET) |
| | M | | METRIC PART |
