卡特零件查询（AP-655C） 194-0876: ALTERNATOR GP-CHARGING
广数供应链运营团队, 16 02月, 2025，浏览：
1010 次

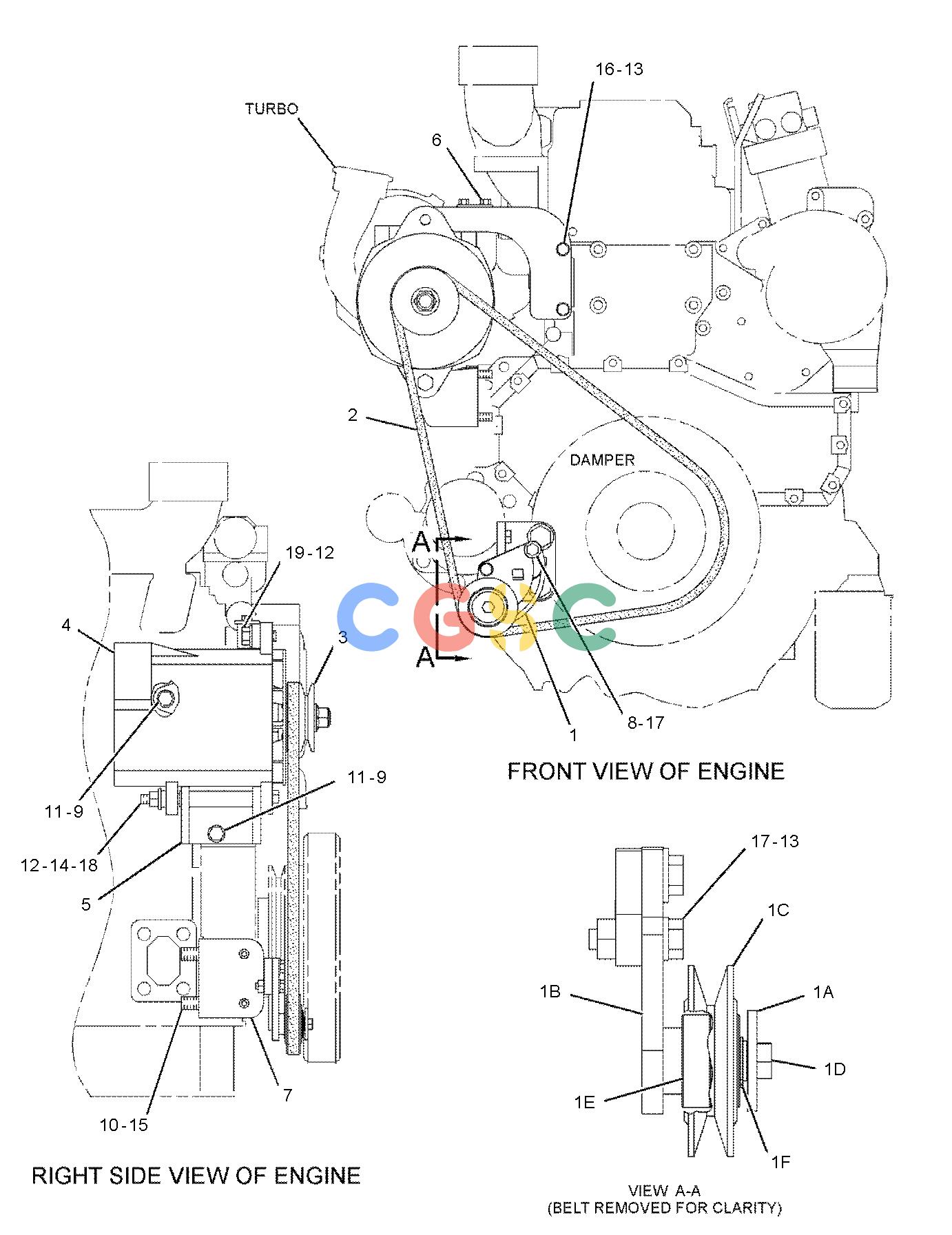

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-4033 | [1] | PULLEY AS-IDLER | |
| 1A. | 4F-3714 | [1] | WASHER(0.375X1.5X0.135-IN THK) | |
| 1B. | 9Y-4658 | [1] | PLATE AS-IDLER | |
| 1C. | 115-4237 | [1] | PULLEY-IDLER | |
| 1D. | 6V-5215M | [1] | BOLT(M8X1.25X16-MM) | |
| 1E. | 156-1871 | [2] | BALL BEARING | |
| 1F. | 2L-8509 | [1] | RING-LOCK | |
| 2. | 9L-0894 | [1] | V-BELT(ALTERNATOR) | |
| 3. | 9L-1080 | [1] | PULLEY(2-GROOVE) | |
| 4. | 114-2401Y | [1] | ALTERNATOR GP-CHARGING(75-AMPERE) | |
| 5. | 195-0419 | [1] | SUPPORT AS-ALTERNATOR(LOWER) | |
| 6. | 195-0420 | [1] | SUPPORT AS-ALTERNATOR(UPPER) | |
| 7. | 195-6241 | [1] | BRACKET AS | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 8. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 11. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 15. | 8T-4779M | [2] | BOLT(M16X2X35-MM) | |
| 16. | 096-5866M | [2] | BOLT(M8X1.25X75-MM) | |
| 17. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 18. | 8T-7930M | [1] | BOLT(M12X1.75X160-MM) | |
| 19. | 8T-8917 | [1] | BOLT(1/2-13X1.25-IN) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
