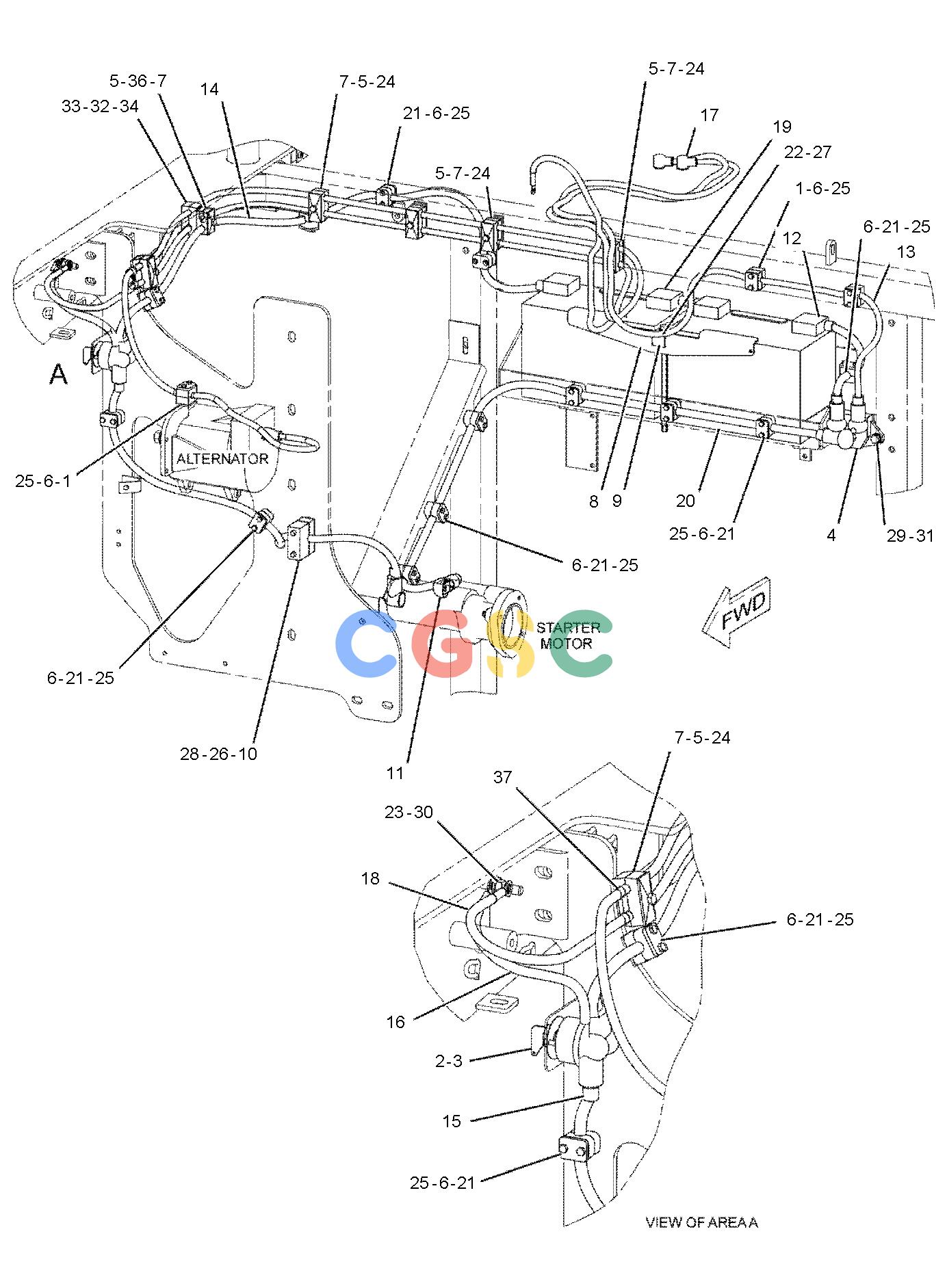

| 1. | 1G-8781 | [6] | CLAMP | |
| 2. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY)(DISCONNECT SWITCH) | |
| 3. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 4. | 9W-0742Y | [1] | BLOCK GP-JUNCTION(BATTERY) | |
| 5. | 102-8705 | [5] | PLATE(TOP) | |
| 6. | 107-4749 | [16] | PLATE | |
| 7. | 154-4882 | [12] | CLAMP-HALF | |
| 8. | 199-5720 | [2] | PLATE | |
| 9. | 200-6003 | [1] | BAR | |
| 10. | 207-3559 | [1] | BLOCK-CLAMP | |
| 11. | 209-5579 | [1] | CABLE AS | |
| | 159-8049E | | CABLE(00-GA, RED)(163-CM) | |
| | 1S-7251 | [2] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 8N-0869 | [2] | COVER-TERMINAL(RED) | |
| 12. | 209-5585 | [1] | CABLE AS | |
| | 159-8049E | | CABLE(00-GA, RED)(40-CM) | |
| | 8C-5917 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED)(RING) | |
| | 9G-0002 | [1] | COVER AS-TERMINAL(RED)(BATTERY) | |
| 13. | 209-5587 | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(219-CM) | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| | 6V-9023E | | TUBE-HEAT SHRINK(12.7-MM DIA)(3-CM) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8T-8799 | [1] | BOOT(RED)(RED) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 14. | 209-5588 | [1] | CABLE AS | |
| | 159-8050E | | CABLE(00-GA, BLACK)(156-CM) | |
| | 8T-9757 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 9G-0003 | [1] | COVER AS-TERMINAL(BLACK)(BATTERY) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK)(RING) | |
| 15. | 209-5589 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(125-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 9G-8909 | [2] | COVER-TERMINAL(BLACK) | |
| 16. | 225-4163 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(42-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 17. | 209-5593 | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(362-CM) | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 8T-8799 | [2] | BOOT(RED) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 18. | 209-5595 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(265-CM) | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| | 6V-9023E | | TUBE-HEAT SHRINK(12.7-MM DIA)(3-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW)(FOR 1/4 IN BOLT) | |
| 19. | 212-9517 | [1] | CABLE AS | |
| | 159-8049E | | CABLE(00-GA, RED)(14-CM) | |
| | 8C-5918 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 8T-9756 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 9G-0002 | [1] | COVER AS-TERMINAL(RED) | |
| | 9G-0005 | [1] | COVER AS-TERMINAL(BLACK) | |
| 20. | 115-2421 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, DRY) | |
| | | | (EACH INCLUDES) |
| | 123-1373 | [6] | CAP AS-FILLER(7/8-9-THD) | |
| 21. | 128-5531 | [26] | CLAMP-HALF | |
| 22. | 159-7463M | [2] | BOLT(M10X1.5X240-MM) | |
| 23. | 6V-7687M | [1] | LOCKNUT(M12X1.75-THD) | |
| 24. | 7X-0818M | [5] | BOLT(M8X1.25X45-MM) | |
| 25. | 7X-2533M | [32] | BOLT(M6X1X35-MM) | |
| 26. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 29. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 30. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 31. | 8T-5360 | [2] | WASHER(12X22.5X2.5-MM THK) | |
| 32. | 206-0452 | [1] | PLATE | |
| 33. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 34. | 156-5306 | [2] | CLAMP-HALF | |
| 35. | 102-8703 | [1] | PLATE-COVER | |
| 36. | 8T-4197M | [1] | BOLT(M8X1.25X40-MM) | |
| 37. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
