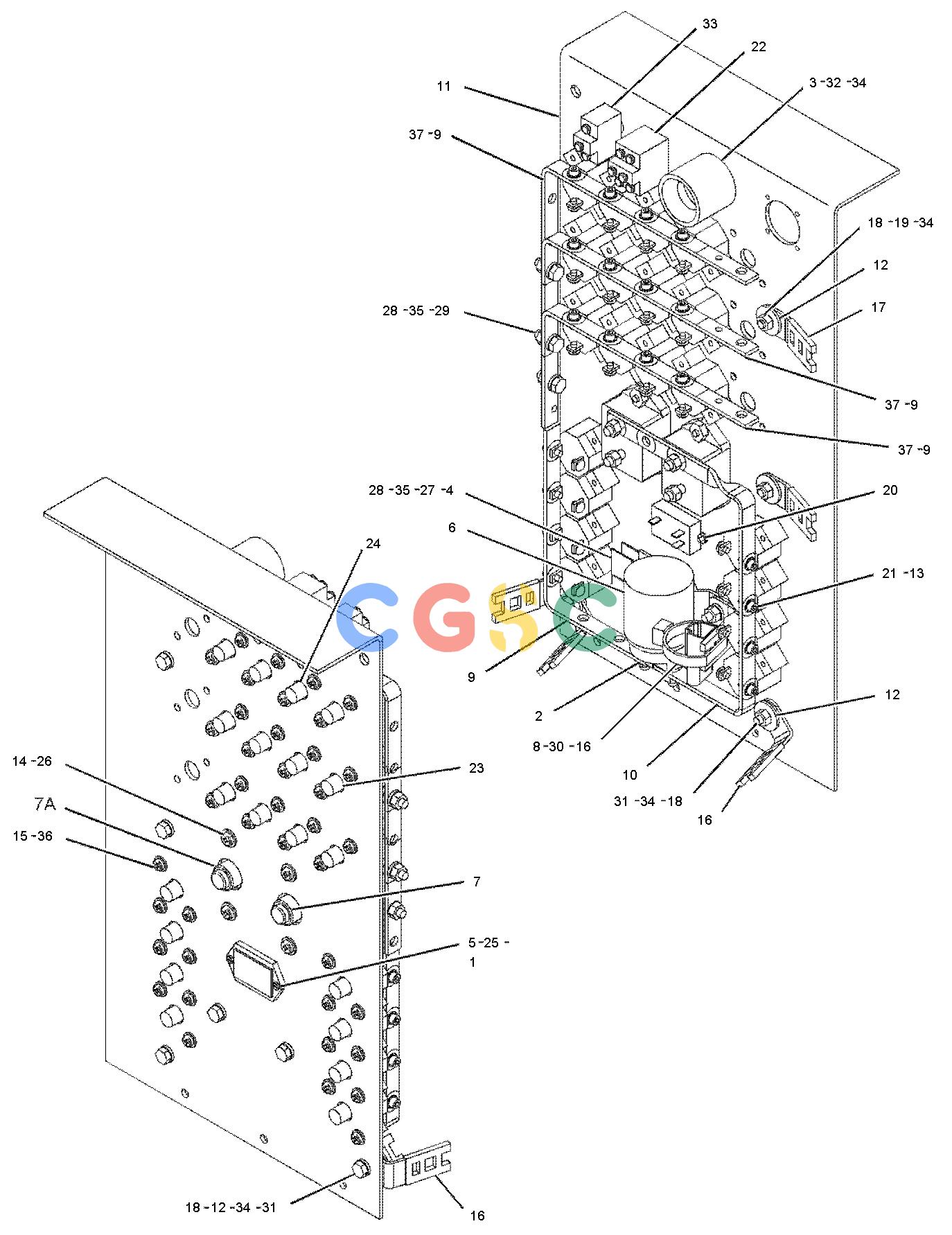

| 1. | 4I-3038 | [2] | WASHER(3.3X8X0.5-MM THK) | |
| 2. | 7H-3937 | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 3. | 8Y-5726 | [1] | SOCKET-LATCH | |
| 4. | 116-0118 | [1] | CLIP(SLOT) | |
| 5. | 214-2465 | [1] | KIT-SERVICE METER(24-VOLT) | |
| | 6V-8927 | [2] | BOLT-SOCKET HEAD(6-32X0.5-IN) | |
| | 7D-6922 | [2] | LOCKNUT(6-32-THD) | |
| | 114-2505 | [1] | FILM-IDENTIFICATION(SERVICE METER) | |
| 6. | 167-0138Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(MAIN RELAY) | |
| 7. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(MAIN) | |
| 7A. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(ALTERNATOR) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 1H-3244 | [2] | LOCKWASHER | |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 8. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 9. | 191-1556 | [4] | BAR-BUS | |
| 10. | 191-2358 | [1] | BAR-BUS | |
| 11. | 194-7127 | [1] | PLATE | |
| 12. | 117-8929 | [4] | WASHER(6.6X22X2-MM THK) | |
| 13. | 1H-4393 | [20] | LOCKWASHER | |
| 14. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 15. | 4B-4863 | [40] | WASHER(4.7X11X1.2-MM THK) | |
| 16. | 4P-7429 | [4] | CLIP(LADDER)(LADDER) | |
| 17. | 4P-7581 | [2] | CLIP(LADDER)(LADDER) | |
| 18. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 19. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 20. | 6B-4540 | [2] | NUT(4-40-THD) | |
| 21. | 6D-3031 | [20] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 22. | 6T-1767 | [1] | SWITCH GP-TOGGLE(SERVICE MODE) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 23. | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(EXTENDER, RH) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(GRADE) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(EXTENDER, LH) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(SCREED) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(SPRAY PUMP) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(IMPLEMENT) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(VIBRATORY) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(LIGHTS) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(PROPEL) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(DISPLAY) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(AUTO BURNER) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(ENGINE) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(HORN) | |
| | 6T-3643 | [1] | CIRCUIT BREAKER AS(15-AMPERE)(STARTING AID) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 24. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(GENERATOR) | |
| | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(FAN BLOWER) | |
| | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(WORK LIGHTS) | |
| | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(AIR INLET HEATER) | |
| | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(THROTTLE) | |
| | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(CONTROLLER) | |
| | | | (EACH CIRCUIT BREAKER GP INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 25. | 6V-2480 | [2] | SCREW(4-40X0.5-IN) | |
| 26. | 6V-7978 | [4] | SCREW-MACHINE(10-32X0.375-IN) | |
| 27. | 6V-8214M | [2] | BOLT(M6X1X20-MM) | |
| 28. | 6V-8225M | [5] | NUT(M6X1-THD) | |
| 29. | 6V-8837M | [3] | BOLT(M6X1X16-MM) | |
| 30. | 7K-1181 | [1] | STRAP-CABLE | |
| 31. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 32. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 33. | 9G-0011 | [1] | SWITCH AS-TOGGLE(INCREMENT/STORE) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 34. | 9X-8256 | [5] | WASHER(6.6X12X2-MM THK) | |
| 35. | 9X-8267 | [10] | WASHER(6.6X12X2-MM THK) | |
| 36. | 9X-8486 | [40] | SCREW-MACHINE(8-32X0.75-IN) | |
| 37. | 6V-9023E | | TUBE-HEAT SHRINK(12.7-MM DIA)(5-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
