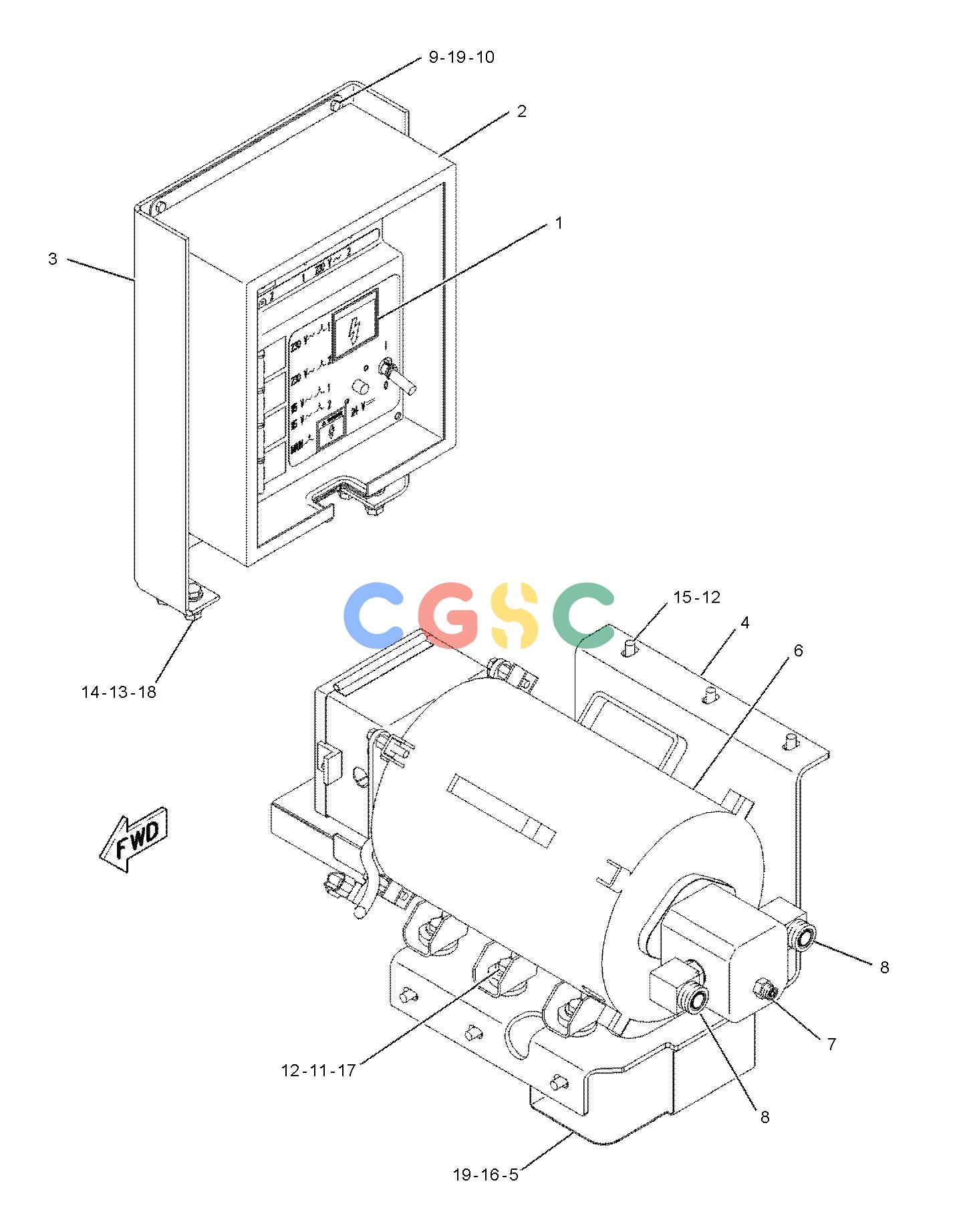

卡特零件查询（AP-655C） 160-4233: GENERATOR GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
754 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | JZ | [1] | PLATE |
| 2. | 177-4445J | [2] | SUPPORT | |
| 3. | 177-4446J | [6] | BRUSH | |
| 4. | 177-4447J | [2] | RETAINER | |
| 5. | 177-4448 | [2] | KIT-RECTIFIER | |
| 6. | 5P-7807T | [1] | BALL BEARING | |
| 7. | 177-4442T | [1] | RING-SLIP | |
| 8. | 6K-8162T | [1] | RING-RETAINING | |
| 9. | 177-4444T | [1] | FAN | |
| 10. | 178-7393 | [1] | PLATE-MOUNTING | |
| 11. | 6R-2203Y | [1] | MOTOR GP-GEAR | |
| 12. | 177-4450 | [6] | SHOCK ABSORBER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 178-7542T | [1] | KIT-REPAIR(GENERATOR ROTOR) | |
| | 178-7394J | [1] | KIT-PLATE | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | Y | | SEPARATE ILLUSTRATION |
| | Z | | NOT SERVICED SEPARATELY |
