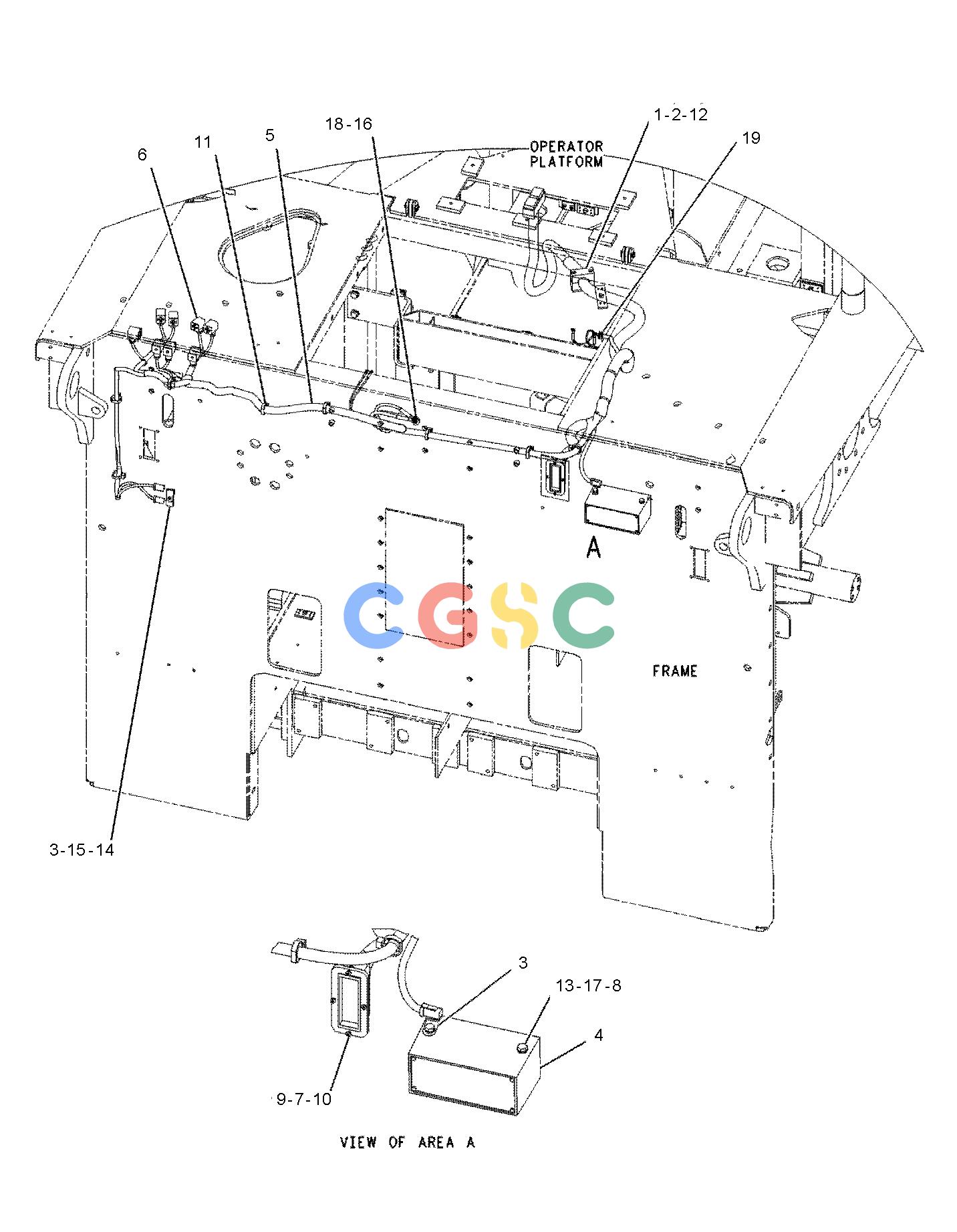

卡特零件查询（AP-655C） 192-5085: WIRING GP-MACHINE
广数供应链运营团队, 16 02月, 2025，浏览：
500 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7940 | [2] | CLAMP | |
| 2. | 7R-7951 | [1] | PLATE | |
| 3. | 116-0118 | [3] | CLIP(SLOT) | |
| 4. | 123-6449Y | [1] | ALARM GP(BACKUP) | |
| 5. | 186-6040Y | [1] | HARNESS AS-WIRING(MAIN) | |
| 6. | 166-7658 | [8] | GASKET | |
| 7. | 3B-4501 | [4] | LOCKWASHER | |
| 8. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 9. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 10. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 11. | 7K-1181 | [11] | STRAP-CABLE | |
| 12. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 13. | 7X-2538M | [2] | BOLT(M8X1.25X100-MM) | |
| 14. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 16. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 19. | 9D-8508 | [1] | GROMMET | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
