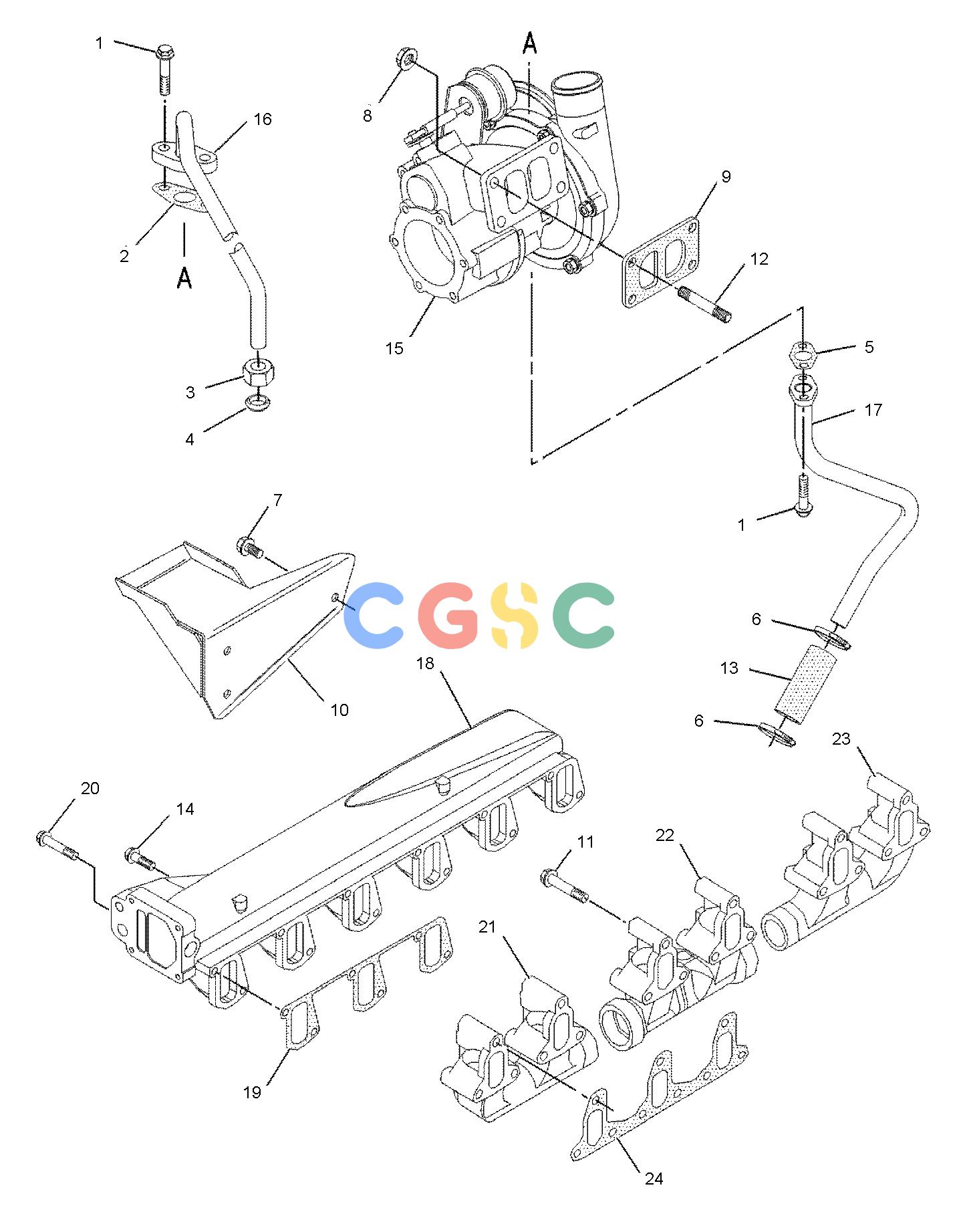

卡特零件查询（AP-655C） 219-1853: TURBOCHARGER GP
广数供应链运营团队, 16 02月, 2025，浏览：
710 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 2. | 6I-1132 | [1] | GASKET | |
| 3. | 7W-2628 | [1] | NUT | |
| 4. | 032-8048 | [1] | FERRULE | |
| 5. | 100-4466 | [1] | GASKET | |
| 6. | 5D-1026 | [1] | CLAMP-BAND | |
| 7. | 124-3815M | [3] | BOLT(M8X1.25X16-MM) | |
| 8. | 138-2042M | [4] | LOCKNUT(M10X1.5-THD) | |
| 9. | 141-8589 | [1] | GASKET(TURBOCHARGER) | |
| 10. | 141-9777 | [1] | SHIELD-HEAT | |
| 11. | 146-1841 | [18] | BOLT | |
| 12. | 147-5553 | [4] | STUD | |
| 13. | 160-0149 | [1] | HOSE | |
| 14. | 162-1504 | [6] | BOLT | |
| 15. | 216-8685 | [1] | TURBOCHARGER GP | |
| 16. | 216-8686 | [1] | TUBE AS | |
| 17. | 216-8690 | [1] | TUBE AS | |
| 18. | 216-8699 | [1] | MANIFOLD-INLET | |
| 19. | 216-8703 | [2] | GASKET-MANIFOLD | |
| 20. | 216-8705 | [6] | BOLT | |
| 21. | 216-8708 | [1] | MANIFOLD-EXHAUST | |
| 22. | 216-8709 | [1] | MANIFOLD-EXHAUST | |
| 23. | 216-8710 | [1] | MANIFOLD-EXHAUST | |
| 24. | 216-8712 | [2] | GASKET-MANIFOLD | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
