卡特零件查询（AP-655C） 164-8505: LINES GP-FUEL
广数供应链运营团队, 16 02月, 2025，浏览：
597 次

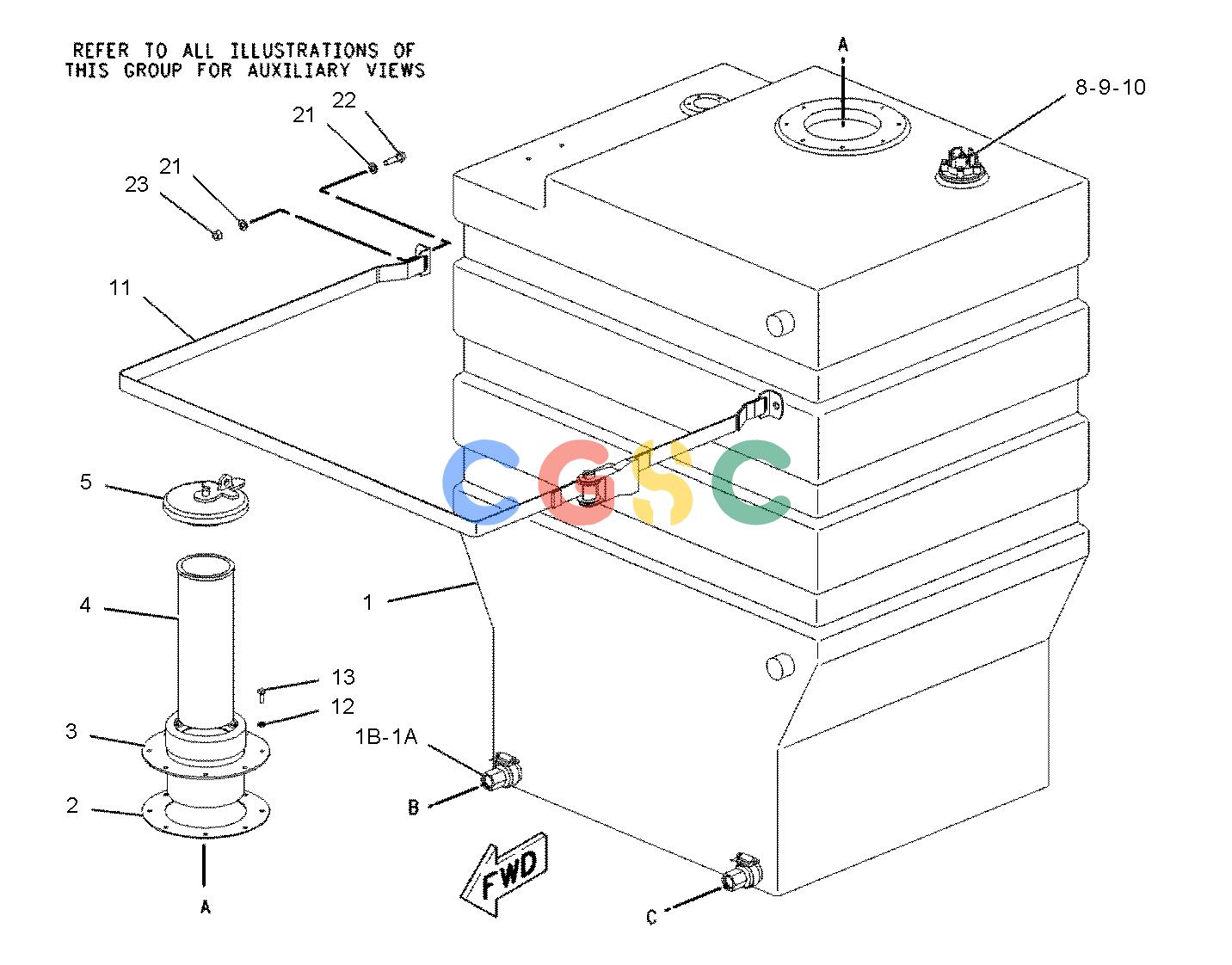

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-7797 | [1] | TANK AS-FUEL | |
| 1A. | 9M-7958 | [2] | CLAMP-HOSE | |
| 1B. | 170-3528 | [2] | ADAPTER | |
| 2. | 160-7100 | [1] | GASKET | |
| 3. | 200-3208 | [1] | FILLER AS-FUEL | |
| 4. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 5. | 164-4858Y | [1] | CAP GP-FUEL FILLER(EXTREME SERVICE, LOCKABLE) | |
| 6. | 8T-0081 | [3] | VALVE-BALL | |
| | 3K-0360 | [3] | SEAL-O-RING | |
| 7. | 148-8318 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 8. | 196-3830 | [1] | SENDER GP-FUEL LEVEL | |
| 9. | 8T-0328 | [5] | WASHER-HARD(5.5X10X1-MM THK) | |
| 10. | 6V-2313M | [5] | BOLT(M5X0.8X30-MM) | |
| 11. | 209-3602 | [1] | STRAP AS | |
| 12. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 13. | 5C-9553M | [8] | BOLT(M6X1X16-MM) | |
| 14. | 154-0011I | [1] | HOSE AS | |
| 15. | 149-0518I | [1] | HOSE AS | |
| 16. | 150-3056 | [1] | TEE AS | |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 6V-8788 | [1] | TEE | |
| 17. | 165-4934 | [1] | PLUG AS | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 18. | 156-3618 | [8] | CLAMP-HALF | |
| 19. | 102-8703 | [4] | PLATE-COVER | |
| 20. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 21. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 8T-7547M | [5] | BOLT(M8X1.25X30-MM) | |
| 23. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 24. | 149-2683Y | [1] | SEPARATOR GP-WATER | |
| 25. | 8M-2773 | [2] | CLIP(LOOP)(LARGE) | |
| 26. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 28. | 148-8336 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 29. | 6K-8178 | [2] | CLIP(LOOP) | |
| 30. | 067-2551 | [2] | CLIP | |
| 31. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 32. | 151-2500I | [1] | HOSE AS | |
| 33. | 203-9096 | [1] | TUBE AS | |
| 34. | 6V-8397 | [1] | SEAL-O-RING | |
| 35. | 148-8332 | [1] | ADAPTER AS | |
| | 8T-5043 | [1] | ADAPTER | |
| | 1J-9671 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 36. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 37. | 149-0518I | [1] | HOSE AS | |
| 38. | 194-2027I | [1] | HOSE AS | |
| 39. | 216-7143 | [1] | PLATE | |
| 40. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 41. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 42. | 165-4931 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 43. | 148-8307 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-8874 | [1] | ADAPTER | |
| 44. | 148-8407 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
