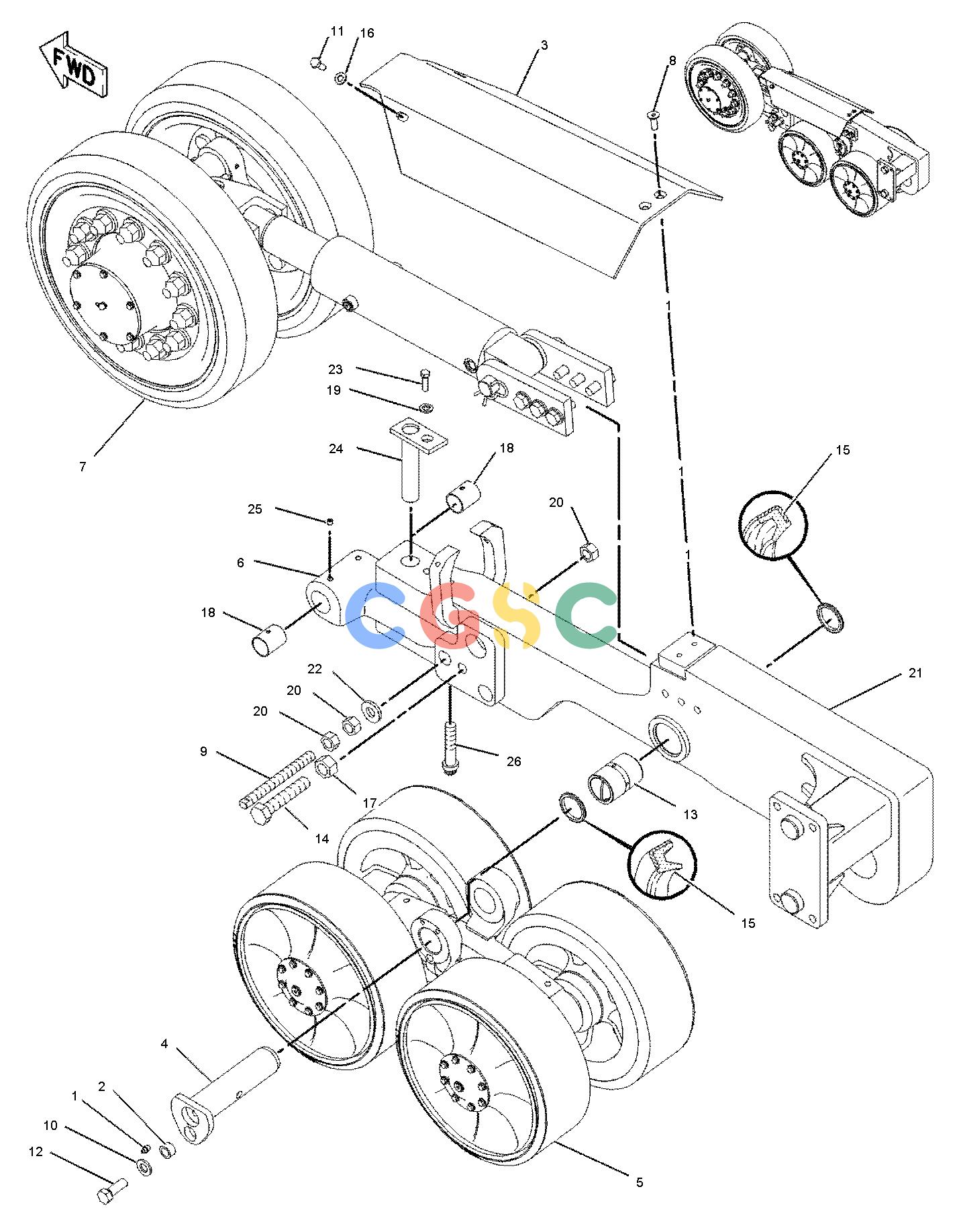

卡特零件查询（AP-655C） 187-3170: FRAME GP-TRACK ROLLER
广数供应链运营团队, 16 02月, 2025，浏览：
122 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 6Y-8112 | [1] | SPACER(17X25X14-MM THK) | |
| 3. | 179-6981 | [1] | COVER | |
| 4. | 180-2628 | [1] | PIN AS | |
| 5. | 187-3073Y | [1] | BOGIE GP | |
| 6. | 179-6983 | [1] | ARM(ADJUSTMENT) | |
| 7. | 188-0535Y | [1] | TENSIONER GP-TRACK(IDLER HUB) | |
| 8. | 3E-4310M | [2] | SCREW-HEX HEAD(M10X1.5X30-MM) | |
| 9. | 190-6176 | [1] | ROD | |
| 10. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 11. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-7338M | [1] | BOLT(M16X2X45-MM) | |
| 13. | 206-2615 | [1] | BUSHING | |
| 14. | 152-0191M | [1] | BOLT(M24X3X120-MM) | |
| 15. | 9D-6583 | [2] | SEAL-LIP TYPE | |
| 16. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-4001M | [1] | NUT(M24X3-THD) | |
| 18. | 108-4159 | [2] | BUSHING | |
| 19. | 8T-4123 | [1] | WASHER(3.62X5.75X0.375-MM THK) | |
| 20. | 8T-4131M | [3] | NUT(M20X2.5-THD) | |
| 21. | 180-2917 | [1] | PLATE AS | |
| 22. | 8T-5439 | [1] | WASHER-HARD(21.5X45X6-MM THK) | |
| 23. | 8T-5460M | [1] | BOLT(M20X2.5X40-MM) | |
| 24. | 187-3538 | [1] | PIN AS | |
| 25. | 9F-2247 | [2] | PLUG-PIPE | |
| 26. | 9X-6480M | [2] | BOLT(M20X2.5X90-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
