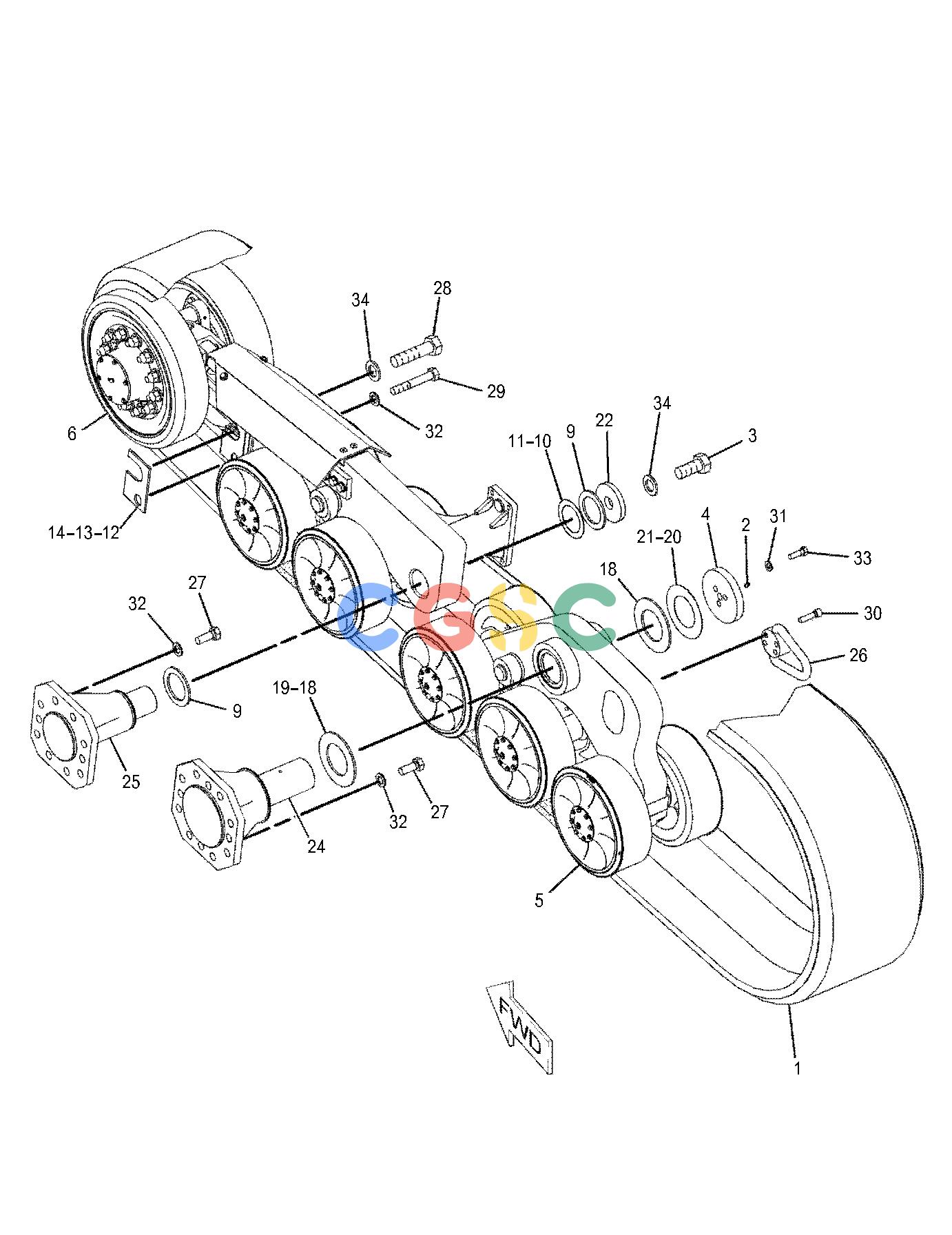

卡特零件查询（AP-655C） 188-1612: FRAME GP-TRACK ROLLER
广数供应链运营团队, 16 02月, 2025，浏览：
741 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 294-0601 | [1] | TRACK-RUBBER(TREAD) | |
| 2. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 160-6513M | [1] | BOLT(M36X4X80-MM) | |
| 4. | 180-2627 | [1] | PLATE | |
| 5. | 180-5708Y | [1] | FRAME GP-TRACK ROLLER(RH REAR) | |
| 6. | 180-5709Y | [1] | FRAME GP-TRACK ROLLER(RH FRONT) | |
| 9. | 190-2474B | [2] | SHIM(6.35-MM THK) | |
| 10. | 190-2475B | [2] | SHIM(3-MM THK) | |
| 11. | 190-2476B | [2] | SHIM(1.5-MM THK) | |
| 12. | 190-2477B | [2] | SHIM(6.35-MM THK) | |
| 13. | 190-2478B | [2] | SHIM(3-MM THK) | |
| 14. | 190-2479B | [2] | SHIM(1.5-MM THK) | |
| 18. | 190-2486B | [2] | SHIM(6.35-MM THK) | |
| 19. | 190-2487B | [2] | SHIM(3-MM THK) | |
| 20. | 190-2488B | [2] | SHIM(1.5-MM THK) | |
| 21. | 190-2489B | [2] | SHIM(0.45-MM THK) | |
| 22. | 190-2490 | [1] | PLATE | |
| 24. | 192-2864 | [1] | SHAFT | |
| 25. | 192-2865 | [1] | SHAFT | |
| 26. | 194-1850 | [1] | RING(HOIST) | |
| 27. | 7X-2575M | [22] | BOLT(M24X3X60-MM) | |
| 28. | 7Y-5265M | [1] | BOLT(M36X4X140-MM) | |
| 29. | 8C-3290M | [1] | BOLT(M24X3X150-MM) | |
| 30. | 8T-2393M | [4] | BOLT-SOCKET HEAD(M16X2X60-MM) | |
| 31. | 8T-4122 | [3] | WASHER-HARD(17X32X3.5-MM THK) | |
| 32. | 8T-4167 | [23] | WASHER-HARD(26X44X4-MM THK) | |
| 33. | 8T-4193M | [3] | BOLT(M16X2X50-MM) | |
| 34. | 9X-8259 | [2] | WASHER(39X66X6-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
