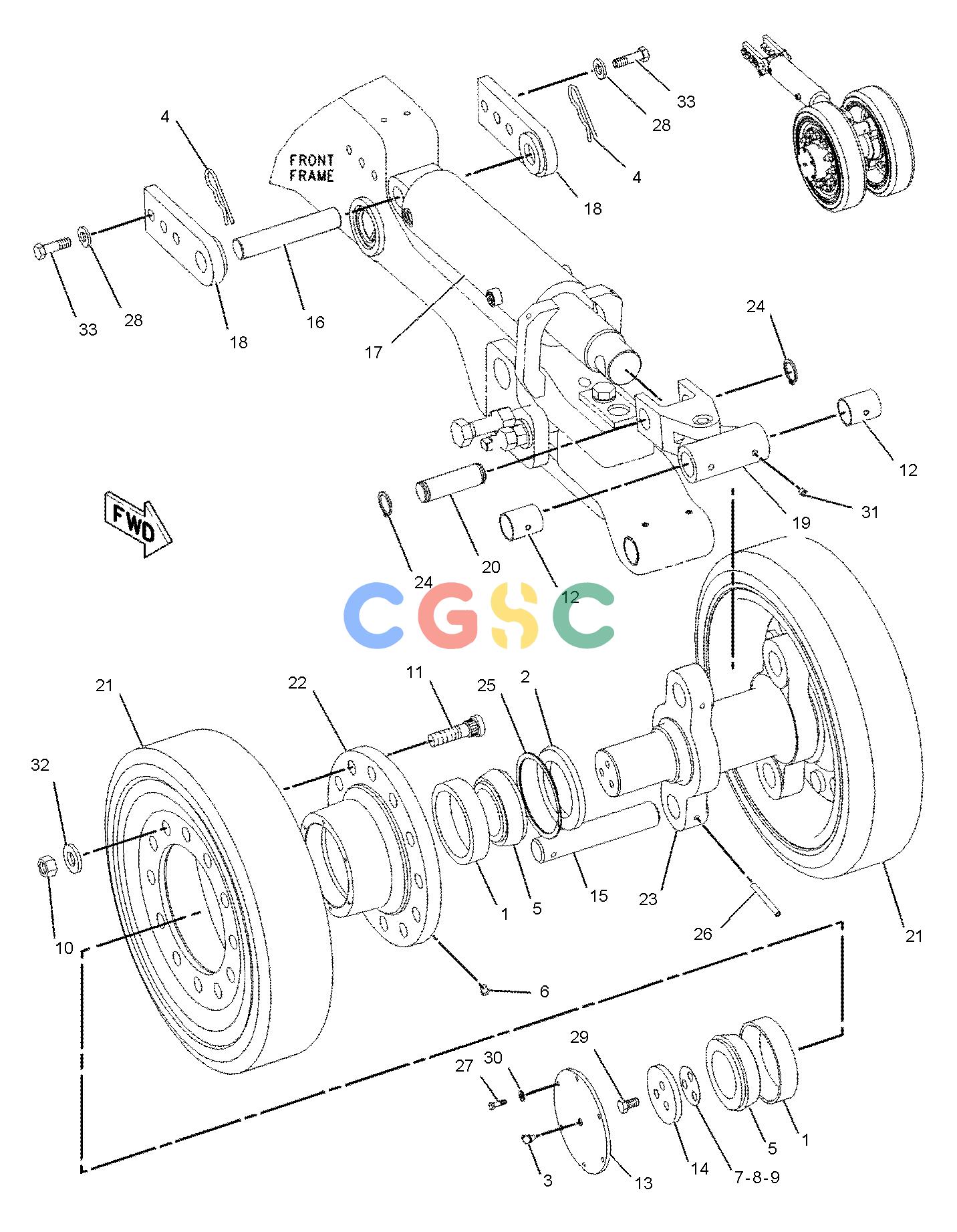

卡特零件查询（AP-655C） 188-0535: TENSIONER GP-TRACK
广数供应链运营团队, 16 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-3922 | [4] | CUP-BEARING | |
| 2. | 1J-4034 | [2] | SEAL-LIP TYPE | |
| 3. | 3B-8488 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 4. | 5P-8837 | [2] | LOCK PIN | |
| 5. | 6B-3183 | [4] | CONE-BEARING | |
| 6. | 6U-1989 | [2] | VALVE-RELIEF(HUB-IDLER) | |
| 7. | 7R-0229B | [4] | SHIM(0.005-IN THK) | |
| 8. | 7R-0230B | [4] | SHIM(0.007-IN THK) | |
| 9. | 7R-0231B | [8] | SHIM(0.02-IN THK) | |
| 10. | 8T-3573M | [24] | NUT(M20X1.5-THD) | |
| 11. | 054-7758 | [24] | STUD | |
| 12. | 108-4159 | [2] | BUSHING | |
| 13. | 108-4718 | [2] | PLATE | |
| 14. | 216-9237 | [2] | PLATE-END | |
| 15. | 109-1501 | [2] | PIN-PIVOT | |
| 16. | 109-2363 | [1] | PIN-CYLINDER | |
| 17. | 209-0513J | [1] | CYLINDER GP-HYDRAULIC(TRACK TENSIONER) | |
| 18. | 179-6987 | [2] | PLATE AS | |
| 19. | 179-9577 | [1] | LINK AS | |
| 20. | 180-3541 | [1] | PIN | |
| 21. | 189-9824 | [2] | TIRE AS | |
| | | | (EACH INCLUDES) |
| | 189-9822 | [1] | TIRE | |
| 22. | 191-9993 | [2] | HUB-IDLER | |
| 23. | 192-0230 | [1] | SHAFT-IDLER | |
| 24. | 036-4453 | [2] | RING-RETAINING | |
| 25. | 1M-8649 | [2] | RING-RETAINING | |
| 26. | 2K-1594 | [2] | PIN-SPRING(7.94X76.2-MM) | |
| 27. | 6V-7357M | [12] | BOLT(M6X1X25-MM) | |
| 28. | 8T-4122 | [6] | WASHER-HARD(17X32X3.5-MM THK) | |
| 29. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| 30. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 9F-2247 | [2] | PLUG-PIPE | |
| 32. | 8T-5439 | [24] | WASHER-HARD(21.5X45X6-MM THK) | |
| 33. | 8T-7338M | [6] | BOLT(M16X2X45-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 228-7949J | [1] | KIT-SEAL(BELT TENSIONER CYLINDER) | |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
