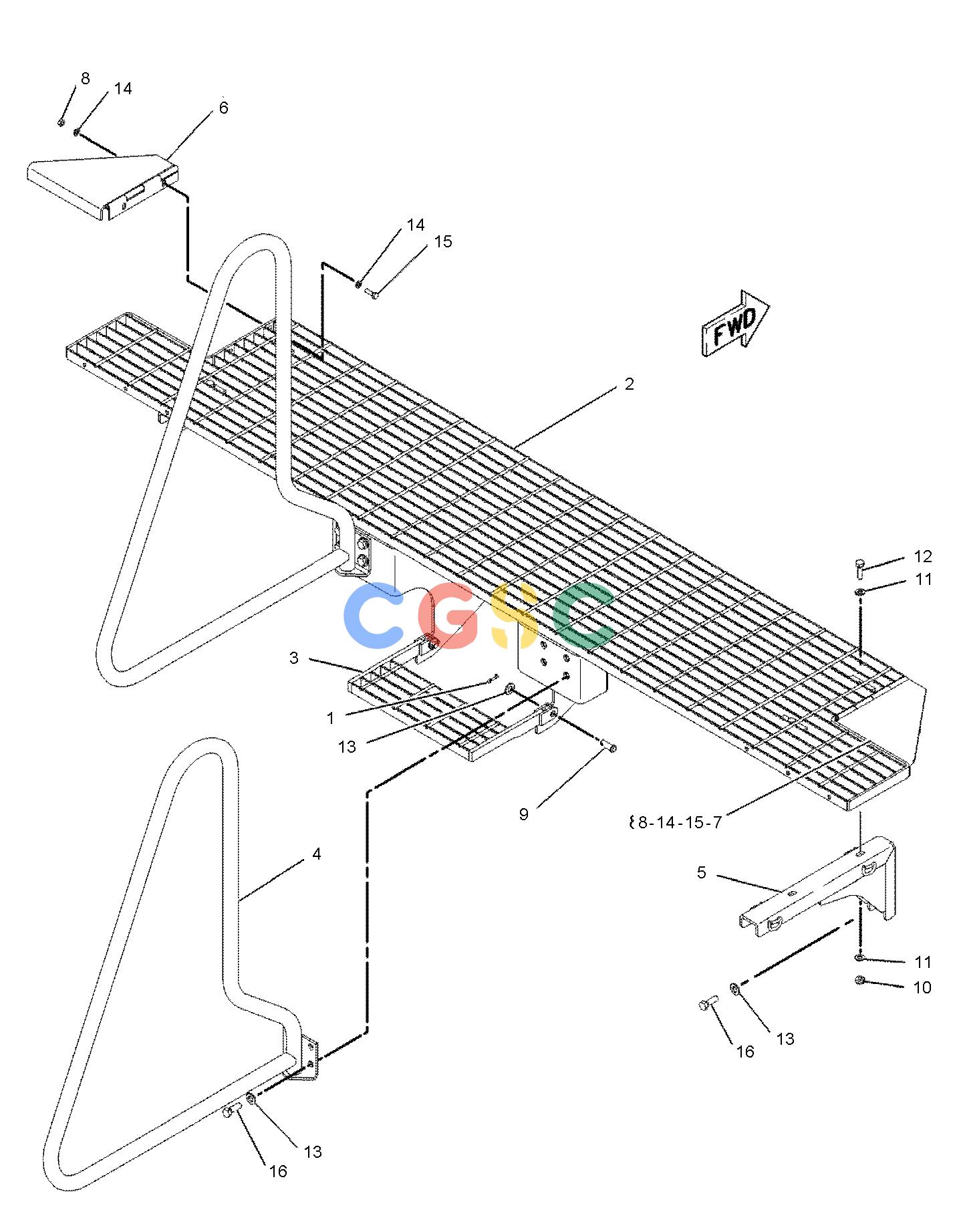

卡特零件查询（AP-655C） 205-6296: PLATFORM GP-OPERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
788 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-4617 | [2] | PIN-COTTER | |
| 2. | 205-4322 | [1] | PLATFORM AS | |
| | 8T-3597M | [8] | NUT-WELD(M12X1.75-THD) | |
| | | [4] | PLATE |
| | | [1] | PLATE |
| | | [1] | PLATE |
| | | [1] | GRATE |
| | | [2] | PLATE |
| | | [2] | BAR |
| 3. | 205-4327 | [1] | STEP AS | |
| | | [1] | GRATE |
| | | [2] | PLATE |
| | | [4] | PLATE |
| 4. | 205-4330 | [2] | HANDRAIL AS | |
| | | | (EACH INCLUDES) |
| | | [1] | PLATE |
| | | [1] | PIPE |
| | | [1] | PLATE |
| 5. | 205-4342 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 7T-1099 | [4] | LINK | |
| | | [2] | PLATE |
| | | [1] | CHANNEL |
| 6. | 210-2394 | [1] | COVER AS(LH) | |
| 7. | 210-2396 | [1] | COVER AS(RH) | |
| 8. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 9. | 6K-3427 | [2] | PIN | |
| 10. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 11. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 13. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 16. | 8T-4956M | [12] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
