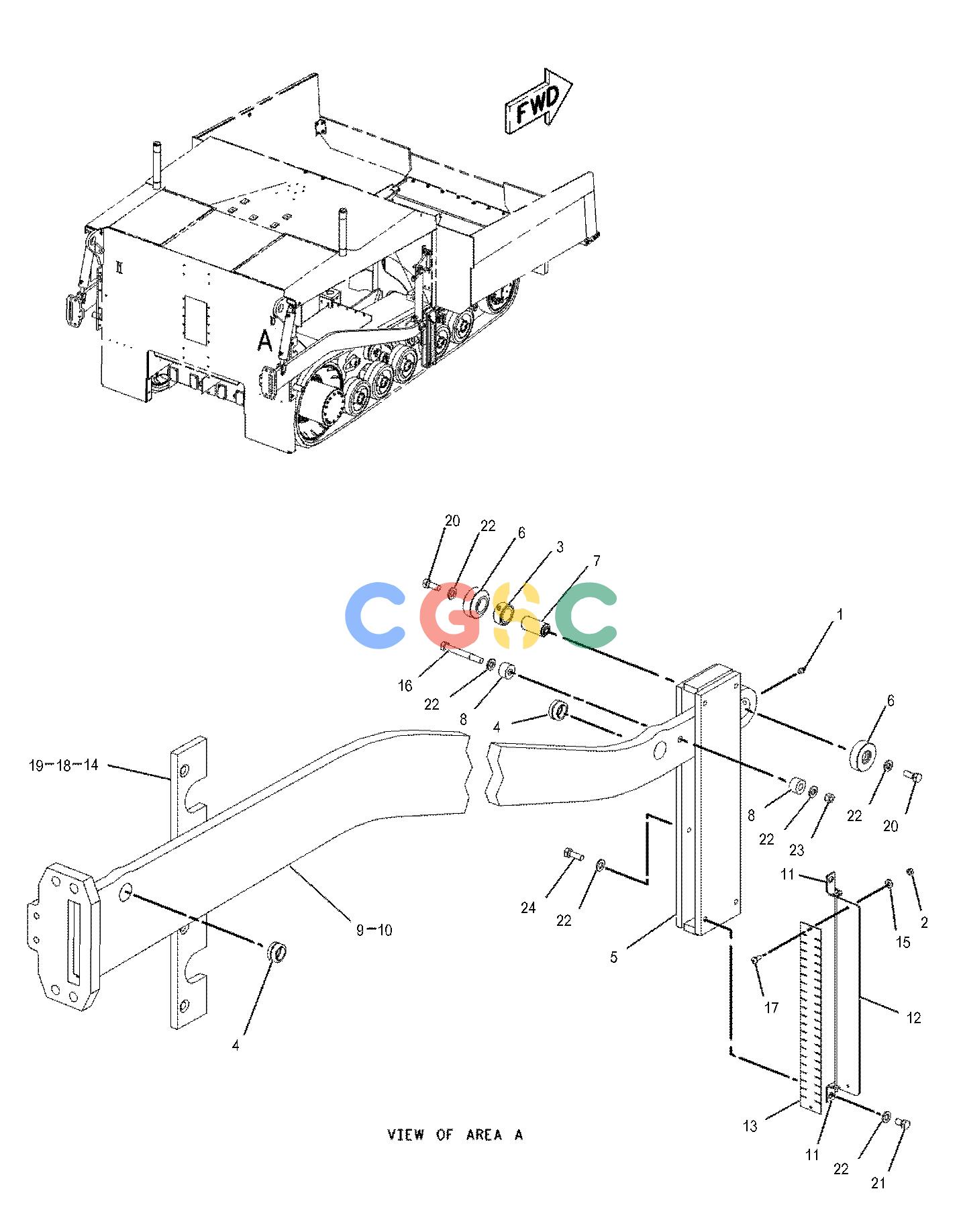

卡特零件查询（AP-655C） 194-8190: ARM GP-TOW
广数供应链运营团队, 16 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 3. | 9W-2401 | [2] | BEARING-ALIGNING | |
| 4. | 005-8639 | [4] | BEARING-ALIGNING | |
| 5. | 194-3852 | [2] | SUPPORT AS | |
| 6. | 194-4519 | [4] | ROLLER | |
| 7. | 194-4520 | [2] | SHAFT | |
| 8. | 194-4521 | [4] | SPACER(14X31.8X19-MM THK) | |
| 9. | 194-4522 | [1] | ARM AS(LH) | |
| 10. | 194-4523 | [1] | ARM AS(RH) | |
| 11. | 194-8183 | [4] | PLATE | |
| 12. | 194-8186 | [2] | PLATE AS | |
| 13. | 197-4056 | [2] | PLATE | |
| 14. | 200-3867 | [2] | SPACER | |
| 15. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 16. | 7X-2549M | [2] | BOLT(M12X1.75X100-MM) | |
| 17. | 7Y-7388M | [4] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 18. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 20. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 21. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 22. | 8T-4223 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 24. | 8T-4956M | [8] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
