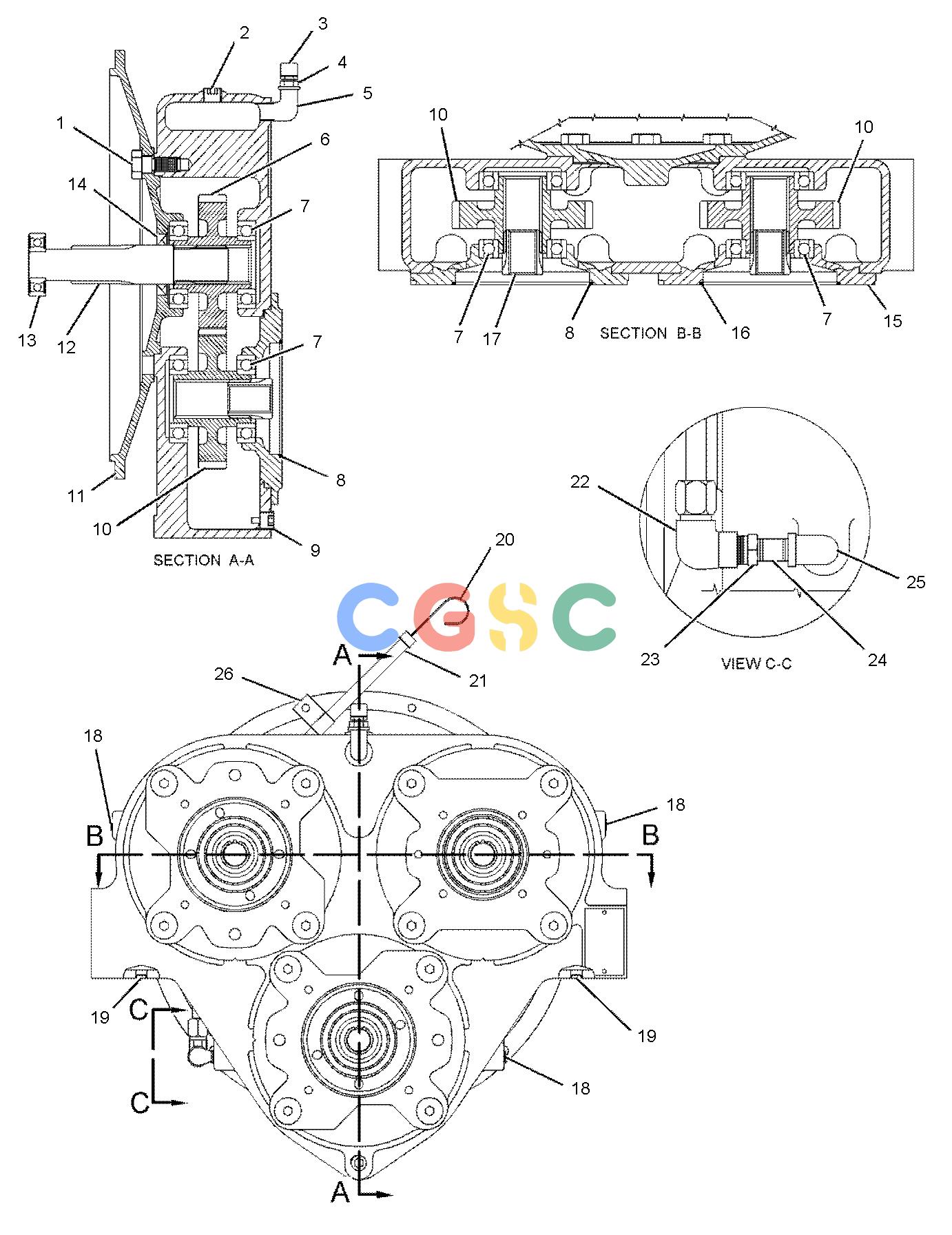

卡特零件查询（AP-655C） 245-0525: DRIVE GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
983 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-6814 | [7] | BOLT | |
| 2. | 2B-0858 | [1] | PLUG-PIPE | |
| 3. | 7R-7874 | [1] | BREATHER(PUMP DRIVE) | |
| 4. | 6B-5072 | [1] | ADAPTER | |
| 5. | 002-6453 | [1] | ELBOW | |
| 6. | 8C-2323 | [1] | GEAR | |
| 7. | 2D-5658 | [8] | BALL BEARING | |
| 8. | 5F-3144 | [2] | SEAL-O-RING | |
| 9. | 7X-5867 | [1] | PLUG | |
| 10. | 081-7090 | [3] | GEAR | |
| 11. | 7X-5870 | [1] | COVER | |
| 12. | 123-6562 | [1] | SHAFT-DRIVE | |
| 13. | 6V-1394 | [1] | BALL BEARING | |
| 14. | 131-2163 | [1] | SEAL | |
| 15. | 117-1694 | [1] | ADAPTER-PUMP | |
| 16. | 1H-6227 | [1] | SEAL-O-RING | |
| 17. | 078-0613 | [1] | SLEEVE | |
| 18. | 8T-6763 | [3] | PLUG-PIPE(1/4-18-THD) | |
| 19. | 5E-8878 | [2] | PLUG | |
| 20. | 263-7335 | [1] | GAUGE-OIL LEVEL (DIPSTICK) | |
| 21. | 263-7334 | [1] | TUBE | |
| 22. | 154-2560 | [1] | ELBOW-PIPE | |
| 23. | 3B-7722 | [1] | BUSHING-PIPE | |
| 24. | 154-2561 | [1] | NIPPLE-PIPE | |
| 25. | 7J-8611 | [1] | ELBOW-PIPE | |
| 26. | 8M-2770 | [1] | CLIP(LOOP) | |
