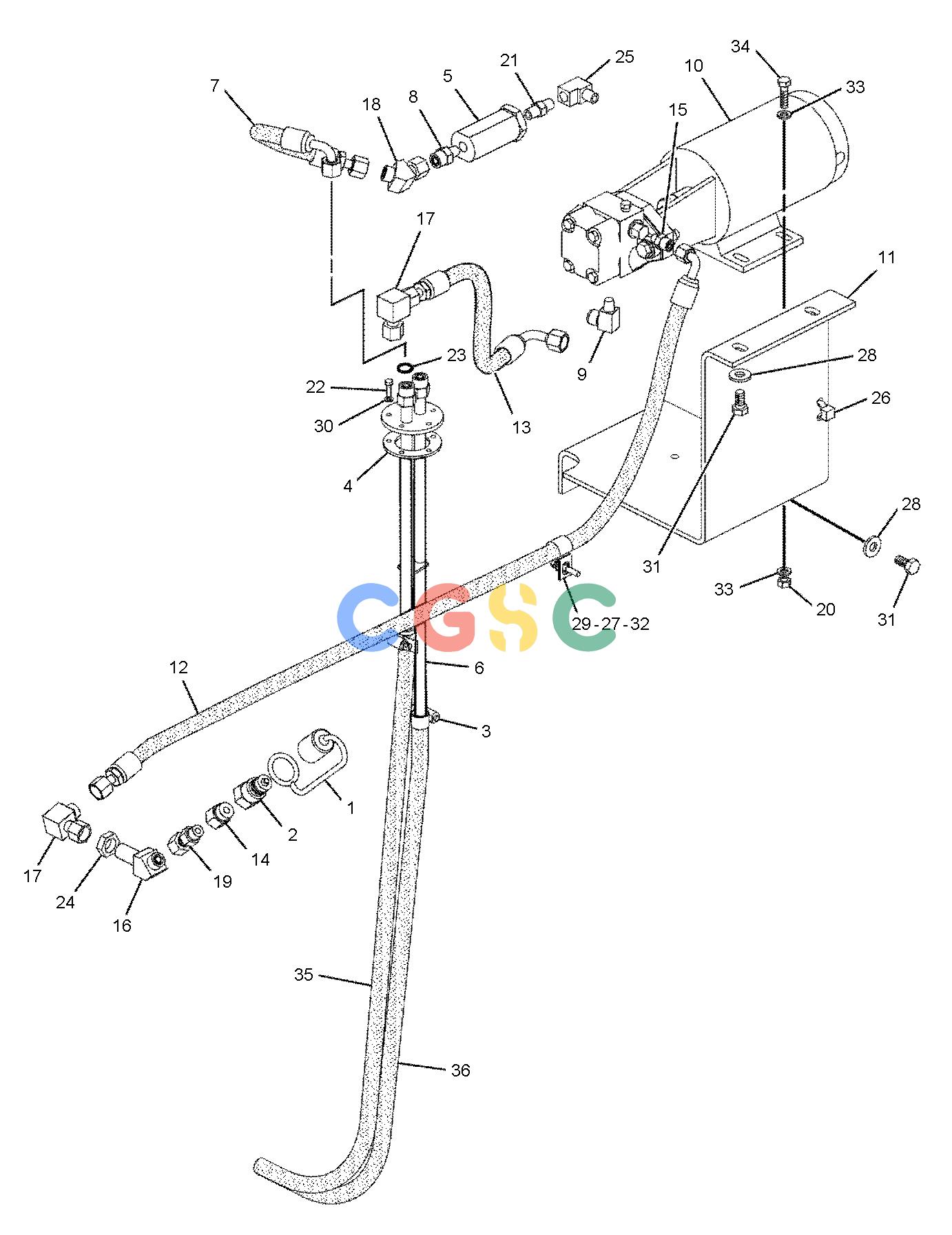

卡特零件查询（AP-655C） 241-8824: PUMP GP-FUEL TRANSFER
广数供应链运营团队, 16 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6302 | [1] | CAP-DUST | |
| 2. | 5R-6306 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 3. | 6S-8620 | [2] | CLAMP-HOSE | |
| 4. | 9R-7240 | [1] | GASKET | |
| 5. | 119-0072 | [1] | FILTER GP-FUEL | |
| | 119-0073 | [1] | FILTER ELEMENT-FUEL | |
| 6. | 144-5339 | [1] | TUBE AS-FUEL | |
| 7. | 155-3973I | [1] | HOSE AS | |
| 8. | 164-5597 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6868 | [1] | CONNECTOR | |
| 9. | 199-6290 | [1] | ELBOW AS | |
| | 2T-2305 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 10. | 201-7598Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 11. | 242-7156 | [1] | BRACKET | |
| 12. | 242-8000I | [1] | HOSE AS | |
| 13. | 242-8001I | [1] | HOSE AS | |
| 14. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 15. | 148-8320 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | CONNECTOR | |
| 16. | 148-8366 | [1] | ELBOW AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8987 | [1] | ELBOW | |
| 17. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 18. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 19. | 150-3070 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7X-3163 | [1] | ADAPTER-SWIVEL | |
| 20. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 21. | 5P-8998 | [1] | FITTING | |
| 22. | 6V-4298M | [5] | BOLT(M5X0.8X16-MM) | |
| 23. | 6V-8397 | [2] | SEAL-O-RING | |
| 24. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 25. | 7J-8611 | [1] | ELBOW-PIPE | |
| 26. | 7K-1181 | [1] | STRAP-CABLE | |
| 27. | 7X-2533M | [1] | BOLT(M6X1X35-MM) | |
| 28. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 29. | 8M-2773 | [1] | CLIP(LOOP) | |
| 30. | 8T-0328 | [5] | WASHER-HARD(5.5X10X1-MM THK) | |
| 31. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 32. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 33. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 34. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 35. | 5P-1518BE | | HOSE(87-CM) | |
| 36. | 5P-1518BE | | HOSE(78-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
