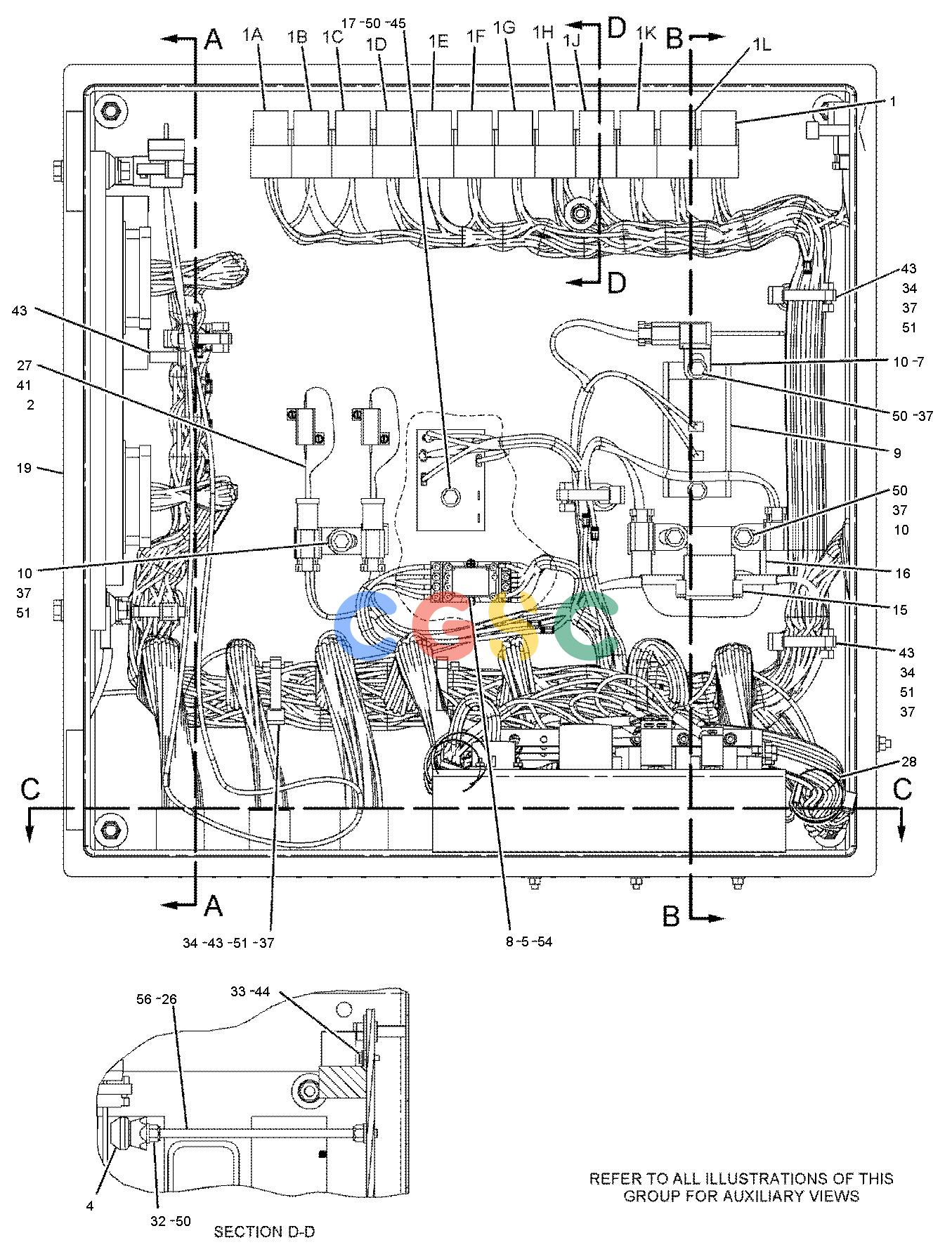

| 1. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 1) | |
| 1A. | 3E-6477 | [1] | RELAY AS(24-VOLT)(GRADE, SLOPE) | |
| 1B. | 3E-6477 | [1] | RELAY AS(24-VOLT)(VIBRATORY) | |
| 1C. | 3E-6477 | [1] | RELAY AS(24-VOLT)(GENERATOR) | |
| 1D. | 3E-6477 | [1] | RELAY AS(24-VOLT)(WORK LIGHTS) | |
| 1E. | 3E-6477 | [1] | RELAY AS(24-VOLT)(THROTTLE 1) | |
| 1F. | 3E-6477 | [1] | RELAY AS(24-VOLT)(THROTTLE 2) | |
| 1G. | 3E-6477 | [1] | RELAY AS(24-VOLT)(FUEL SHUTDOWN) | |
| 1H. | 3E-6477 | [1] | RELAY AS(24-VOLT)(FUEL PUMP) | |
| 1J. | 3E-6477 | [1] | RELAY AS(24-VOLT)(STARTING AID) | |
| 1K. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION SELECT) | |
| 1L. | 3E-6477 | [1] | RELAY AS(24-VOLT)(OPERATOR STATION 2) | |
| 2. | 4I-3038 | [8] | WASHER(3.3X8X0.5-MM THK) | |
| 3. | 5C-2874M | [6] | NUT(M5X0.8-THD) | |
| 4. | 8C-4427 | [1] | PLUNGER | |
| 5. | 8T-5570 | [1] | SOCKET | |
| 6. | 8T-9658 | [4] | SPACER(8.2X12.7X25.4-MM THK) | |
| 7. | 9U-3672 | [1] | PLUG AS | |
| 8. | 105-4684 | [1] | RELAY AS(24-VOLT)(TOWPOINT) | |
| 9. | 108-0358 | [1] | FLASHER AS(24-VOLT) | |
| 10. | 116-0118 | [5] | CLIP | |
| 11. | 127-2419 | [1] | HINGE | |
| 13. | 155-0576 | [8] | MOUNT-ISOLATION | |
| 14. | 161-2355 | [1] | CONTROL GP-UNPROGRAMMED | |
| | 184-2472 | [1] | SCREW-PAN HEAD(8-32X0.375-IN) | |
| | 7X-6315 | [1] | STRAP AS-GROUND | |
| | 134-4126 | [1] | WASHER(4.52X8.28X0.76-MM THK) | |
| 15. | 175-2309 | [1] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| | 5C-2890M | [2] | NUT(M6X1-THD) | |
| | 186-3735 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813BD | | SLEEVE | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 16. | 189-3158 | [6] | SUPPRESSOR-ARC | |
| 17. | 196-9895 | [1] | TIMER AS | |
| 18. | 254-5042Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 19. | 198-7741 | [1] | ENCLOSURE | |
| 20. | 199-6600 | [1] | PLUG AS | |
| 21. | 199-7524 | [1] | SPACER | |
| 22. | 200-3007 | [1] | PLATE | |
| 23. | 203-5954 | [1] | BAR-BUS | |
| 24. | 203-8032 | [1] | PLATE | |
| 25. | 227-8671 | [1] | PLATE AS | |
| 26. | 229-1669 | [1] | ROD | |
| 27. | 231-1389 | [2] | RESISTOR AS | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 28. | 246-5400 | [1] | HARNESS AS-PANEL(JUNCTION BOX) | |
| | 9X-1343 | [1] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 155-2270 | [11] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9X-7148 | [2] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 103-0213 | [4] | RECEPTACLE AS-CONNECTOR(70-PIN) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 7T-6365 | [12] | HOUSING-RECEPTACLE | |
| | 8T-8737 | [115] | PLUG-SEAL | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| 29. | 096-6166 | [28] | WASHER-HARD(4.5X9X1-MM THK) | |
| 30. | 170-5632M | [28] | BOLT(M4X0.7X16-MM) | |
| 31. | 2D-6235 | [1] | LOCKNUT(1/4-20-THD) | |
| 32. | 3E-9865 | [3] | LOCKNUT(1/4-20-THD) | |
| 33. | 4B-4863 | [24] | WASHER(4.7X11X1.2-MM THK) | |
| 34. | 4P-7429 | [9] | CLIP(LADDER) | |
| 35. | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 36. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 37. | 5C-9553M | [13] | BOLT(M6X1X16-MM) | |
| 38. | 6B-4540 | [4] | NUT(4-40-THD) | |
| 39. | 6C-9048M | [4] | NUT(M8X1-THD) | |
| 40. | 6D-3031 | [20] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 41. | 6V-2480 | [8] | SCREW(4-40X0.5-IN) | |
| 42. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 43. | 7K-1181 | [22] | STRAP-CABLE | |
| 44. | 7S-1197 | [4] | SCREW-MACHINE(8-32X0.5-IN) | |
| 45. | 7X-2533M | [1] | BOLT(M6X1X35-MM) | |
| 46. | 7X-2619M | [6] | BOLT(M6X1X10-MM) | |
| 47. | 8T-0325M | [3] | BOLT(M5X0.8X14-MM) | |
| 48. | 8T-0328 | [12] | WASHER-HARD(5.5X10X1-MM THK) | |
| 49. | 8T-0638M | [3] | BOLT(M5X0.8X50-MM) | |
| 50. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 51. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 52. | 8T-6912M | [4] | BOLT(M8X1.25X50-MM) | |
| 53. | 9N-0869 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 54. | 9X-6258 | [2] | SCREW-MACHINE(6-32X0.5-IN) | |
| 55. | 9X-8256 | [16] | WASHER(6.6X12X2-MM THK) | |
| 56. | 125-7875BE | | TUBE-HEAT SHRINK(7.44-MM DIA) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
